Zebra DS6878 User Manual

ZEBRA TECHNOLOGIES
12
INSTRUCTION GUIDE

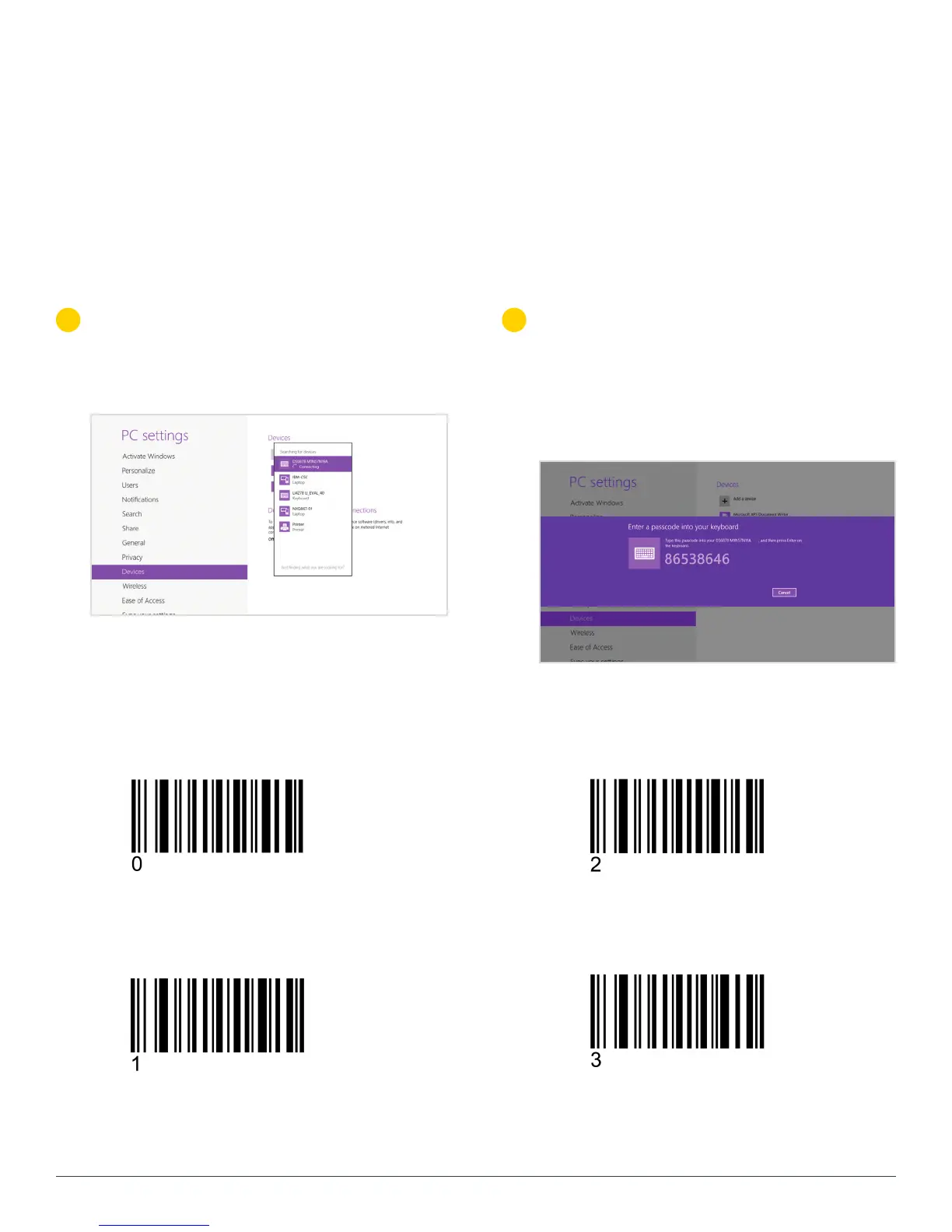

PAIRING THE DS6878 TO A TABLET
A pin code is issued. Scan the pin code
followed by End of Message using the Alpha-
Numeric Keyboard barcodes. When the
pin is complete the scanner emits a short
low beep followed by a short high beep
indicating the successful connection.
7
Scanner is displayed in Devices. Select the
DS6878 from the list of devices displayed.
The serial number of the scanner assists
in identifying the correct device.
6
DS6878 2D IMAGER
PAIRING THE DS6878 TO WINDOWS 8

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
