LI3678 Quick Start Guide 3
Introduction
The LI3678 linear imager combines excellent scanning performance and advanced ergonomics to provide the best
value in a lightweight laser scanner, ensuring comfort and ease of use for extended periods of time.
Features
Cradle
The cradles serve as a charger, radio communication interface, and host communication interface for the LI3678
cordless linear imager scanner. There are two versions of the cradle:
•
The STB3678 cordless cradle sits on a desktop or mounts on a wall, and charges the LI3678 cordless linear
imager scanner. This cradle also provides host communication by receiving scanner data via a Bluetooth radio,
and sending that data to the host through an attached cable. An external power supply or a powered host cable
charges the linear imager scanner.
•
The FLB3678 cordless cradle charges the LI3678 cordless linear imager scanner, and provides host
communication by receiving scanner data via a Bluetooth radio, and sending that data to the host through an
attached cable. The cradle attaches to a mounting bracket using three isolators, and the bracket then mounts on
the forklift surface. A portable power supply on the forklift provides power to the cradle.
DO NOT use cradles and cables designed for the LS3578 and DS3578 scanners as they are not compatible with the
LI3678 linear imager scanner.
For more information about mounting options and procedures, refer to the documentation included with the cradle.
NOTE For more information about communication between the linear imager scanner, cradle, and host, see
Chapter 4, Radio Communications.

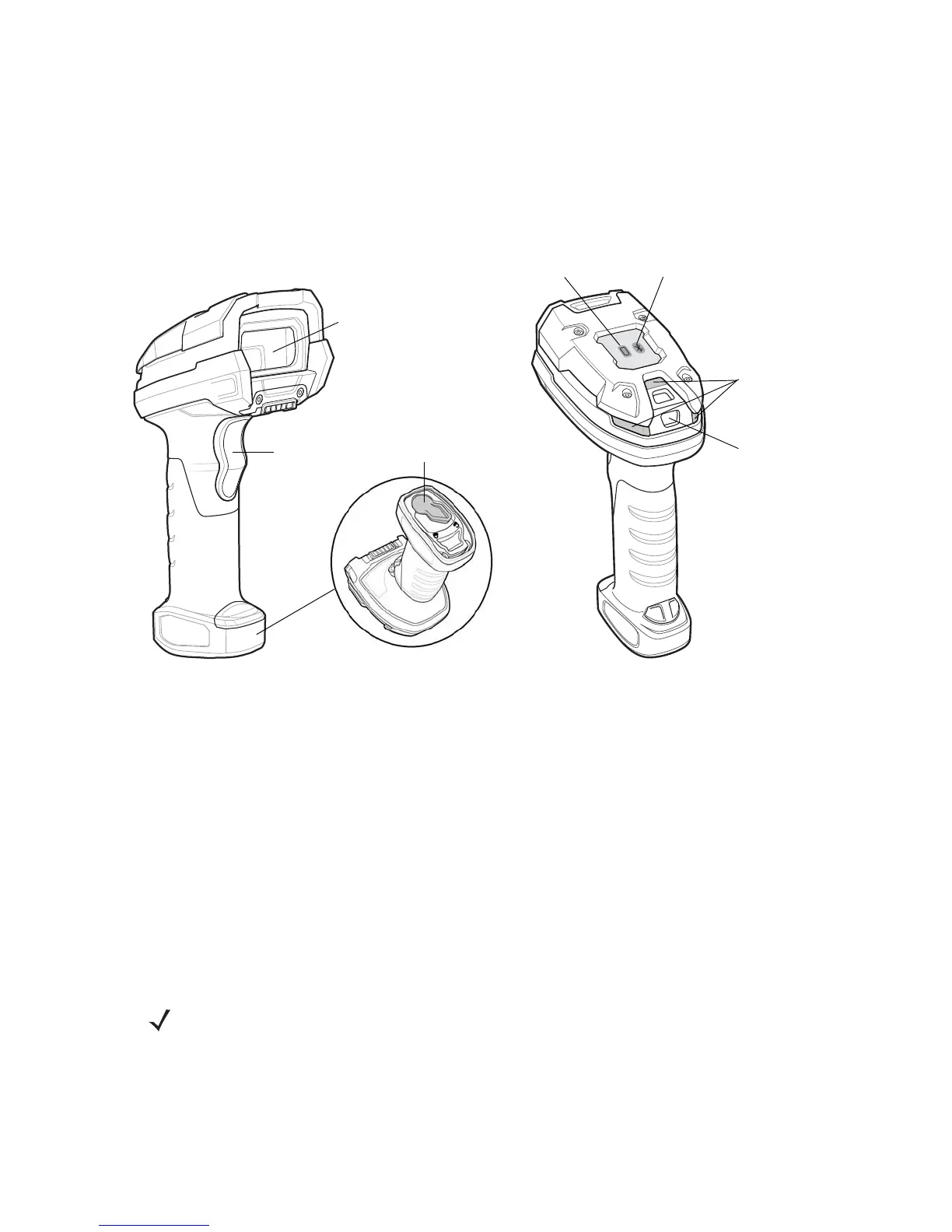

Beeper
LEDs
Trigger
Scan Window
Battery LED
Radio LED
Battery Latch
Draft 1_Not for Distribution
