Zebra LI3678 - Inserting Scanner into Cradle

8 LI3678 Quick Start Guide
Inserting the Scanner in the Cradle
To insert the linear imager scanner in the cradle:
1. Insert the linear imager scanner into the cradle top first.
2. Push the handle until it clicks into place, engaging the contacts in the cradle and linear imager scanner.

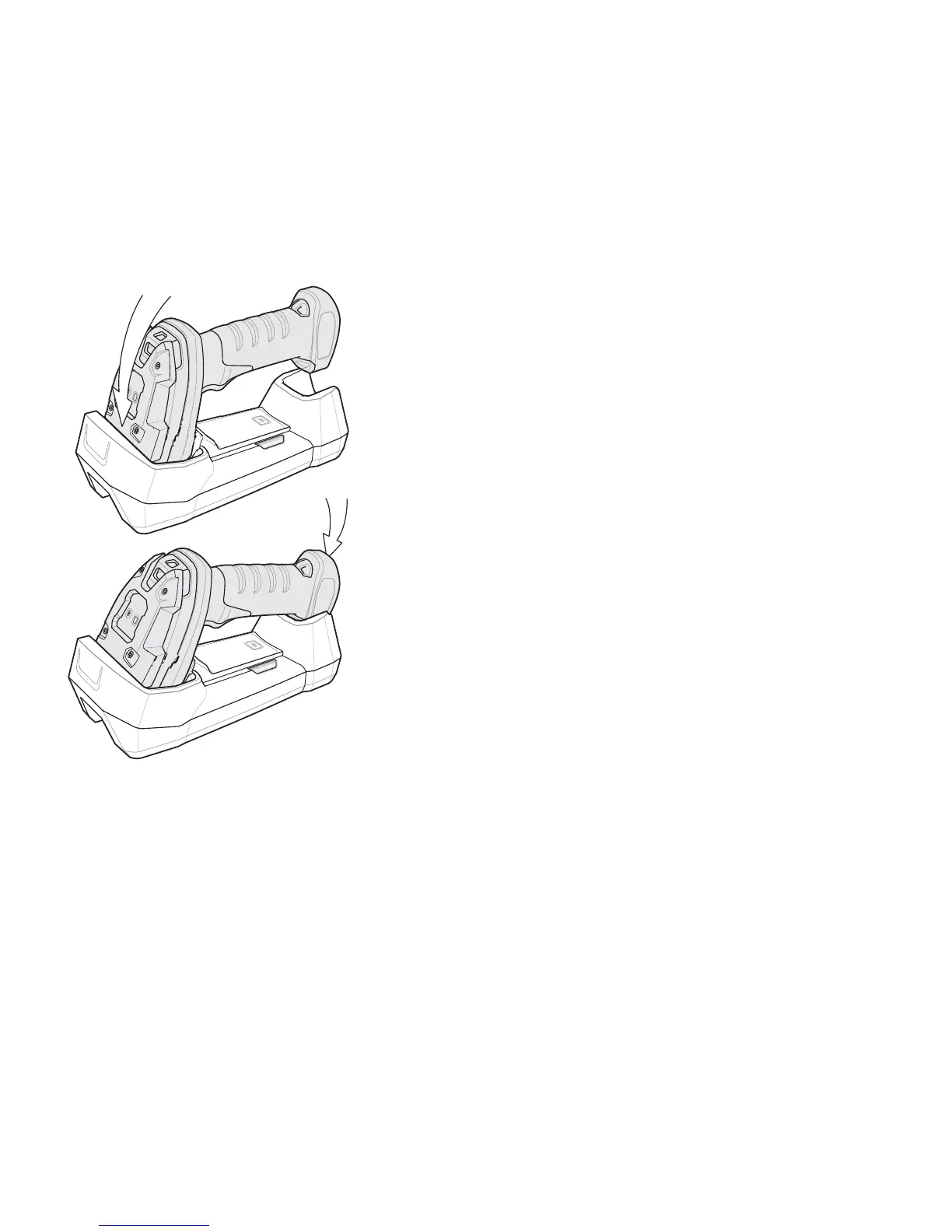

Figure 1-5 Inserting the Scanner in the Cradle
Draft 1_Not for Distribution
