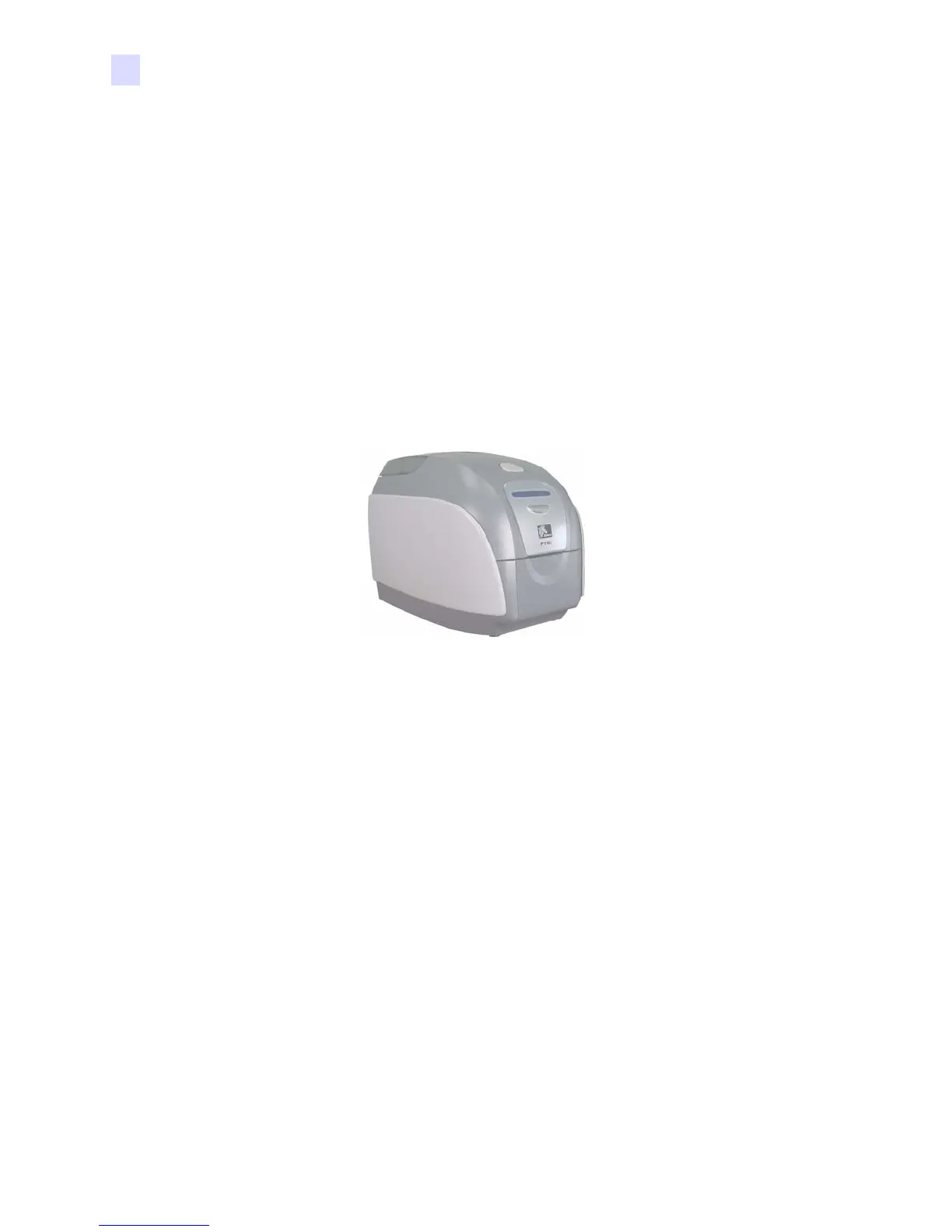

Zebra P110 User Manual

ii P110i & P110m Card Printer User’s Manual 980515-001 Rev. C

Zebra P110 Specifications

Printing

print_resolution	300 dpi (11.8 dots/mm)
print_speed	30 seconds per card full-color (P110i) single-sided

Card Specifications

card_width	2.12"/54 mm
card_length	3.38"/86 mm
card_thickness	20 mil (.508 mm) to 40 mil (1.02 mm)
card_feeder_capacity	100 cards (30 mil)
card_output_hopper_capacity	45 cards (30 mil)

Power

voltage	100 ~ 240 Volts AC
frequency	50 ~ 60 Hz
image_memory	8MB

Operating Environment

operating_temperature	60° F/ 15° C to 86° F/ 30° C
operating_humidity	20% to 65% non-condensing
storage_temperature	23° F/-5° C to 158° F/ 70° C
storage_relative_humidity	20% to 70% non-condensing

Weight and Dimensions

width	7.9"/201 mm
depth	12.9"/328 mm
height	9.25"/235 mm
weight	9.5 lbs/4.3 kg
