2 Zebra P330i & P330m Card Printer User’s Manual 980459-001 Rev D
Introduction
Controls, Connectors, and Indicators
Controls, Connectors, and Indicators

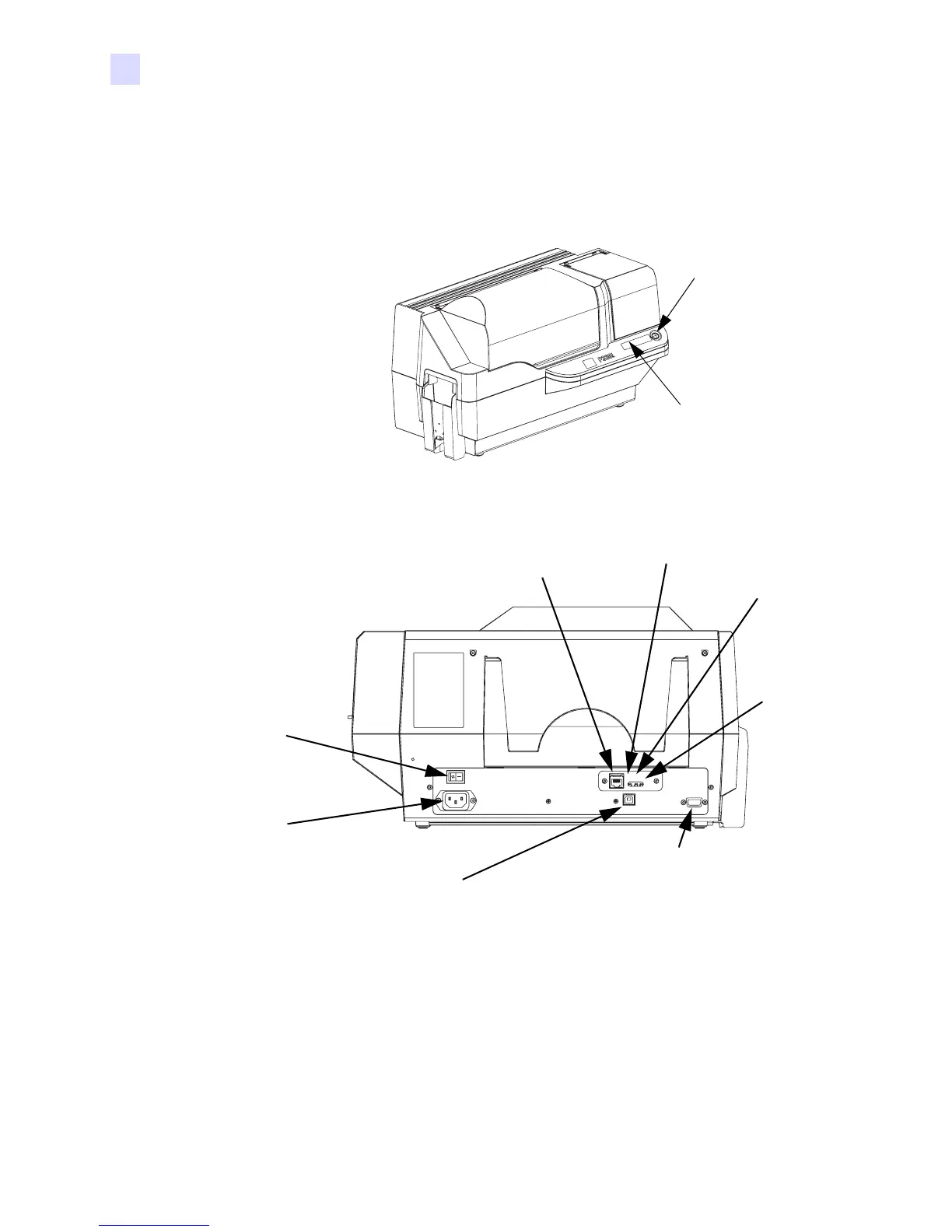

Your printer has an LCD Display Panel and a Panel Button on the front and a power connector,
power switch, and interface connector(s) on the rear panel.
LCD Display
Panel
Panel Button
Power
Switch
Power
Connector
Network
Status /
Activity
LED *
Ethernet
Adapter
Status
LED *
10/100base-T
Connector *
Ethernet Switch *
USB Connector
* These
are on the
optional
Ethernet
Adapter.
Optional DB-9
Connector location
for Smart Card
Contact Station
