58 Zebra P330i & P330m Card Printer User’s Manual 980459-001 Rev D
Smart Card Options
Contact Smart Cards

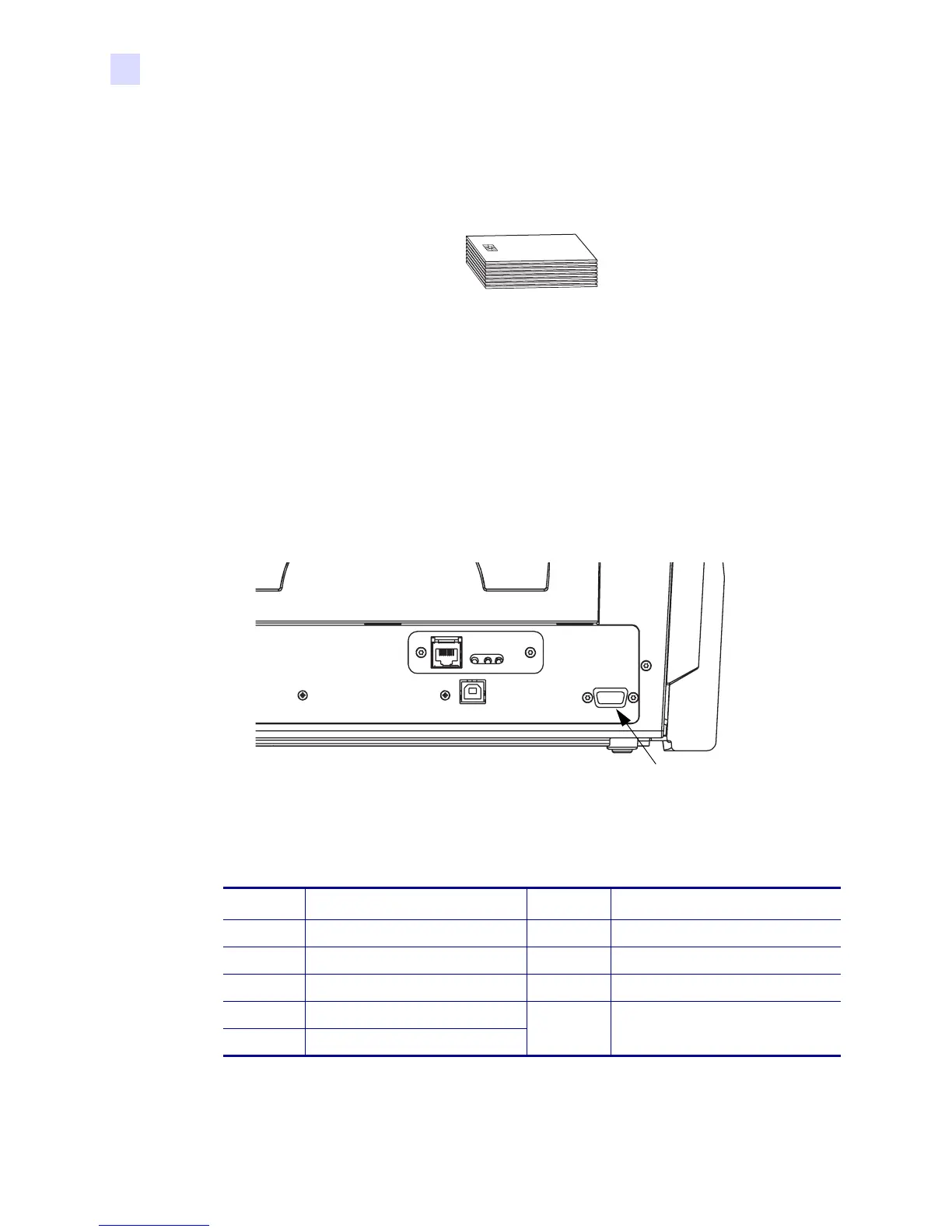

Media Loading Orientation for Contact Smart Cards
Orient the cards with the gold-plated Smart Card contacts at the top surface of the card and
facing to the left.
Printing on Contact Smart Cards
When designing material to be printed on Contact Smart Cards, be sure the printing will not be
on the contact area.
Contact Station Smart Card Interface
When a command to the printer interface sends a card to the Smart Card Contact Station, the
printer connects the Smart Card Contact Station to the female DB-9 connector on the rear of
the printer.
An attached external Smart Card Programmer can be used to program Smart Card chips. The
following table shows the Smart Card Contact Points.
DB-9 Pin Smart Card Contact Points DB-9 Pin Smart Card Contact Points
1
C1 (VCC) 6 C6 (Vpp)
2
C2 (Reset) 7 C7 (I/O)
3
C3 (Clock) 8 C8 (RFU)
4
C4 (RFU)
9 (GND when chip is at station)
5
C5 (GND)
DB-9 Connector location for
Smart Card Contact Station
