Zebra P4T Maintenance Manual

• 1-7 • Introduction •RMAN-P4T-001 rev. A

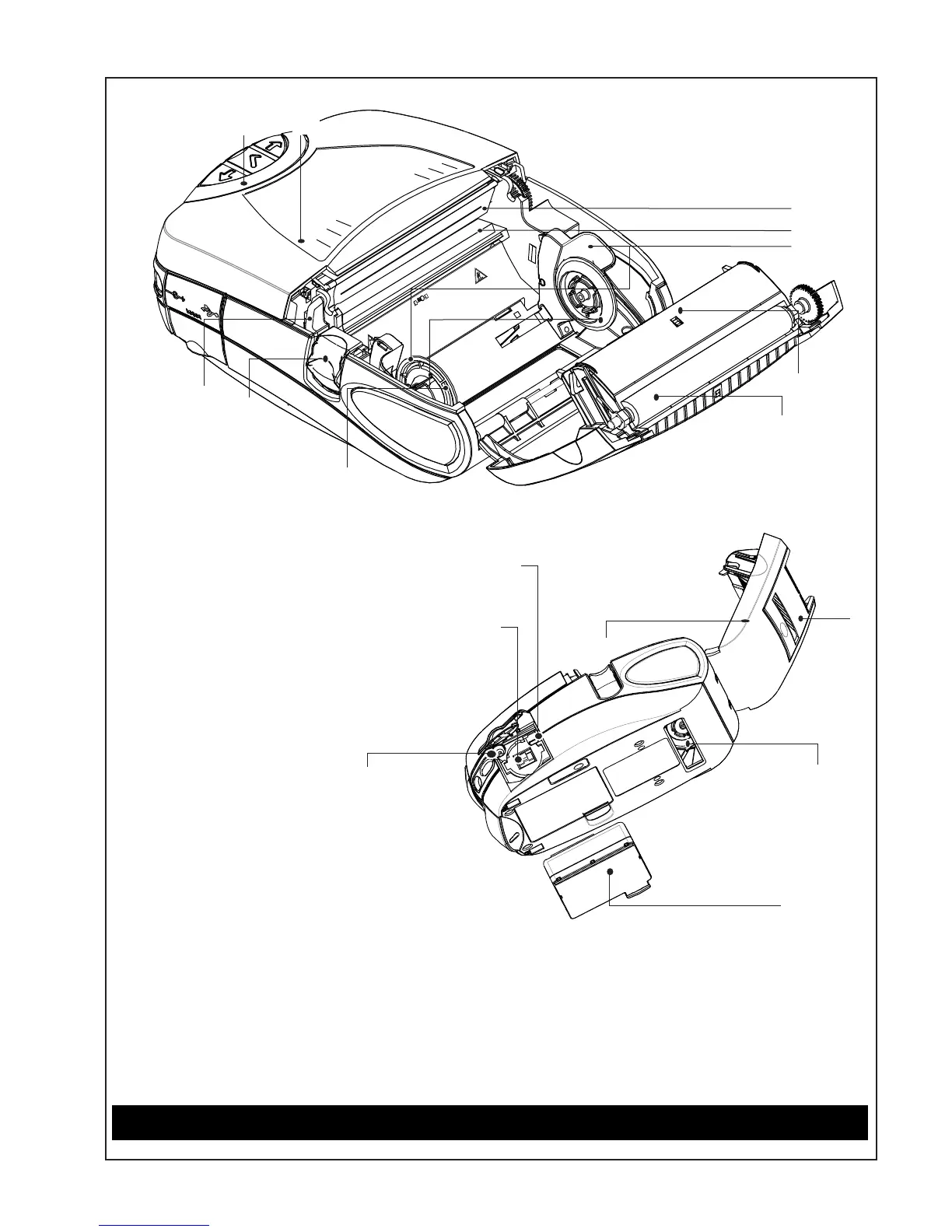

Figure 2 - P4T/rP4T Overview
7
6
8
9
10
1
2
3
5
4
1 Platen Roller
2. Bar Sensor
3. Media Support
4. Printhead
5. RFID Reader/Encoder (RP4T only)
6. Ribbon Cartridge Cover
7. Control Panel
8. Ribbon Cartridge Cover Latch
9. Media Cover Latch
10. Media Support Disks
11. Label Peeler
12. Media Cover
13. External Media Access (optional)
14. Battery
15. Battery Charging Receptacle
16. RS232 Communications Port
17. USB Port
17
16
15
14
13
12
11

Zebra P4T Specifications

General

Color	No
Maximum resolution	203 x 203 DPI
Core diameter	19 mm
Ribbon length	29992.3 m
Media thickness	0.08 - 0.22 mm
Maximum roll diameter	66 mm
Media thickness (imperial)	0.0032 - 0.0085 \
Bluetooth	Yes
Connectivity technology	Wireless
Battery capacity	4200 mAh
Weight (imperial)	2.9 lbs
Dimensions (WxDxH)	165.9 x 85.9 x 220.5 mm
Flash memory	8 MB
Internal memory	16 MB
Built-in barcodes	Code 39, Code 93, MaxiCode, QR Code, UPC-A, UPC-E
Page description languages	CPCL-native, EPL, EPL2, XML, ZPL
Storage temperature (T-T)	-22 - 149 °F
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Package weight	1900 g
