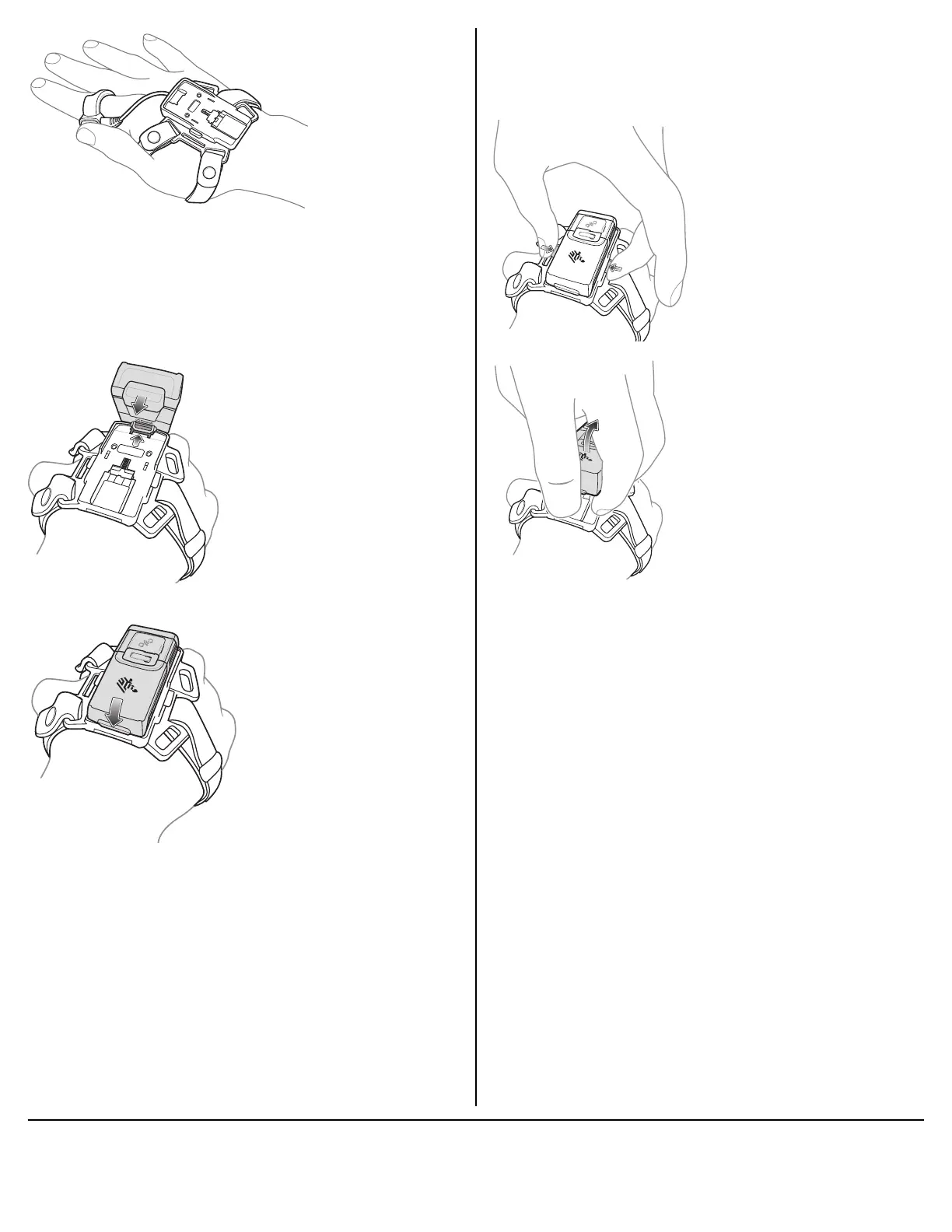

Install RS5100
To install the RS5100 onto the back of hand mount:
1. Align the contacts on the RS5100 assembly with the contacts on the
back of hand mount and engage the slot (located at the top of the
RS5100 on the backside) on the RS5100 with the opening at the top
of the back of hand mount.
2. Push down on the RS5100 to snap into place.
Detach RS5100
To detach the RS5100 from the back of hand mount, press the release
buttons on both sides of the back of hand mount using your thumb and
middle finger, and lift the RS5100 off the back of hand mount using your
index finger.
