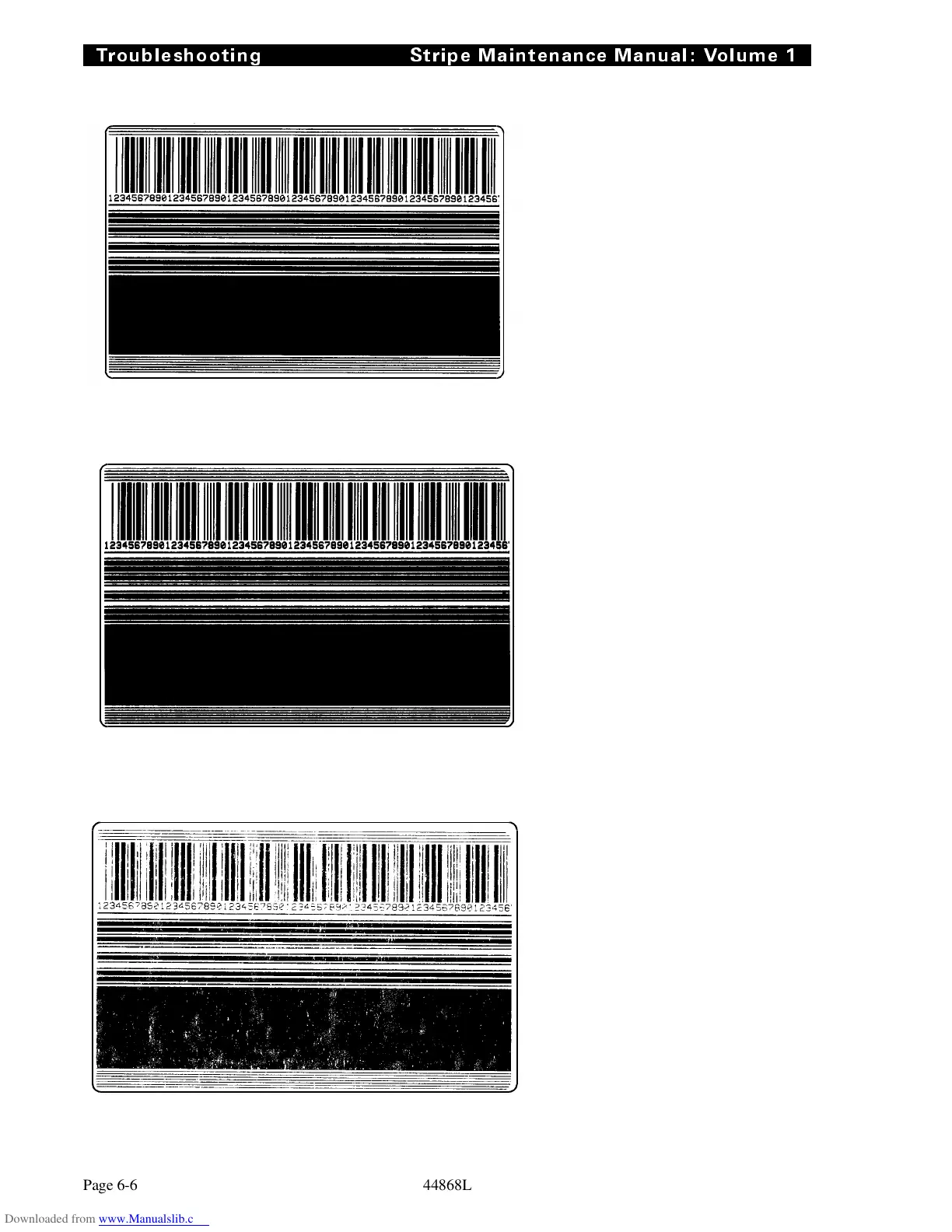

Acceptable Label:
• Darkness properly set
• Printhead positioned
correctly
• Toggles balanced (equal
pressure on left and right
sides)
Unacceptable Label:
• Darkness too high
• Printhead positioned
correctly
• Toggles balanced (equal
pressure on left and right
sides)
Unacceptable Label:
• Darkness low
• Printhead positioned
correctly
• Toggles balanced (equal
pressure on left and right
sides)
Troubleshooting Stripe Maintenance Manual: Volume 1
Page 6-6 44868L
