Getting Started
Loading Transfer Ribbon
20
980643-001 Rev. A TLP 2824 Plus™ User Guide 3/31/09

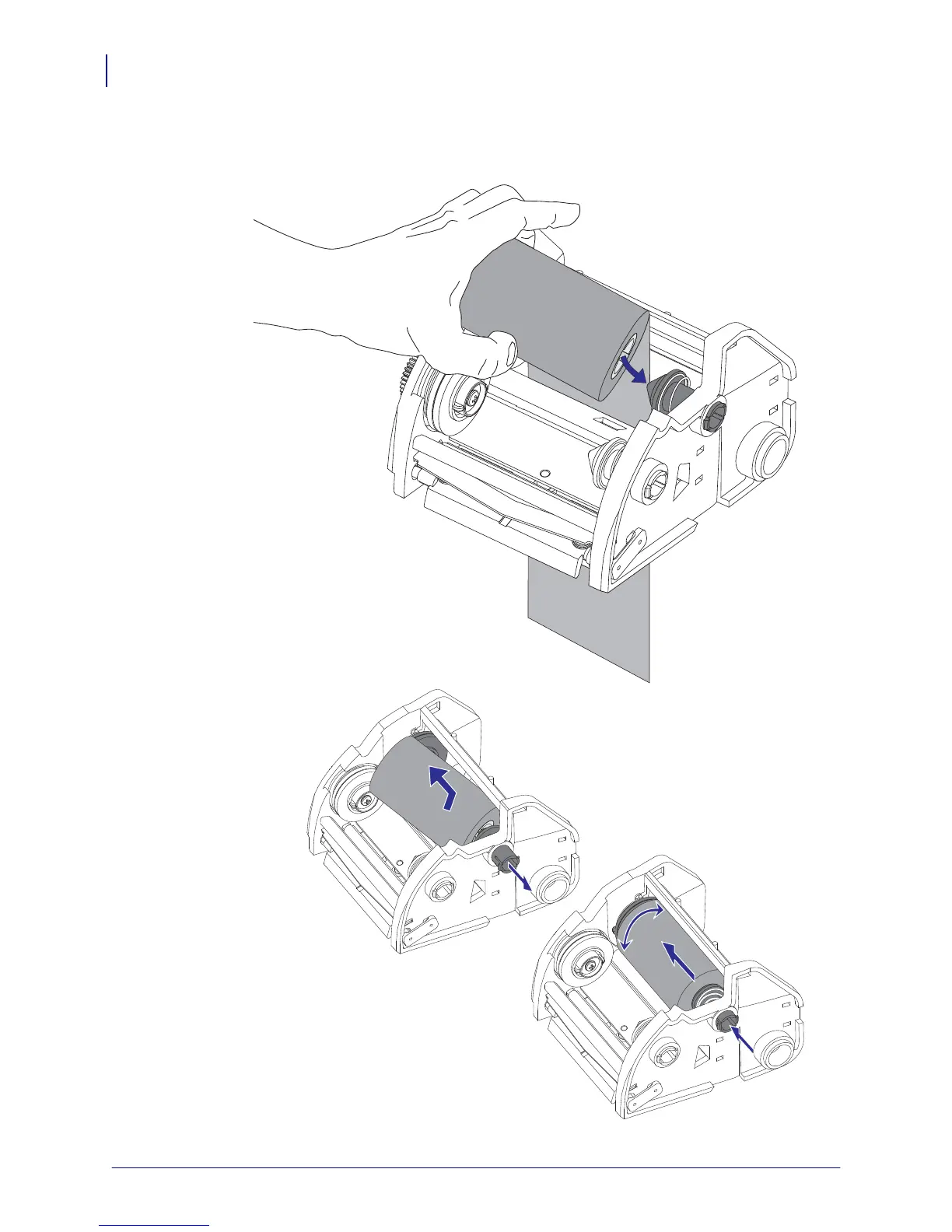

2. First slide the ribbon roll onto the right hand supply spindle. Push the right spindle in and
swing the left side of the ribbon roll onto the left side ribbon spindle. Rotate the ribbon roll
on the left spindle till it locks the ribbon roll’s core notches onto the spindle.
Rotate the roll until the not che s al ign and l ock int o the l ef t side of the s upply hub.
1
2
3
4
