21
Getting Started
Loading Transfer Ribbon
3/31/09 TLP 2824 Plus™ User Guide 980643-001 Rev. A

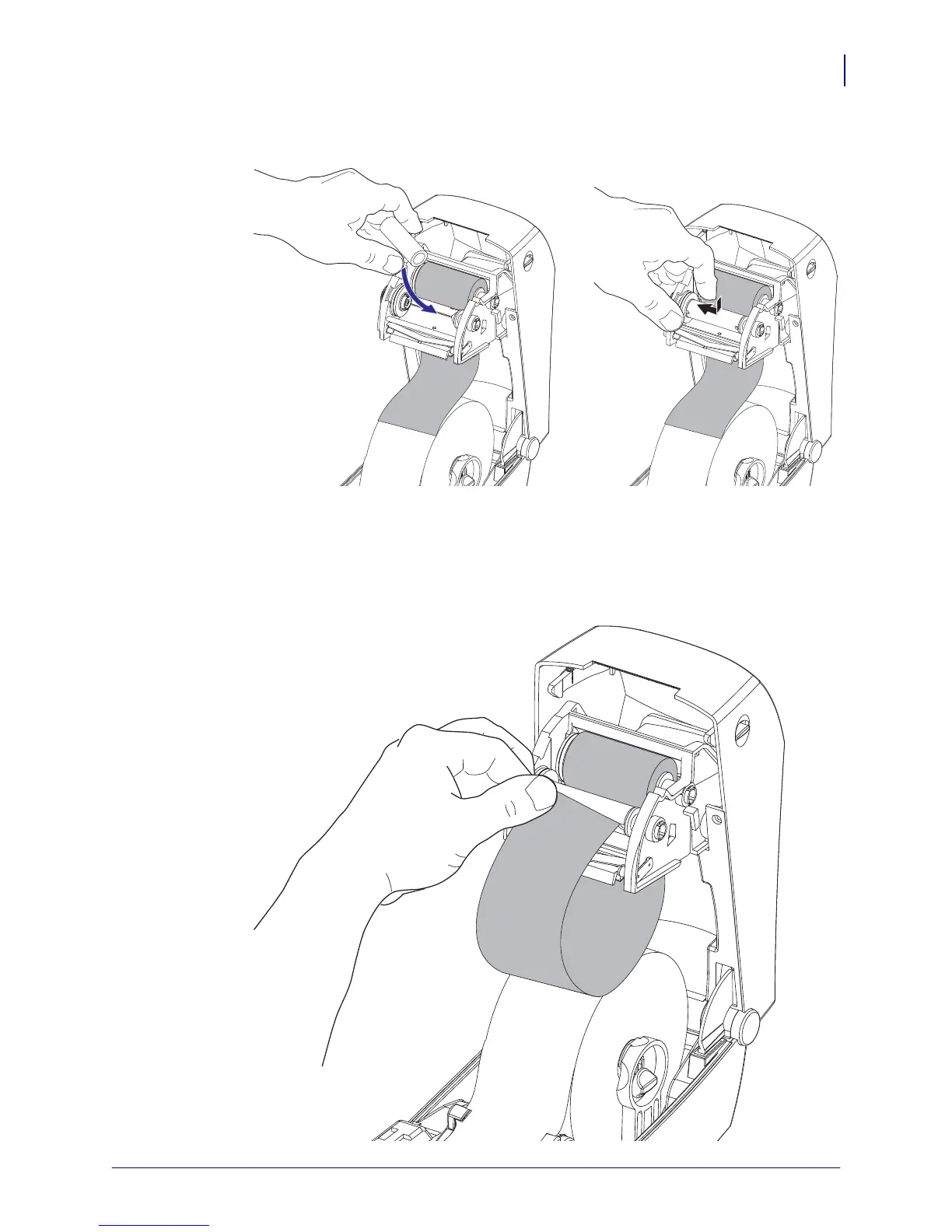

3. Place an empty ribbon core on printer’s take-up spindles. Rotate the ribbon core until the
notches align and lock into the left side of the take-up hub.
You can find your first ribbon take-up core in the packing box. Subsequently, use the
empty supply core to take up the next roll of ribbon.
4. Pull the transfer ribbon’s leader around from below the ribbon frame. Attach it with the
adhesive strip on the leader to the empty ribbon core on the supply spindle. Center the
ribbon on the ribbon core.
