Load Media
Remove Used Ribbon

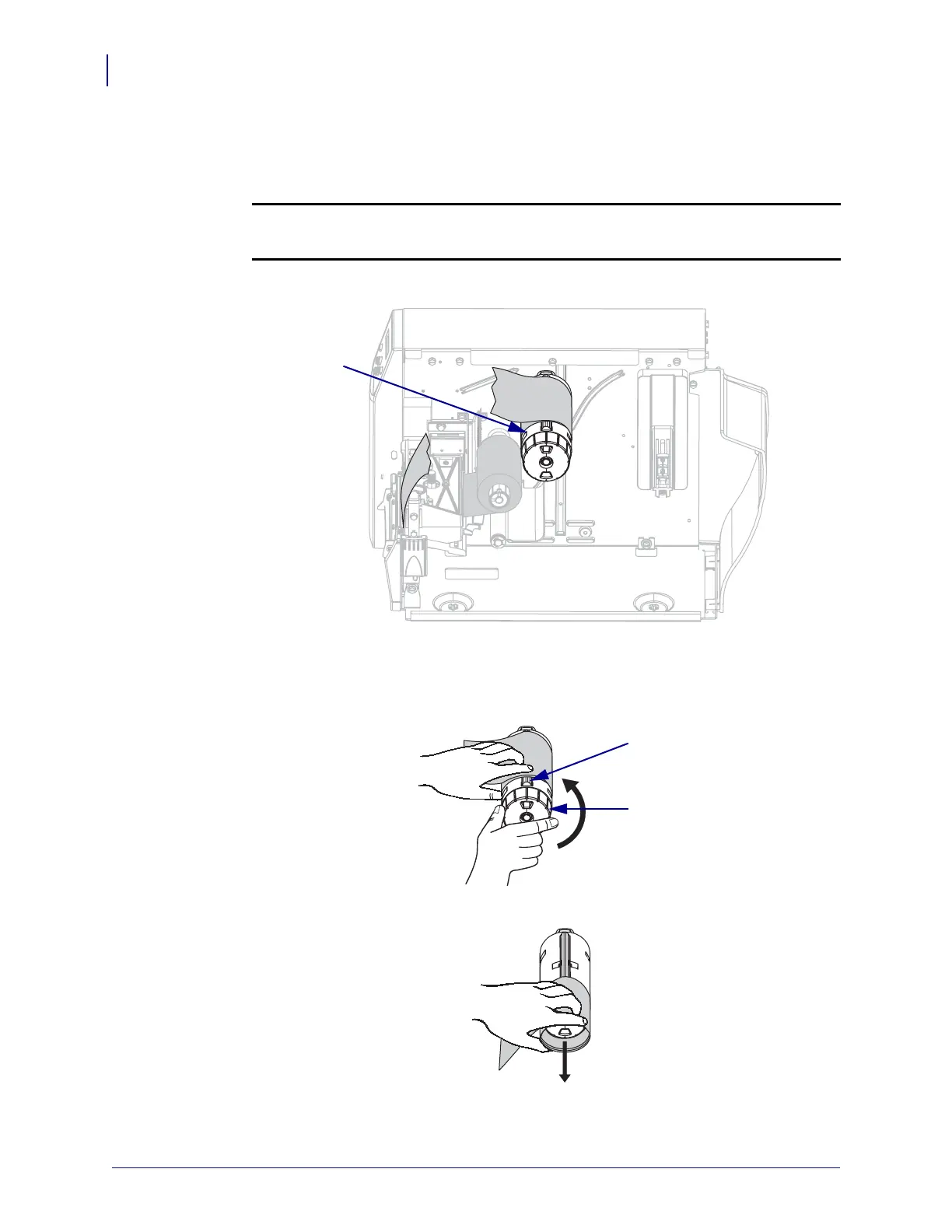

To remove used ribbon, complete these steps:
1.
Caution • Do not cut the ribbon directly on the ribbon take-up spindle. Doing so may
damage the spindle.
If the ribbon has not run out, cut or break it before the ribbon take-up spindle (1).
1
2.
To loosen the ribbon, squeeze it against the ribbon take-up spindle tension blades (1). At
the same time, turn the ribbon take-up spindle release knob counterclockwise (
2).
The tension blades collapse into the ribbon take-up spindle, loosening the ribbon.
1
2
3. Slide the used ribbon off of the ribbon take-up spindle and discard.
14022L-002 Rev. A Z4Mplus/Z6Mplus/R4Mplus Quick Reference Guide 7/6/07

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
