Zebra Z4Mplus Quick Reference Guide

9
Load Media

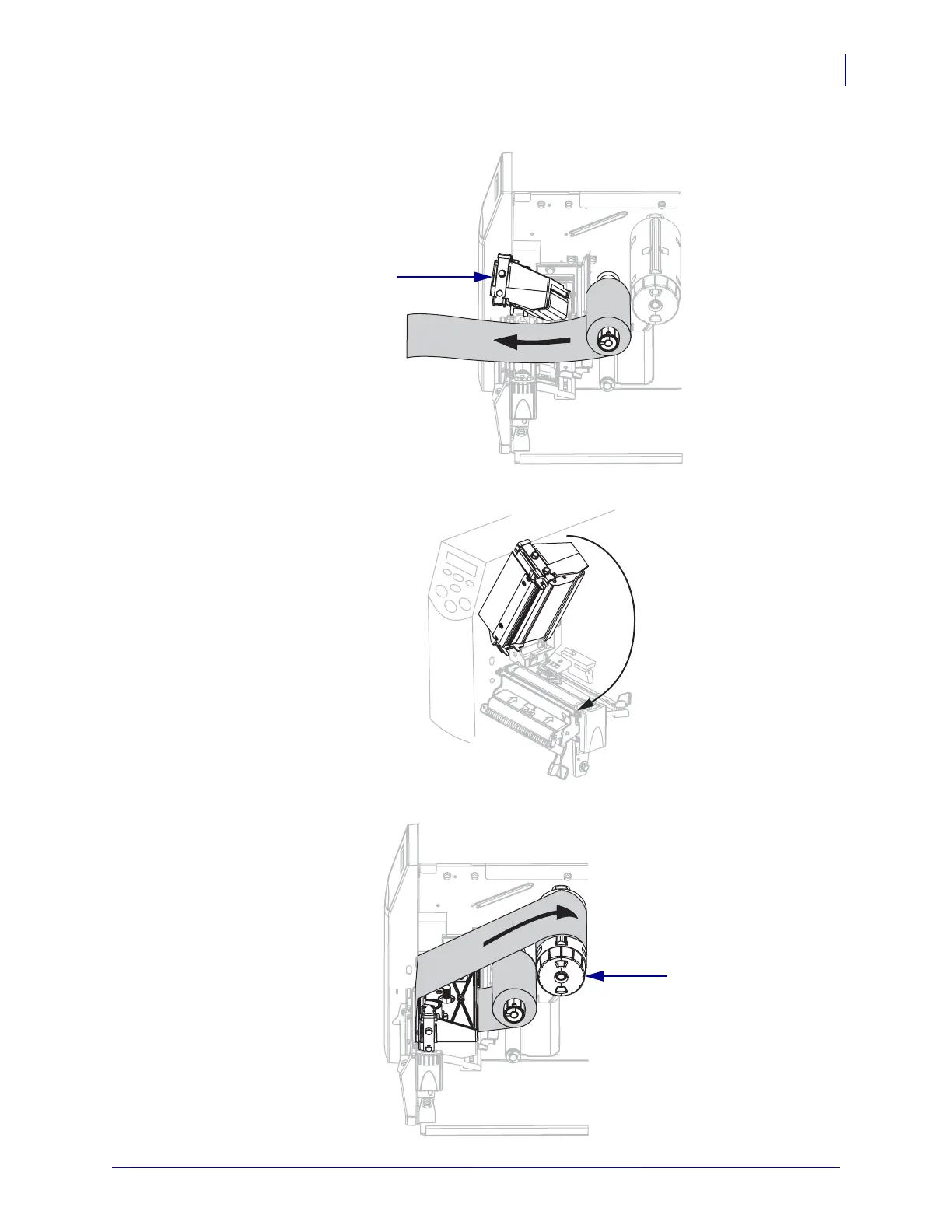

4. Pull the end of the ribbon under the printhead assembly (1 ) and out the front of the printer.
1
5. Close the printhead assembly.
6. Wind the ribbon clockwise onto the ribbon take-up spindle (1).
1
7/6/07 Z4Mplus/Z6Mplus/R4Mplus Quick Reference Guide 14022L-002 Rev. A

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
