8
Load Media
Caution • When you are loading media or ribbon, remove all jewelry that could come into
contact with the printhead or other printer parts.

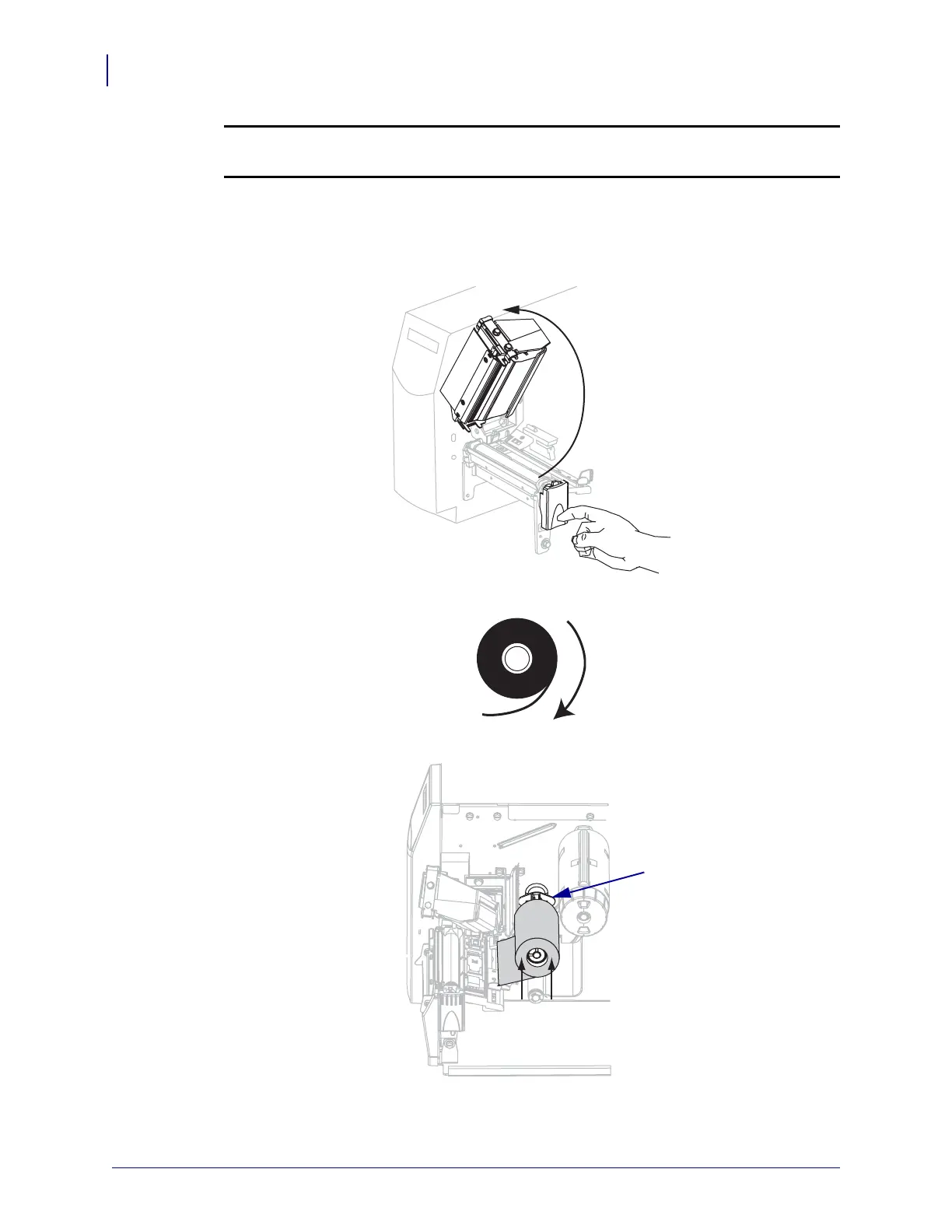

To load ribbon, complete these steps:
1. Press the printhead release latch to open the printhead assembly. Lift the printhead until it
latches open.
2. Orient the ribbon with the loose end unrolling clockwise.
3. Place the roll of ribbon on the ribbon supply spindle (1) and push it all the way back.
1
14022L-002 Rev. A Z4Mplus/Z6Mplus/R4Mplus Quick Reference Guide 7/6/07
