Zebra Z4Mplus - Proprietary Statement; Product Improvements

5
Load Media

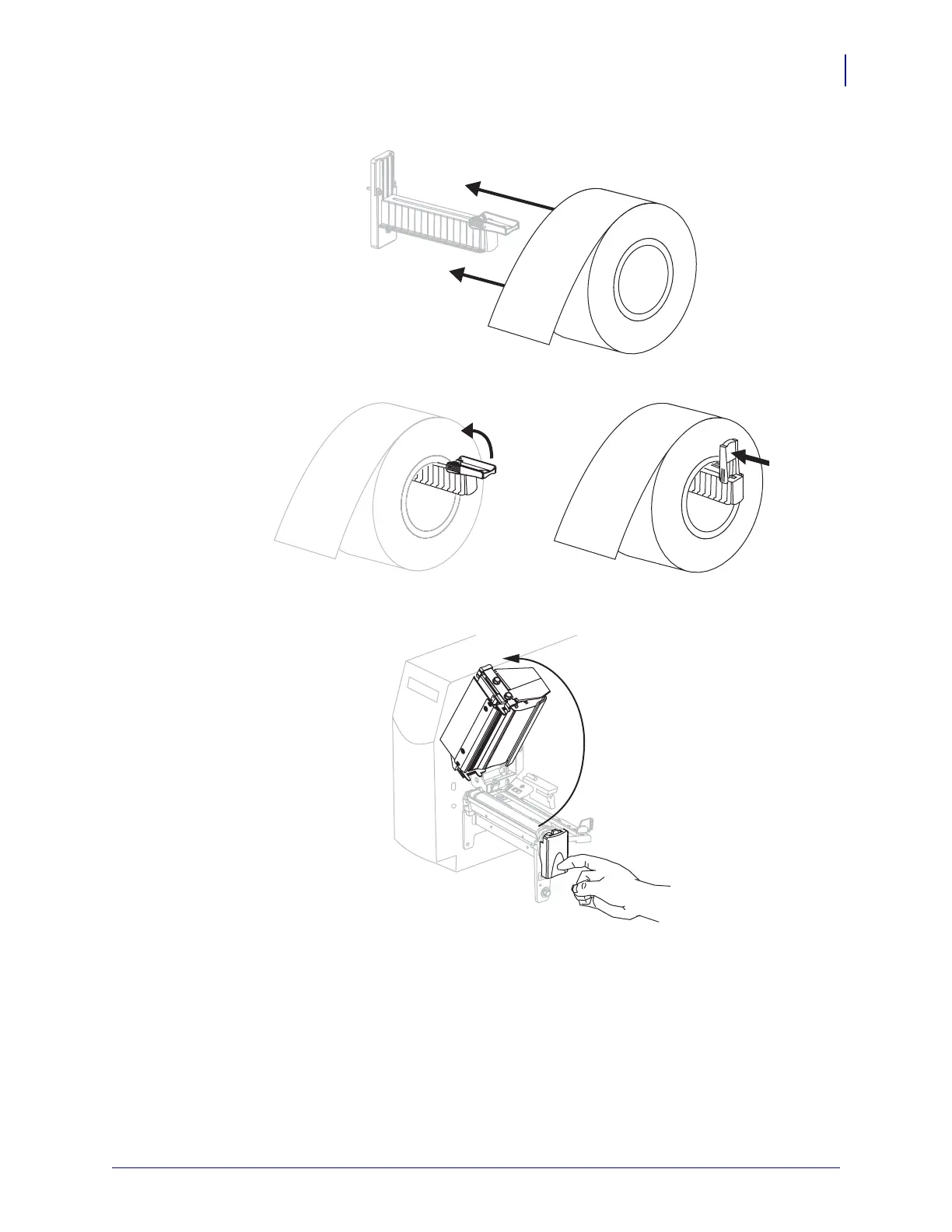

3. Place the roll of media on the media supply hanger. Push the roll as far back as it will go.
4. Flip up the media supply guide, and then slide it in until it touches the edge of the roll.
5. Press the printhead release latch to open the printhead assembly. Lift the printhead until it
latches open.
7/6/07 Z4Mplus/Z6Mplus/R4Mplus Quick Reference Guide 14022L-002 Rev. A
