ISO Standard Card Dimensions
ISO Standard Card Dimensions

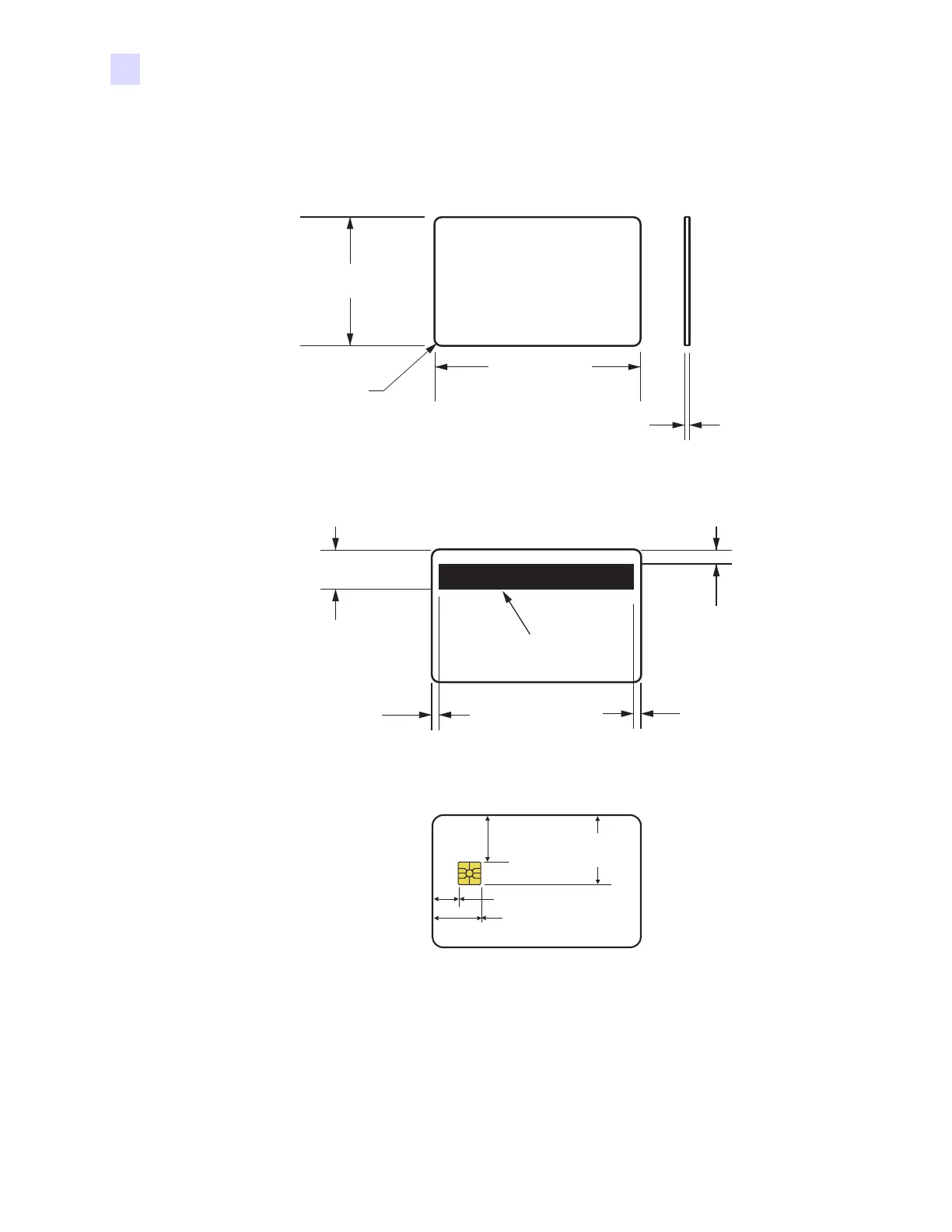

Dimensions for Plain Card ISO Standard 7810
Dimensions for Magnetic Stripe Card ISO Standard 7811
Contact Location for Smart Card ISO Standard 7816
2.125 ± 0.002 in
(53.98 ± 0.050 mm)
Radius
0.125 in
(3.18 mm)
3.375 ± 0.010 in
(85.72 ± 0.25 mm)
0.009 ~ 0.034 in
(0.23 ~ 0.84 mm)
0.623 in (15.82 mm) min
0~0.115 in (2.92 mm) 0~0.115 in (2.92 mm)
MAGNETIC STRIPE
0.218 in (5.54 mm) max
0.403 in (10.25 mm)
0.782 in (19.87 mm)
0.757 in
(19.23 mm)
1.124 in
(28.55 mm)
