Zebra ZXP 7 series User Manual

2: Installation and Setup
Installing the Manual Feed Cleaning Cassette
P1036101-001 Zebra ZXP Series 7 Card Printer User’s Manual 15
Installing the Manual Feed Cleaning Cassette
The Manual Feed Cleaning Cassette cleans the cards entering the Printer from the Manual
Feed Slot. The cassette consists of a frame and an adhesive roller.

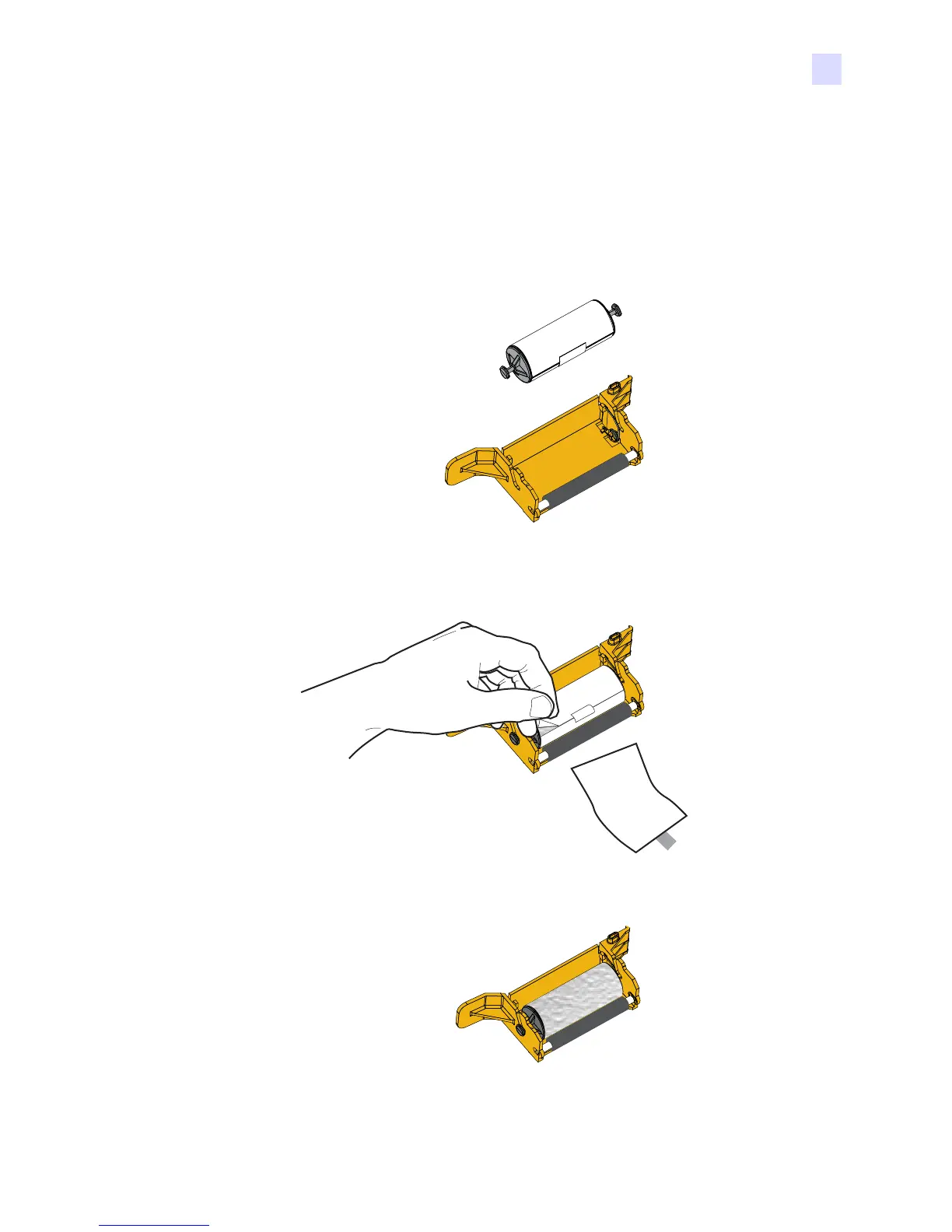

Step 1. Locate the cassette frame and adhesive roller.
Step 2. Insert the adhesive roller into the cassette frame.
Step 3. Peel the protective wrapper from the adhesive roller to expose the sticky surface.
Do not touch the sticky surface.
Step 4. The Manual Feed Cleaning Cassette is ready to use.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
