Zebra ZXP 7 series User Manual

2: Installation and Setup
Loading a Print Ribbon
P1036101-001 Zebra ZXP Series 7 Card Printer User’s Manual 17
Loading a Print Ribbon
The ZXP Series 7 Printer is designed to work only with Zebra True Colours
®
Ribbons in order
to achieve rich, vibrant image production over the full-color spectrum.

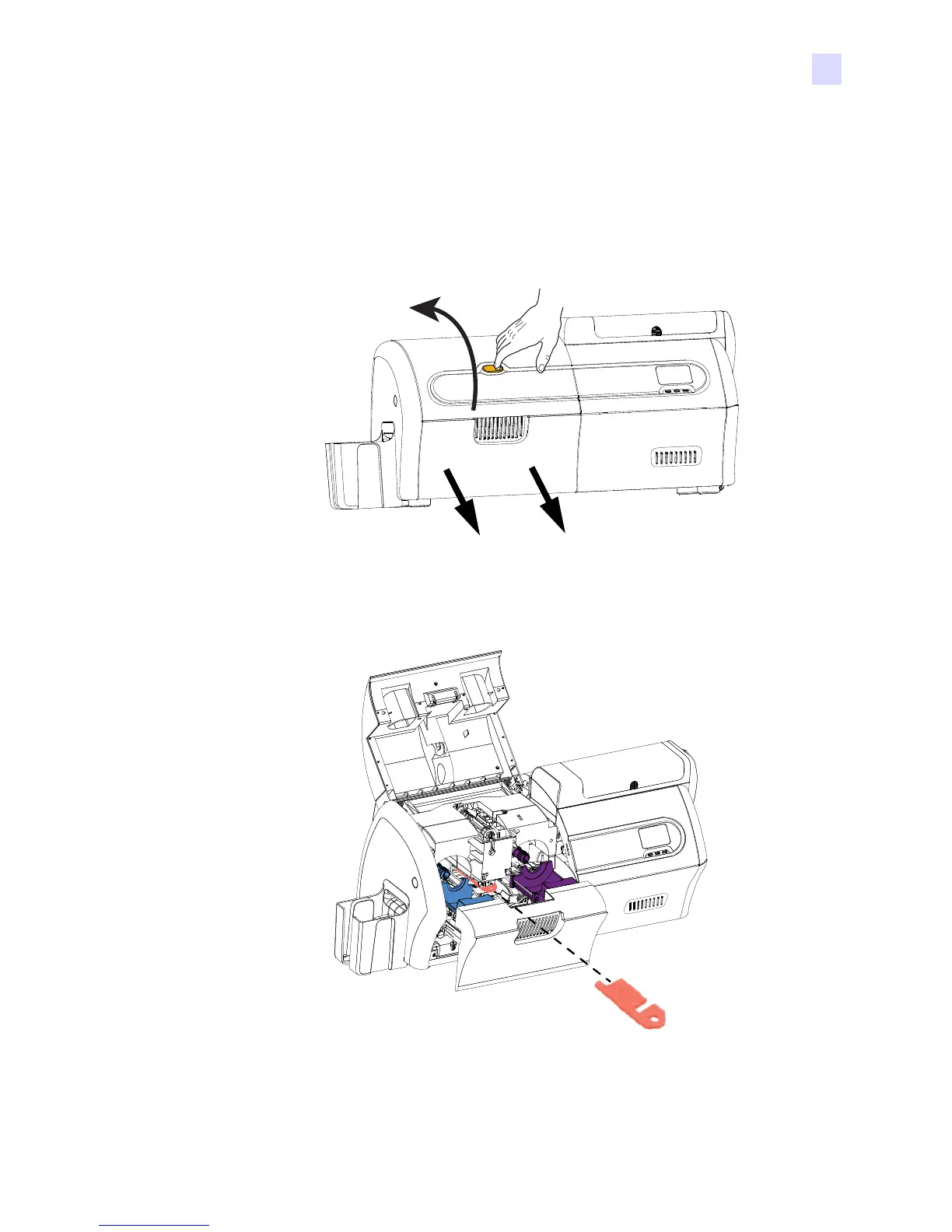

Step 1. Press the Print Cover Release Button.
Step 2. Open the Print Cover.
Step 3. Slide out the Ribbon Drawer until it stops. It is not necessary to remove it.
Step 4. Remove the printhead protective foam, if present.
1
2
3

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
