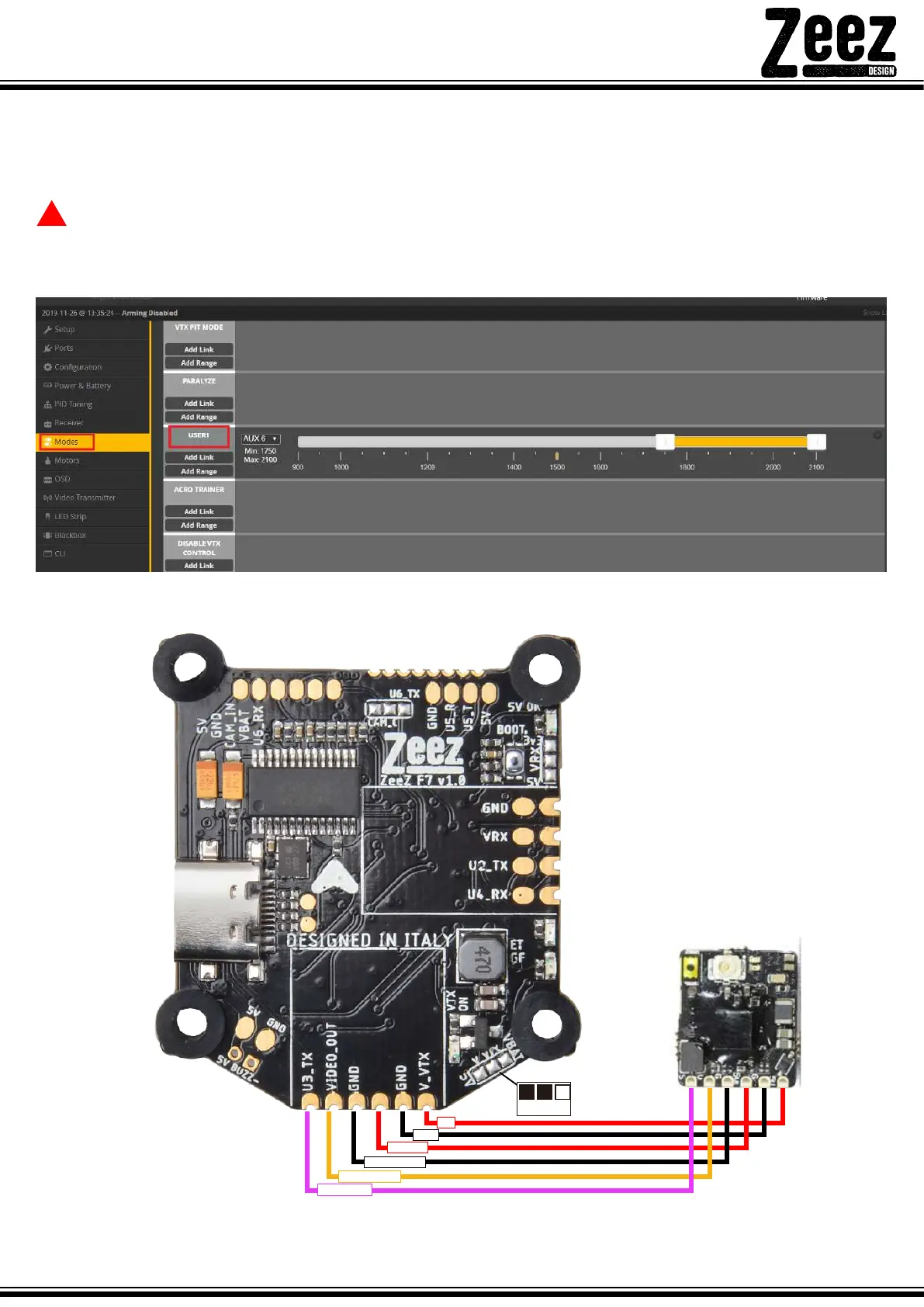

Zeez F7 - VTX configuration; 5 V VTX setup

Assign the AUX you prefer from your radio to turn ON and OFF the VTX from the transmitter from USER1 mode in
BetaFlight. If USER1 is not active the VTX will remain OFF.
Don’t forget to make the solder bridge in the left side of the Solder jumper near the VTX pad to select 5V
as voltage for the VTX
VTX chapter:
5V VTX:
UART3-TX
VIDEO-OUT
VIDEO-GND
5V-OUT
GND
5V
5V
⑽
!
