Zeez F7 User Manual

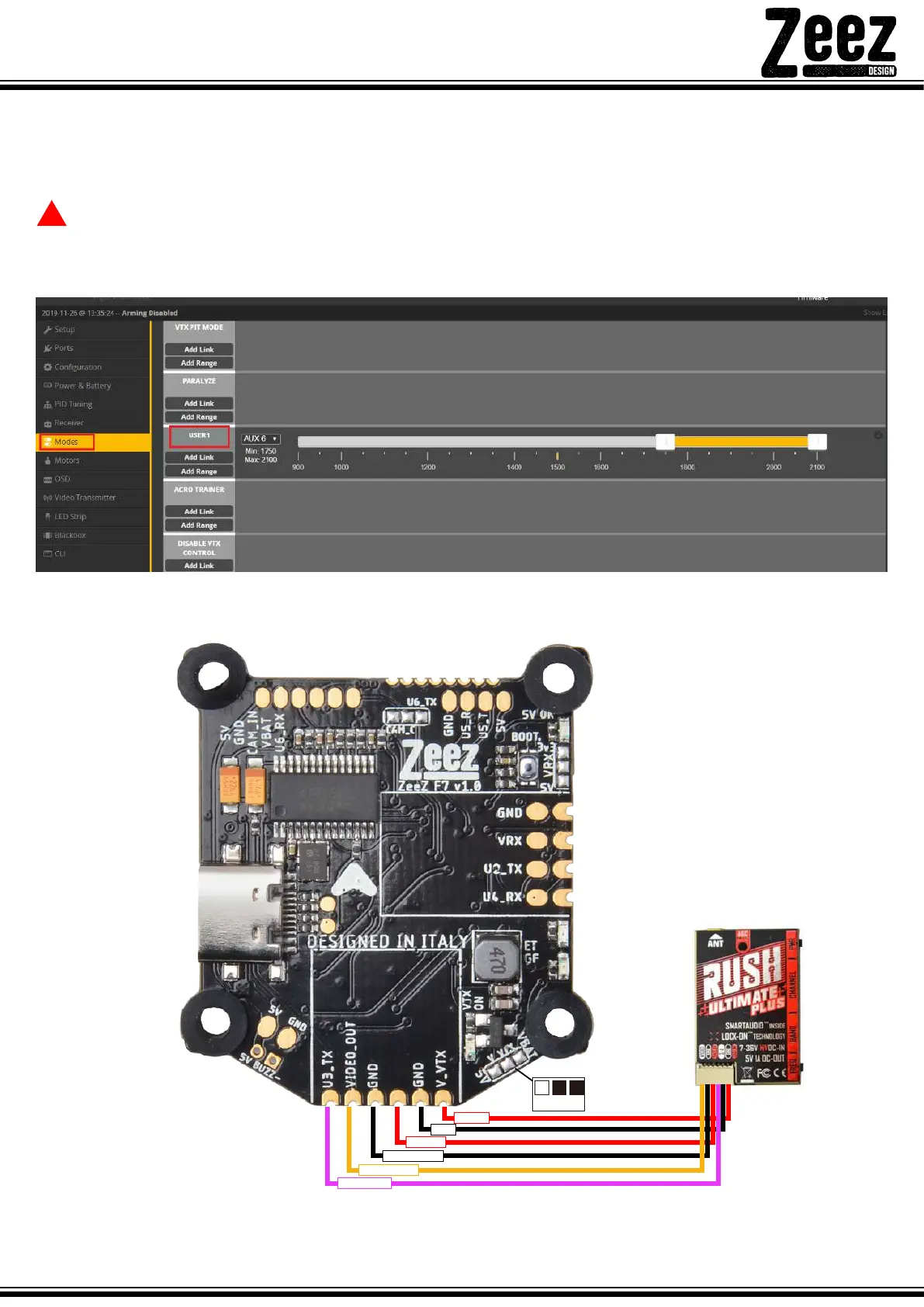

Assign the AUX you prefer from your radio to turn ON and OFF the VTX from the transmitter from USER1 mode in
BetaFlight. If USER1 is not active the VTX will remain OFF.
Don’t forget to make the solder bridge in the right side of the Solder jumper near the VTX pad to select VBAT
as voltage for the VTX
HV VTX:
UART3-TX
VIDEO-OUT
VIDEO-GND
5V-OUT
GND
VBAT+
VBAT
