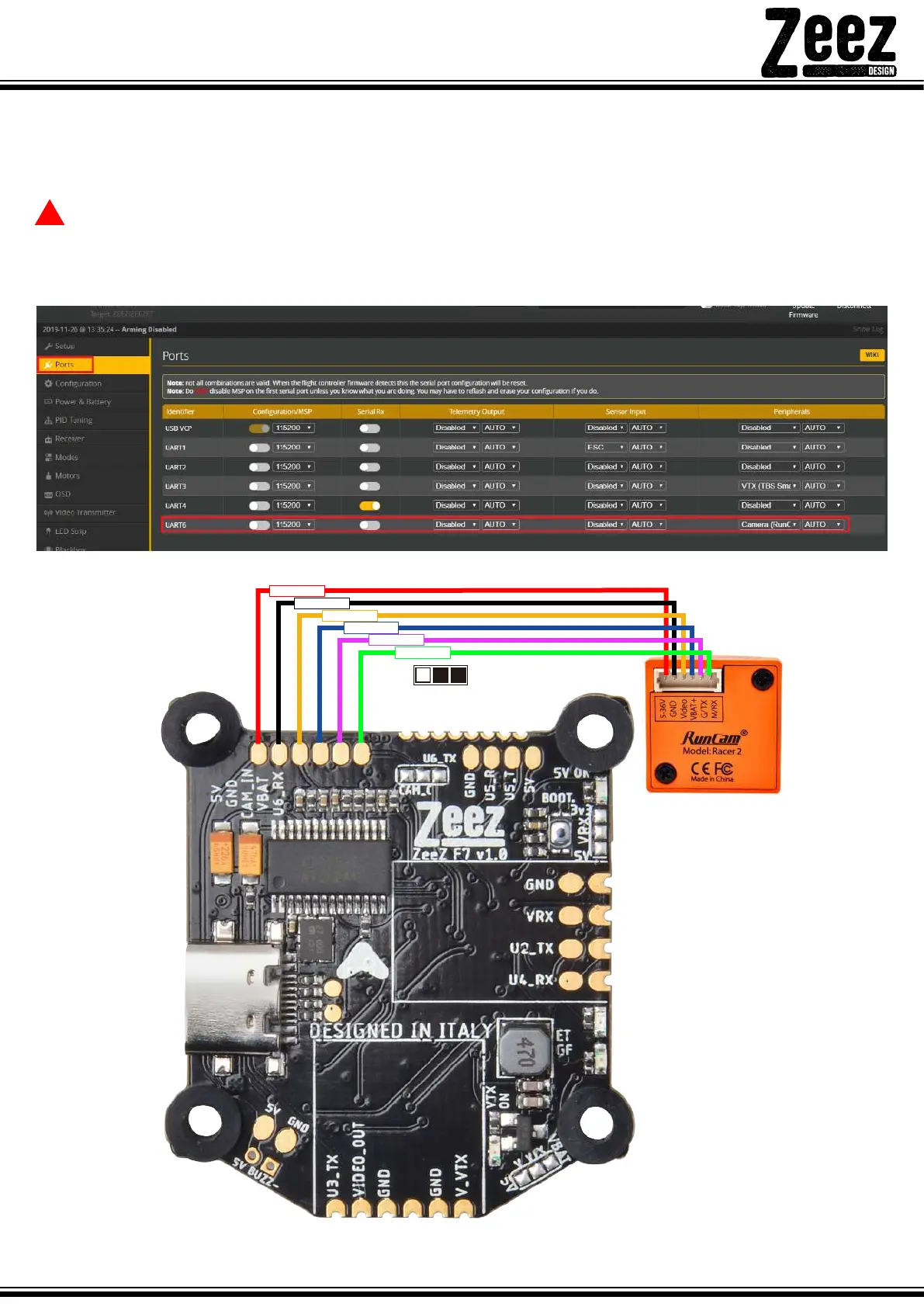

Camera chapter:
Don’t forget to make the solder bridge in the right side of the Solder jumper near the camera pad to select UART6-TX
UART control Camera:
5V
GND
UART6-TX
VIDEO
UART6-TX
VBAT+
UART6-RX
