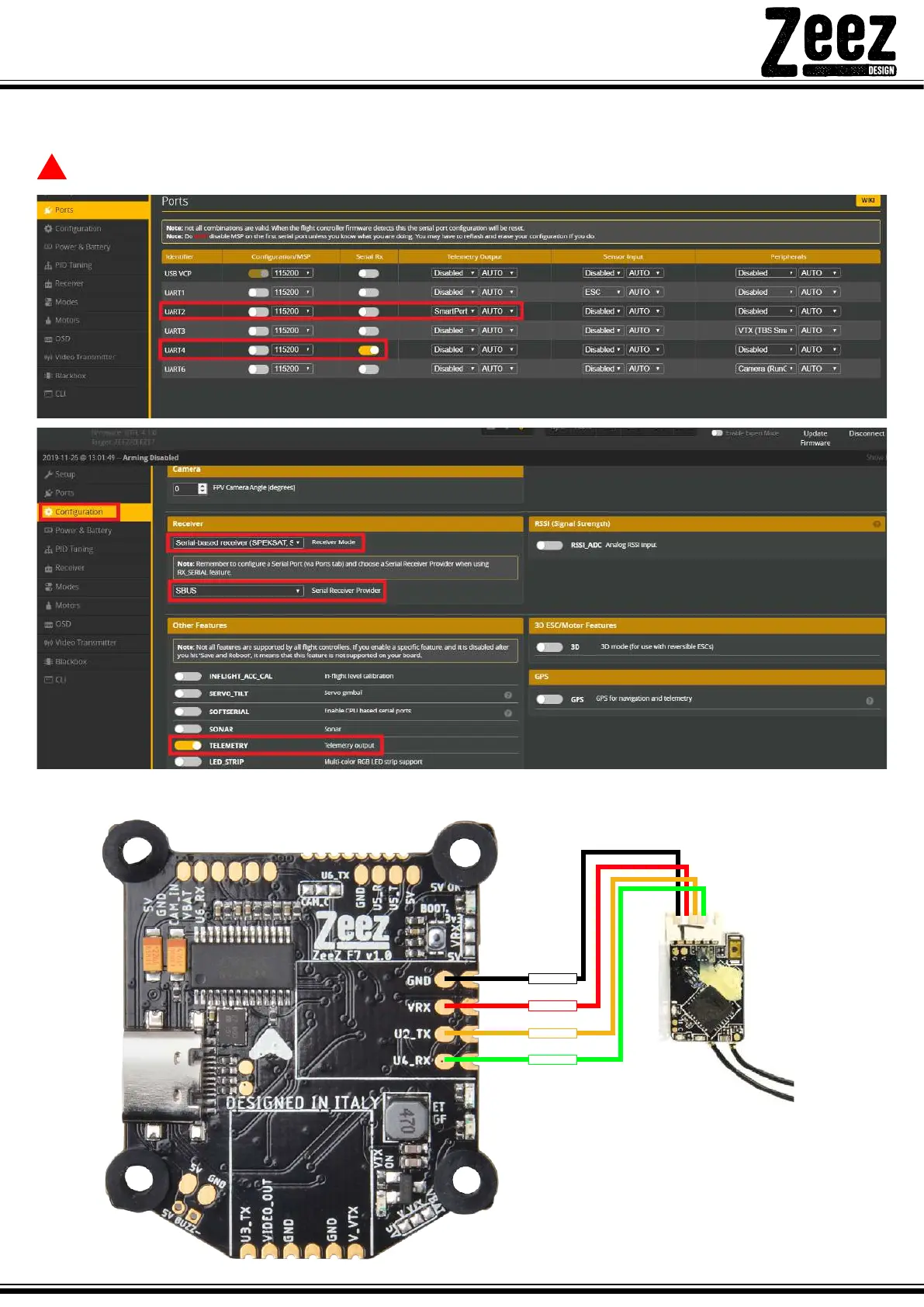

FrSky RXSR:
Don’t forget to make the solder bridge in the left side of the Solder jumper near the RX pad to select 5V
as voltage for the RX
GND
5V
UART2-TX
UART4-RX
⑹
!
