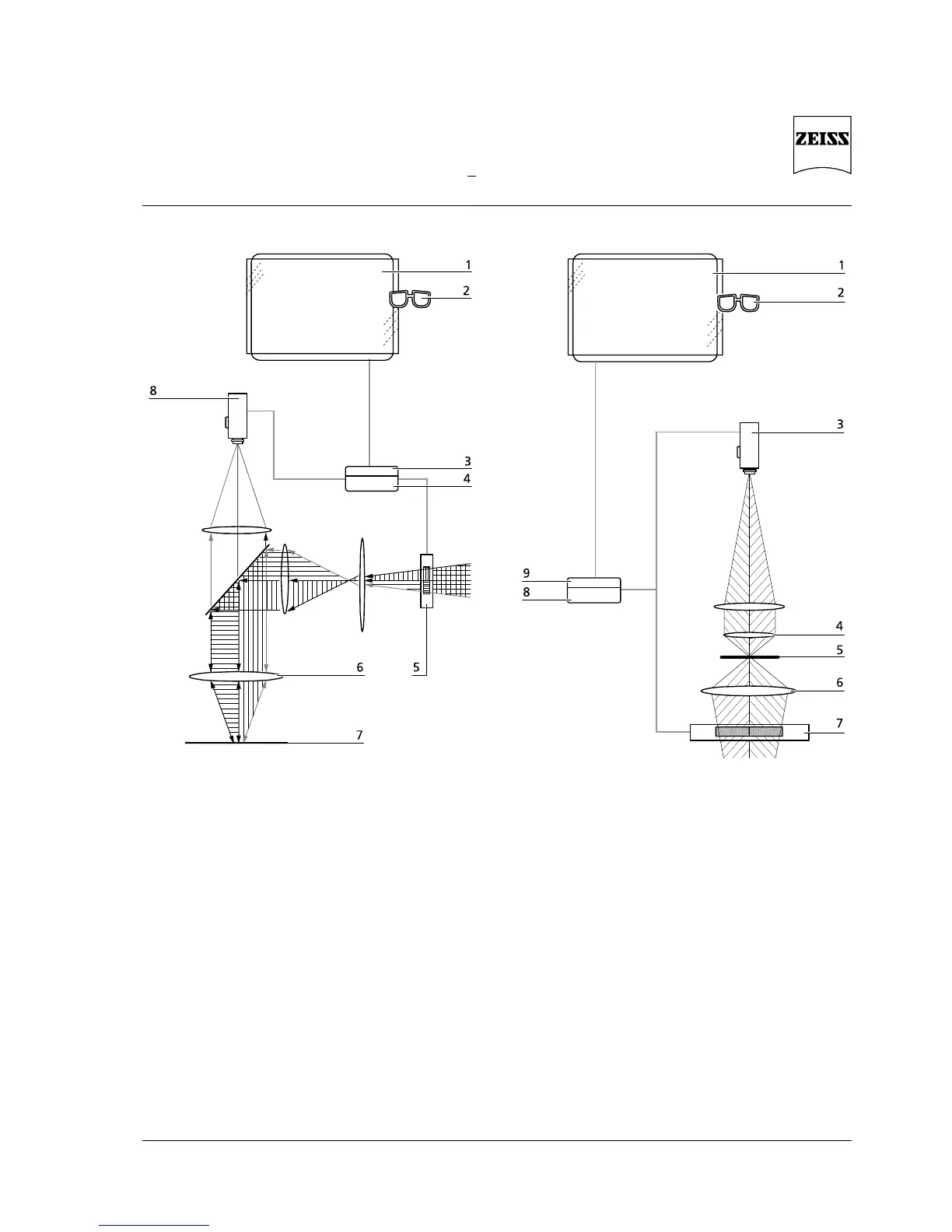

3D Microscopy Function

Monitor version
B 40-022-4 e 07/98 9
1 Monitor shutter
2 Glasses
3 Control unit for monitor shutter
4 MCU II image memory
5 3D illumination shutter
6 Objective
7 Object plane
8 Camera
Monitor version
in a reflected-light microscope
1 Monitor shutter
2 Polarizing glasses
3 Camera
4 Objective
5 Object plane
6 Condenser
7 3D illumination shutter
8 MCU II image memory
9 Control unit for monitor shutter
Monitor version
in a transmitted-light microscope
