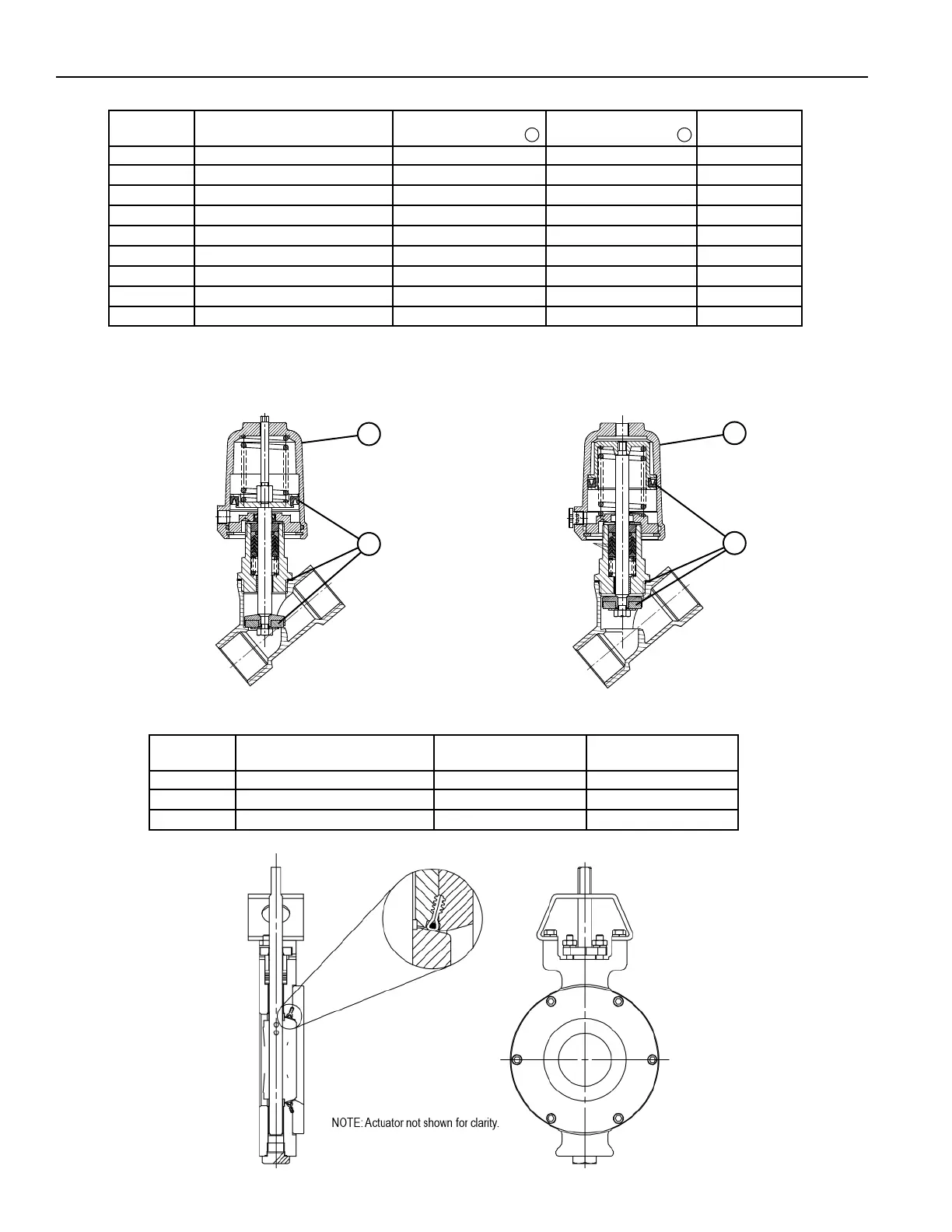

15.0 SPARE PARTS
ANGLE VALVE
Normally-Closed (P.O.N.C.)
1
2
ANGLE VALVE
Normally-Open (P.O.N.O.)
1
2
ANGLE VALVE REBUILD PARTS
VALVE REPLACEMENT ACTUATOR SEAL REBUILD KIT* MOUNTING TOOL
§
PART NUMBER VALVE DESCRIPTION PART NUMBER (CALLOUT 1 ) PART NUMBER (CALLOUT 2 ) PART NUMBER
47590665001 VALVE, ANGLE, 3/4” P.O.N.C. 47607077001 47607078001 47607080001
47590664001 VALVE, ANGLE, 3/4” P.O.N.O. 47607077002 47607078002
47590667001 VALVE, ANGLE, 1” P.O.N.C. 47607077003 47607078003 47607080001
47590666001 VALVE, ANGLE, 1” P.O.N.O. 47607077004 47607078004
47590669001 VALVE, ANGLE, 1-1/2” P.O.N.C. 47607077005 47607078005 47607080002
47590668001 VALVE, ANGLE, 1-1/2” P.O.N.O. 47607077006 47607078006
47590672001 VALVE, ANGLE, 2” P.O.N.C. 47607077007 47607078007 47607080002
47590670001 VALVE, ANGLE, 2” P.O.N.O. 47607077008 47607078008
47590671001 VALVE, ANGLE, 2” P.O.N.O. 47607077009 47607078009
* Seal Rebuild Kit includes: Seat Seal, Head Section Seal, Exterior Lip Seal
§
Mounting Tool is required for Normally-Closed Valves (P.O.N.C.) only. Tool is used to decompress the spring for safe dismantling of the valve, and
also to install the Replacement Actuator and Seal Rebuild Kit.
HIGH PERFORMANCE BUTTERFLY VALVE REBUILD PARTS
VALVE REPLACEMENT VALVE SEAL REBUILD KIT*
PART NUMBER VALVE DESCRIPTION W/ GASKETS PART NUMBER PART NUMBER
47595375001 VALVE, BUTTERFLY 3” W/ ACTUATOR 47633579001 47633604001
47595376001 VALVE, BUTTERFLY 4” W/ ACTUATOR 47633580001 47633605001
47595377001 VALVE, BUTTERFLY 6” W/ ACTUATOR 47633581001 47633606001
* Seal Rebuild Kit includes: Valve Seat and Stem Seals.
