3.3 Positioning and perforation requirements
Please select a plane and drill holes according to the installation positioning
requirements in figure 3-1. Before use, the product must be effectively fixed
and cannot be fixed upside down. The fixing bolt is M8, and the fixing torque is
22Nm.
3.4 Harness preparation
Connection
port
silkscreen
Connector name
Pictures
Recommended cable specifications
Polarity
Wire
diameter
Length
Color
230V Output
Ac output plug
--
--
≤3m
Black
230V Input
Ac input power
cable
--
--
≤3m
Black

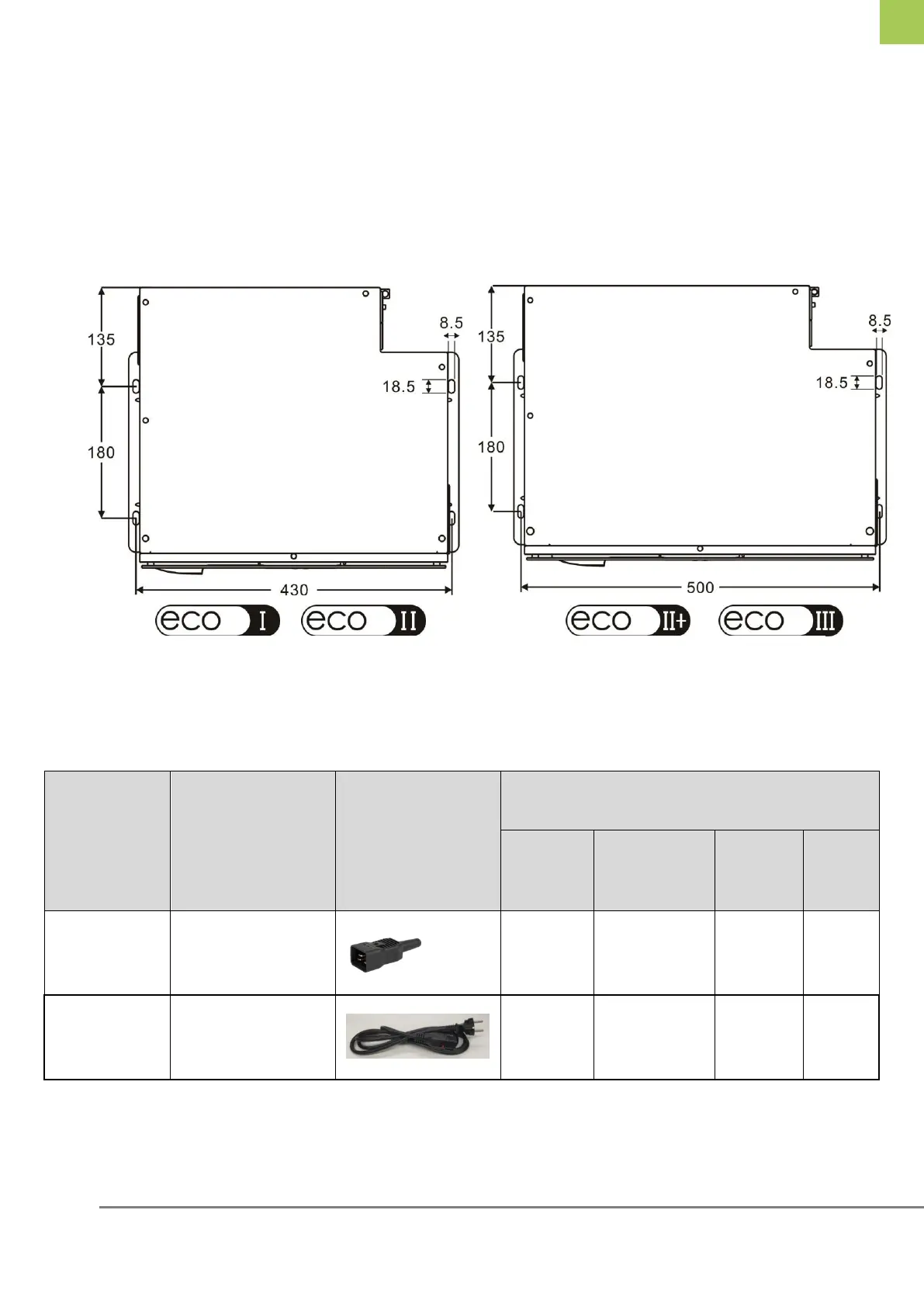

Figure 3-1 Installation positioning and perforation requirement
