3.6.3 Dry contact output function
Dry contact 1
The default setting of SOC ≤5% (5%~50% can be set) will activate the output
relay dry contact for starting the engine.
SOC＝100% (10%~100% can be set) will break the relay output dry contact.
Wiring instructions:
1. The output dry contact C interface is connected to the negative
terminal of the DC load.
2. Output dry contact NO interface is connected to Engine Start
controller.

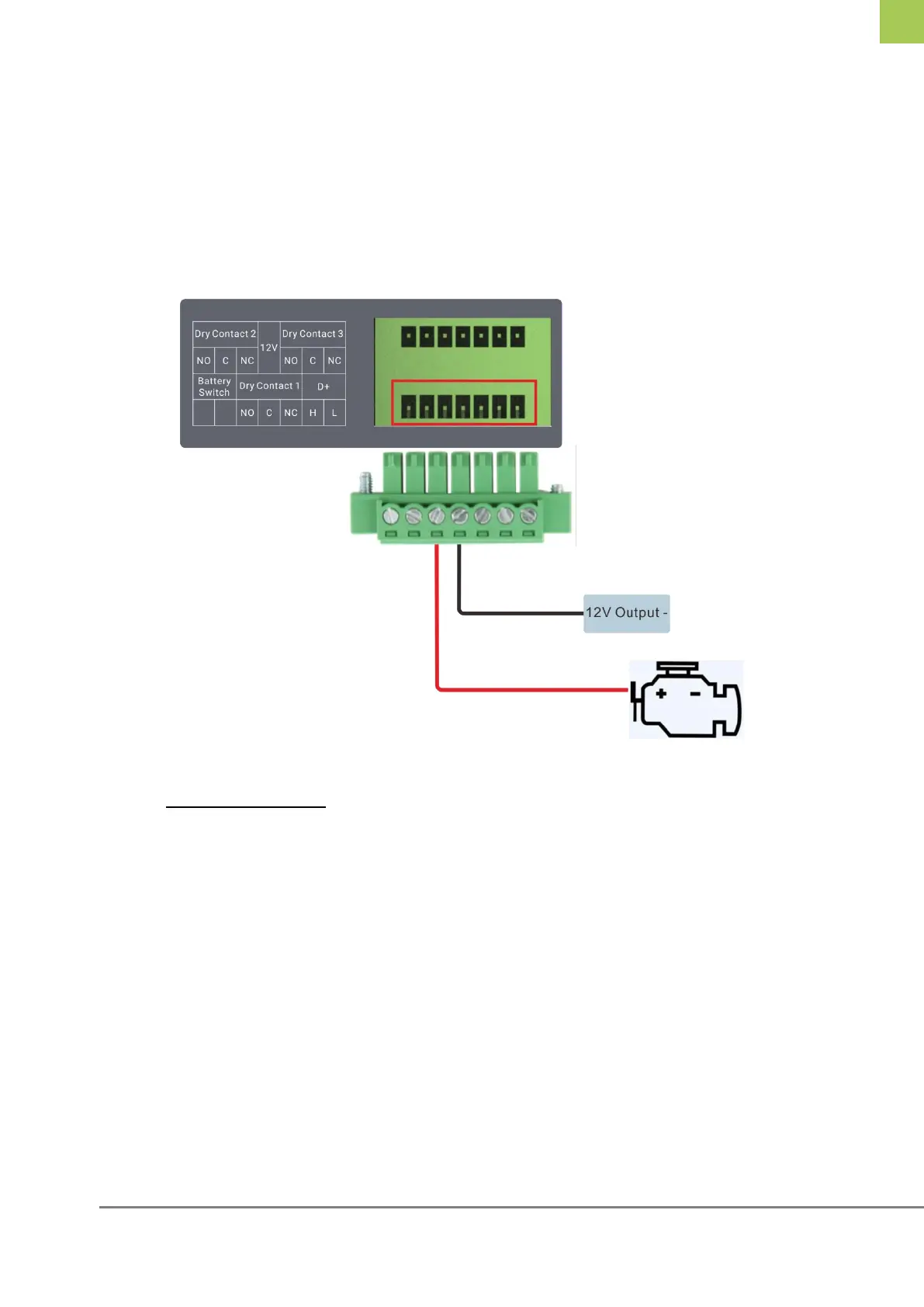

Figure 3-5 Dry contact 1
