3.5 Wiring
(Take 1600VA/1.28kWh as an example)

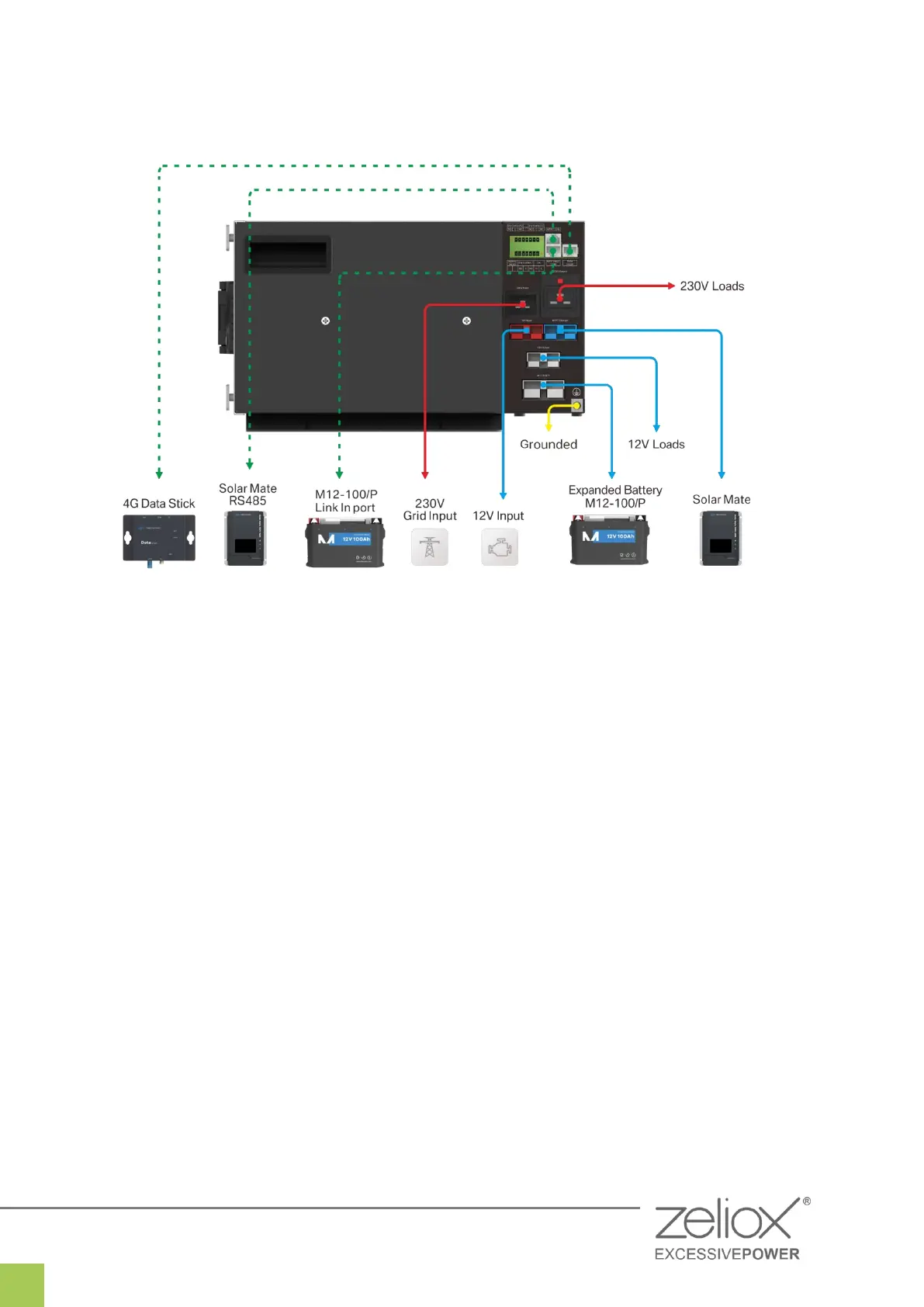

3.5.1 Wiring steps
Step 1. Please use the prepared wire (Red Anderson terminal SA50) to
connect the 12V Input interface on the ECO and the starter battery.
Use a fuse 100A.
Step 2. Please use the prepared wire (Grey Anderson terminal SA50) to
connect the 12V Output interface on the ECO and the DC load.
Step 3. Please use the prepared wire (Blue Anderson terminal SA50) to
connect the MPPT Charger interface on the ECO and the Solar
Mate.
Step 4. Please use the prepared wire to connect the 230V Output interface
on the ECO and the AC load.
Step 5. Please use the prepared wire to connect the 230V Input interface on
the ECO and the AC mains.
Step 6. Please use the prepared wire to connect the Data Logger interface
on the ECO and Kinergy data collector.
Step 7. Please use the prepared wire to connect the MPPT COM interface
on the ECO and Solar Mate RS485.
