Zelmer 481.4 - Reassembly of Stand with Bowl Type 481.1000

27

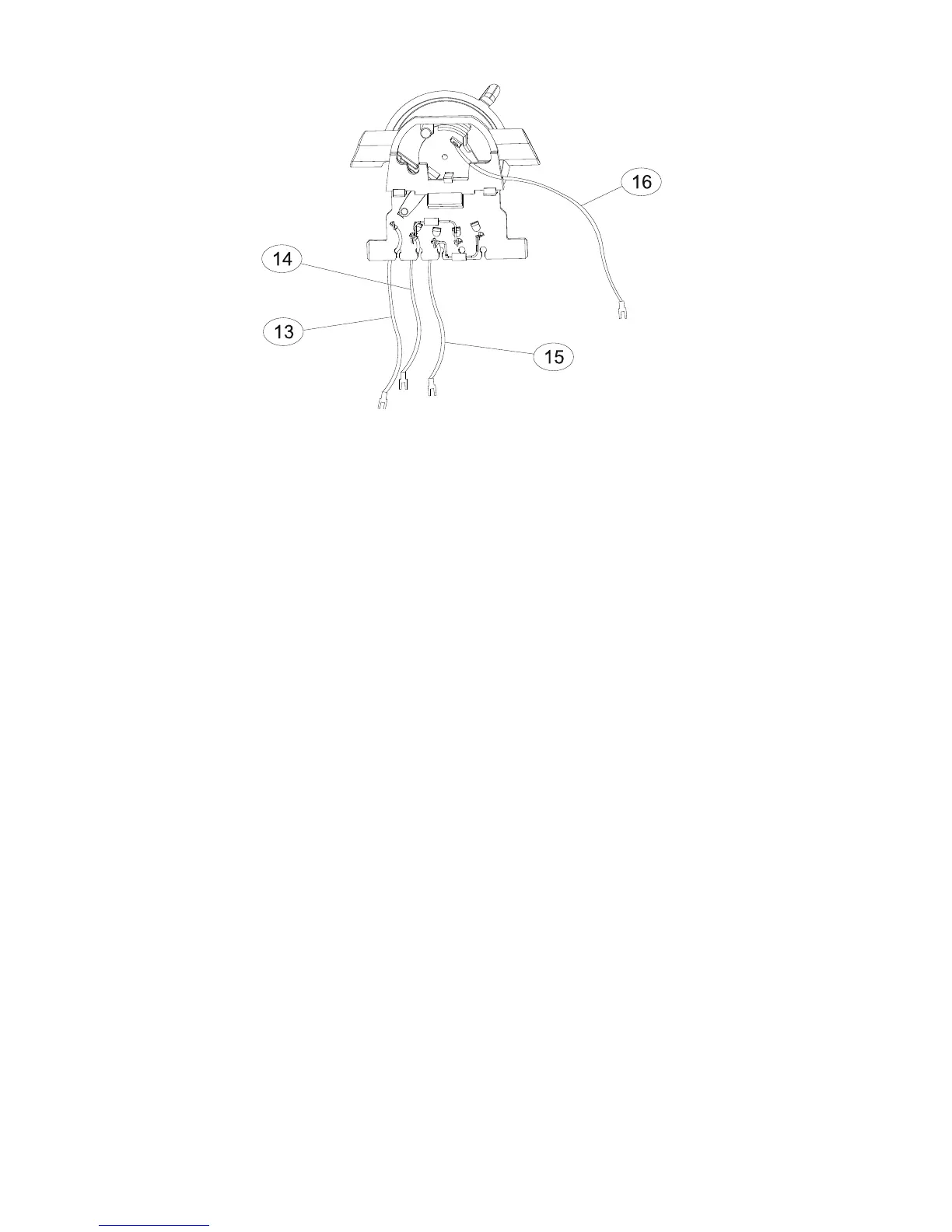

13 – Internal wire L- 55 mm / 0.35 mm
2
14 – Internal wire L- 65 mm / 0.35 mm
2
15 – Internal wire L- 55 mm / 0.35 mm
2
16 – Internal wire L- 140 mm / 0.5 mm
2
After reassembling all the parts, check for the correct internal wire arrangement, put the
housings together, snap the catches and secure with the screws.
3.2 Reassembly of the stand with bowl type 481.1000
The reassembly of the drive is carried out in the reverse order to its disassembly. Given below
are guidelines for the correct reassembly of the stand.
 Grease the pin and the hub of the gear wheel 11 with white petrolatum and mount the wheel
on the pin located in the socket of the base articulated 2.
 Grease the catch of the base articulated 2, the catches of the head plate 4 and the hubs,
pins, toothed rings and the guide of the gear wheel 7.
 Fit the head plate 4 onto the base articulated 2 so that the catches will be aligned with the
openings in the base articulated 2 and turn them counter-clockwise to the home position.
 Fit the gear wheel 7 into the hole of the head plate 4 so that the pin located in the base
articulated 2 will be located in the guide of the gear wheel 7.
 Fit the gear wheel 10 onto the splines of the gear wheel 11. Fit the gear wheel 9 into the hole
of the head plate 4.
 Fit the upper part 5 onto the head plate 4 so that the pins and the hubs of the gear wheels
will be located in the correct places of the upper part. Secure the whole unit with the four
screws 17.
 By turning the gear wheel 9 or 11 check to make sure that the head performs swinging
motion relative to the base articulated 2.
 Fit the grip knob 6 into the recess of the upper part.
 Insert the spring 15 into the socket of the base 1 and push in the catch pusher 3. Push the
base articulated 2 together with the head into the base 1.
