ZENEC Z-E3776 - Connection Diagrams; 16-Pin Device Connector; ISO Harness Connectors; Specialized Cable Connections

Technical modifications excepted. No liability granted for printing errors. © Copyright 2023 RevB / copy deadline: Q2-2023 English
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Schweiz/Switzerland Mail: support@zenec.com www.zenec.com

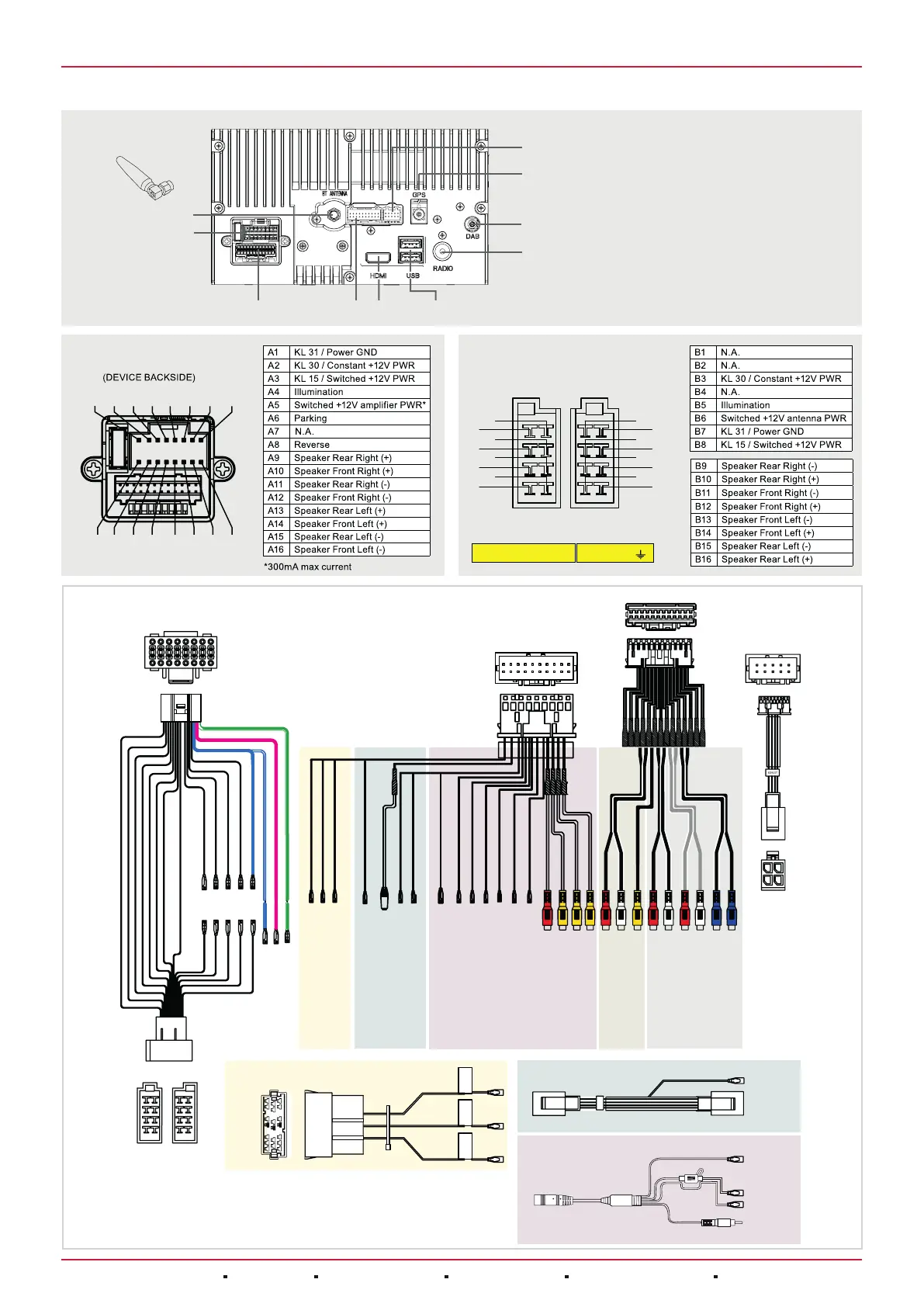

ANSCHLUSS-DIAGRAMM / CONNECTION DIAGRAM
WLAN / Blue
FM
DAB
GPS
D
tooth
Antenna
A
CEHDMI USB 1/2
USB1:
• Apple CarPlay, Apple MFI and Google Android Auto
• USB Media Playback, Software Updates
• Power charging ~1000mA
USB2:
• Apple MFI
• USB Media Playback, Software Updates
• Power charging ~1000mA
A9 Speaker Rear Right (+)
A10Speaker Front Right (+)
A11Speaker Rear Right (-)
A12Speaker Front Right (-)
A13Speaker Rear Left (+)
A14Speaker Front Left (+)
A15Speaker Rear Left (-)
A16Speaker Front Left (-)
A1 KL 31 / Power GND
A2 KL 30 / Constant +12V PWR
A3 KL 15 / Switched +12V PWR
A4 Illumination
A5 Switched +12V amplifier PWR*
A6 Parking
A7
A8 Reverse
A10A12 A14A16A2 A4 A6 A8
A9 A11A13 A15A1 A3 A5 A7
16 PIN CONNECTOR
B2
B1
B4
B3
B6
B5
B8
B7
B9
B10
B11
B12
B13
B14
B15
B16
ISO CONNECTORS
(HAR
N
ESS)
B1 N.A.
B2 N.A.
B3 KL 30 / Constant +12V PWR
B4 N.A.
B5 Illumination
B6 Switched +12V antenna PWR
B7 KL 31 / Power GND
B8 KL 15 / Switched +12V PWR
B9 Speaker Rear Right (-)
B10Speaker Rear Right (+)
B11Speaker Front Right (-)
B12Speaker Front Right (+)
B13Speaker Front Left (-)
B14Speaker Front Left (+)
B15Speaker Rear Left (-)
B16Speaker Rear Left (+)
12V DC / 15 A
NEGATIVE
DAB ANTENNA IN:
SWITCHED 12V SUPPLY
E
C
A
B
Camera
eCall Mute
ext. Mic
GND
CAM Audio In
Mview/CAM 1 CVBS In
Line In R
Line In L
Video In
Front Out R
Front Out L
Rear Out R
Rear Out L
Subwoofer Out Subwoofer Out
P. CNTR
Parking
Reverse
A/V In
Line Out
Mview Data
IR In
CAM 2 CVBS In CAM 3 CVBS In CAM 3 Power 300mA
GND
CAM 2 Power 300mA
GND
Mview/CAM 1 Power 300mA
Wheel Key 1
Wheel Key 2
Wheel Key GND
LIN-BUS In
Analog SWC
Analog SWC Connector
LIN-Bus SWC Connection Cable
Black/White
LIN-BUS Out
Multiview Connection Cable
White
D
Input
(reserved
for
Schaudt)
Mview
CVBS Out
DNG
Mview Data
Mview Power
Key1 Key2 GND
