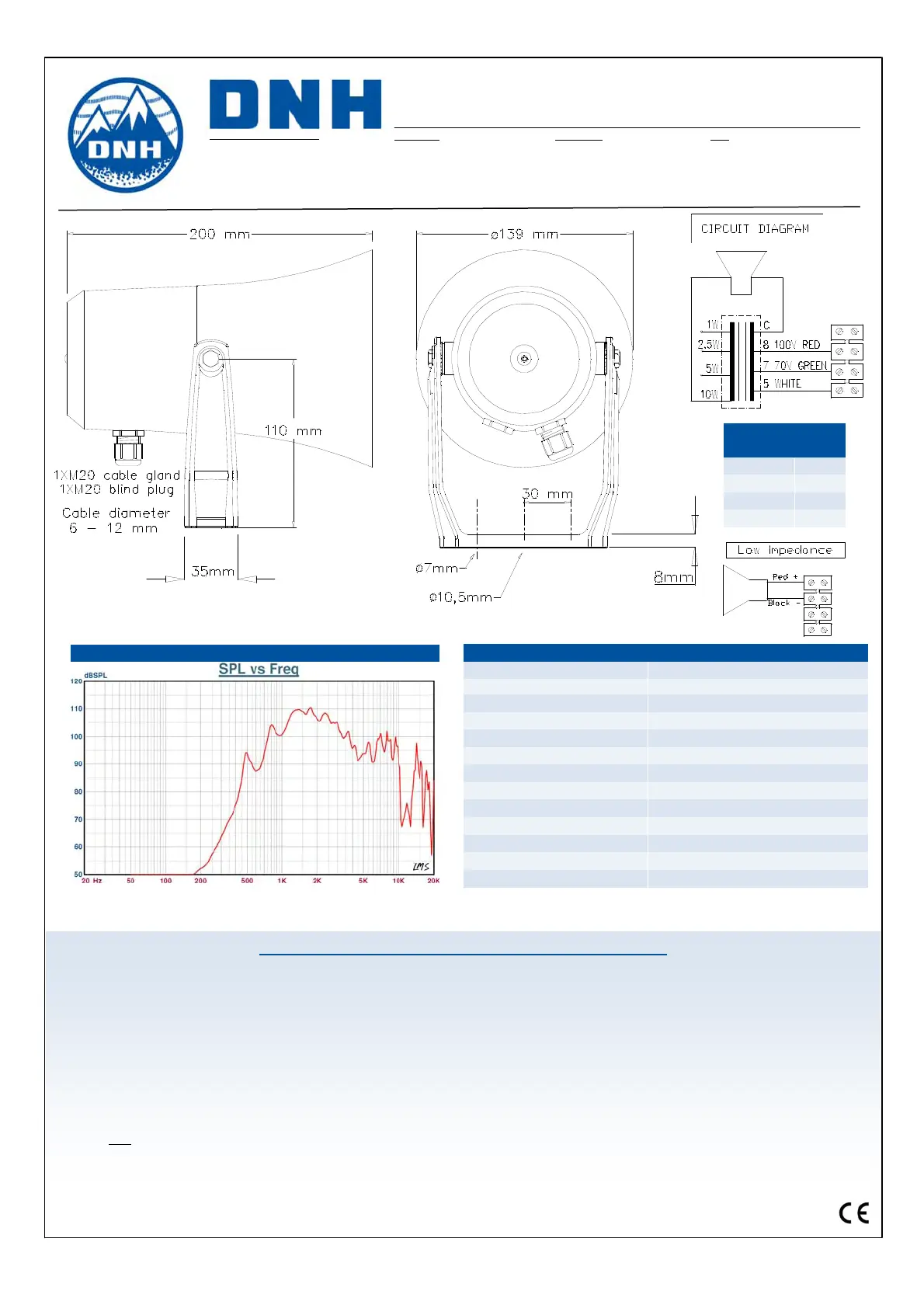

HP-10
T
Installation, Operation and Maintenance Procedures
Unscrew lid, lead cable through cable gland, connect to terminal (70V or 100V) and select required tapping on
transf
ormer.
Fasten lid with a torque of
1,2 – 1,5 Nm.
Fasten brack
et to wall or ce
iling with 1 to 3 screws.
To ch
ange the position of the loudspeaker, please adjust the bracket (by loosening / tightening the screws)
as
required.
For optimum performance, always use the correct voltage / power and operate within the frequency limits as
stated.
Do not open loudspeaker when energize
d.
This loudspeaker is supplied with a 2 year warranty against defective materials and workmanship.
Sound
ressure levels at 1W/1m 28mm
Specifications
Material / Color ASA / RAL 7035
Mounting Bracket
Termination Screw connections
Weight w/transformer 1,1 kg
IP-rating 66/67
Max. / min. amb. temp
90C / -50C
Rated / max. power 10 W / 15 W
SPL 1W/1m 107 dB
SPL rated power 117 dB
Effective freq. range 450 – 10000 Hz
Dispersion (-6dB) 1kHz / 4kHz
150 / 45
Directivity factor, Q(2kHz)
Options Impedance, colors, labels
Secondary
nominal tappings
C : 10W 10 W
C : 5W 5 W
C : 2,5W 2,5 W
C : 1W 1 W
