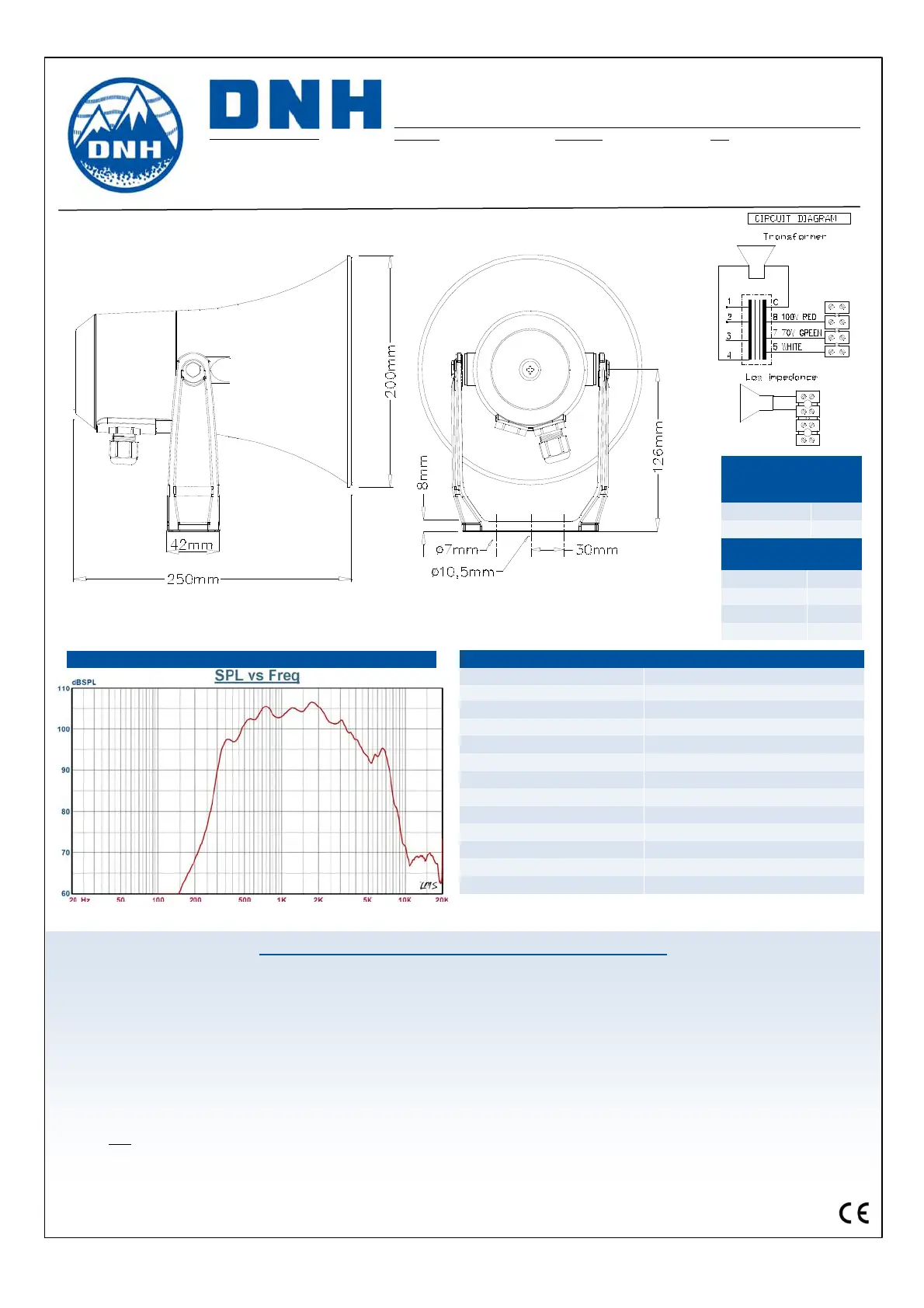

HP-15
T
Installation, Operation and Maintenance Procedures
Fasten loudspeaker to wall/ceiling with two screws through foot bracket.
Remov
e lid by 1 screw, lead cable trough cable gland, select required tapping and connect to terminal 70V
or
100V.
Fasten lid with a torque
of
1,2 – 1,5 Nm.
To ch
ange the position of the loudspeaker, please adjust the bracket (by loosening / tightening the screws)
as
required.
For optimum performance, always use the correct voltage / power and operate within the frequency limits as
stated.
Do not open loudspeaker when energize
d.
This loudspeaker is supplied with a 2 year warranty against defective workmanship.
Sound pressure levels at 1W/1m P5/15T
Specifications
Material / Color ASA / RAL 7035
Mounting Bracket
Termination Screw connections
Weight w/transformer 1,4 kg
IP-rating 66 / 67
Max. / min. amb. temp
90C / -50C
Rated / max. power 15 W / 20 W
SPL 1W/1m 108 dB
SPL rated power 118 dB
Effective freq. range 330 – 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz
130 / 35
Directivity factor, Q 8,3
Options Impedances, colors, labels
70/100 Volt combined
transformer
Primary connections
White : Green 70 V
White : Red 100 V
Secondary
nominal tappings
C : 4 15,0 W
C : 3 7,5 W
C : 2 4,0 W
C : 1 2,0 W
