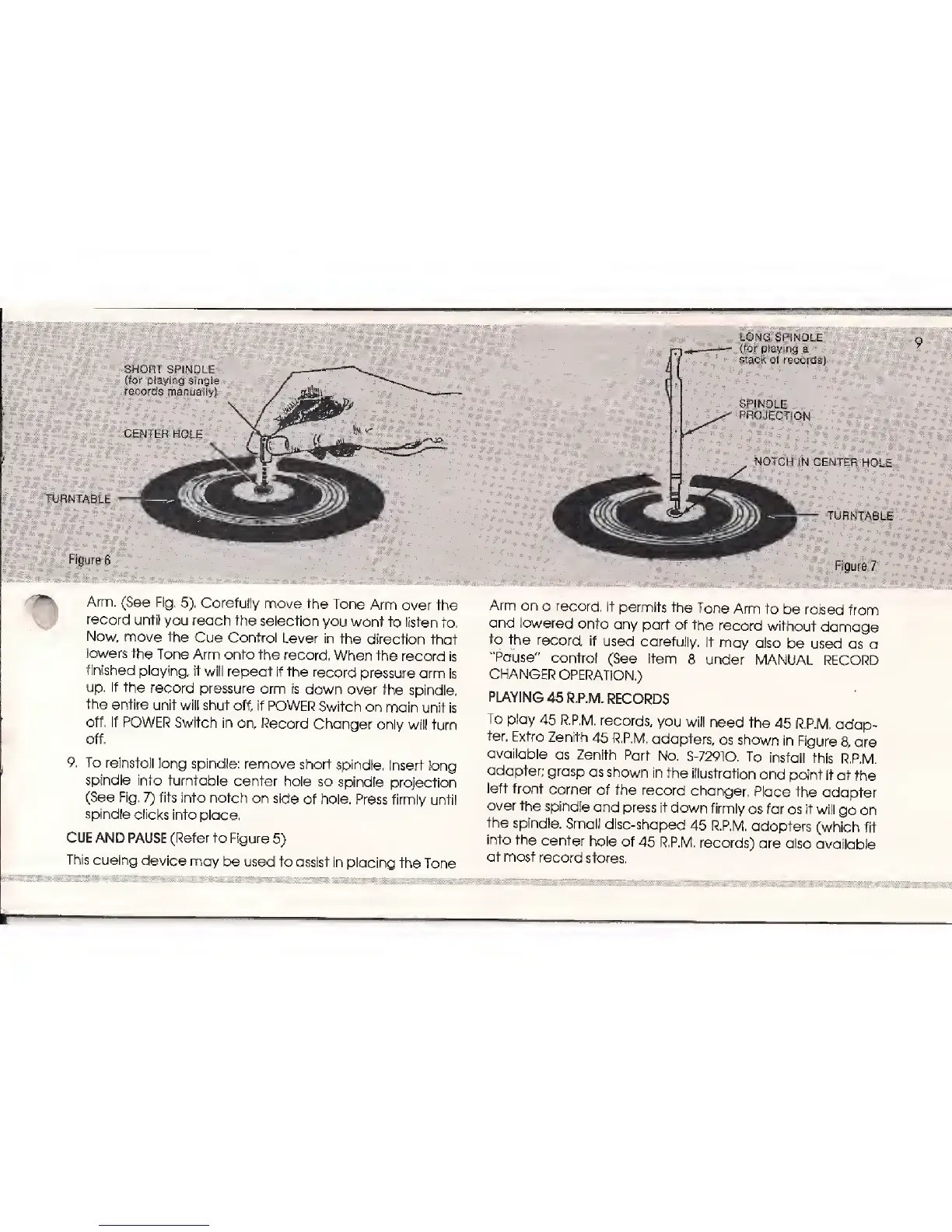

Zenith Allegro - Special Record Playback

SHORT SPINDLE
(for playing
single
records manually):
CENTER
HOLE
TURNTABLE
Figure
6
^
Arm.
(See Fig.
5).
Carefully
move the
Tone
Arm over
the
record
until
you reach the
selection
you want
to listen
to.
Now,
move the
Cue
Control Lever
in
the
direction
that
lowers
the
Tone Arm onto
the
record.
When
the
record is
finished
playing,
it will repeat
if the
record
pressure
arm is
up. If
the
record
pressure
arm Is down
over the
spindle,
the
entire
unit
will shut
off, if POWER
Switch on main
unit
is
off. If
POWER
Switch in
on,
Record
Changer
only will
turn
off.
9.
To
reinstall
long
spindle: remove
short
spindle,
Insert Jong
spindle into
turntable
center hole
so
spindle
projection
(See Fig.
7)
fits
into notch
on side
of hole. Press
firmly until
spindle
clicks
into place.
CUE
AND PAUSE (Refer to
Figure
5)
This cueing
device may
be used to
assist in
placing
the Tone
LONG
SPINOLE
(for
playing
a
-
stack of
records)
SPINOLE
PROJECTION
NOTCH
IN CENTER
HOLE
TURNTABLE
:
:
:
Figure
7
Arm
on a
record.
It permits
the
Tone
Arm to
be raised
from
and
lowered
onto
any
part of
the
record
without
damage
to the
record,
if
used
carefully. It
may
also
be used
as a
"Pause"
control
(See item
8 under
MANUAL
RECORD
CHANGER
OPERATION.)
PLAYING
45 R.P.M.
RECORDS
To
play
45
R.PM
records,
you will
need
the
45
R.P.M.
adap-
ter.
Extra
Zenith
45 R.P.M.
adapters,
as
shown
in
Figure
8,
are
available
as
Zenith
Part
No.
S-7291C
To
install
this
R.P.M.
adapter;
grasp
as shown
in the
illustration
and
point
it of the
left front
corner
of the
record
changer,
Place
the
adapter
over the
spindle
and
press it
down
firmly
as far as it will
go on
the
spindle.
Small
disc-shaped
45
R.P.M.
adapters
(which fit
into
the
center
hole
of
45 R.P.M.
records)
are
also
available
at
most
record
stores.
r
