CM151 5-10 CA - EXPLODED VIEWS

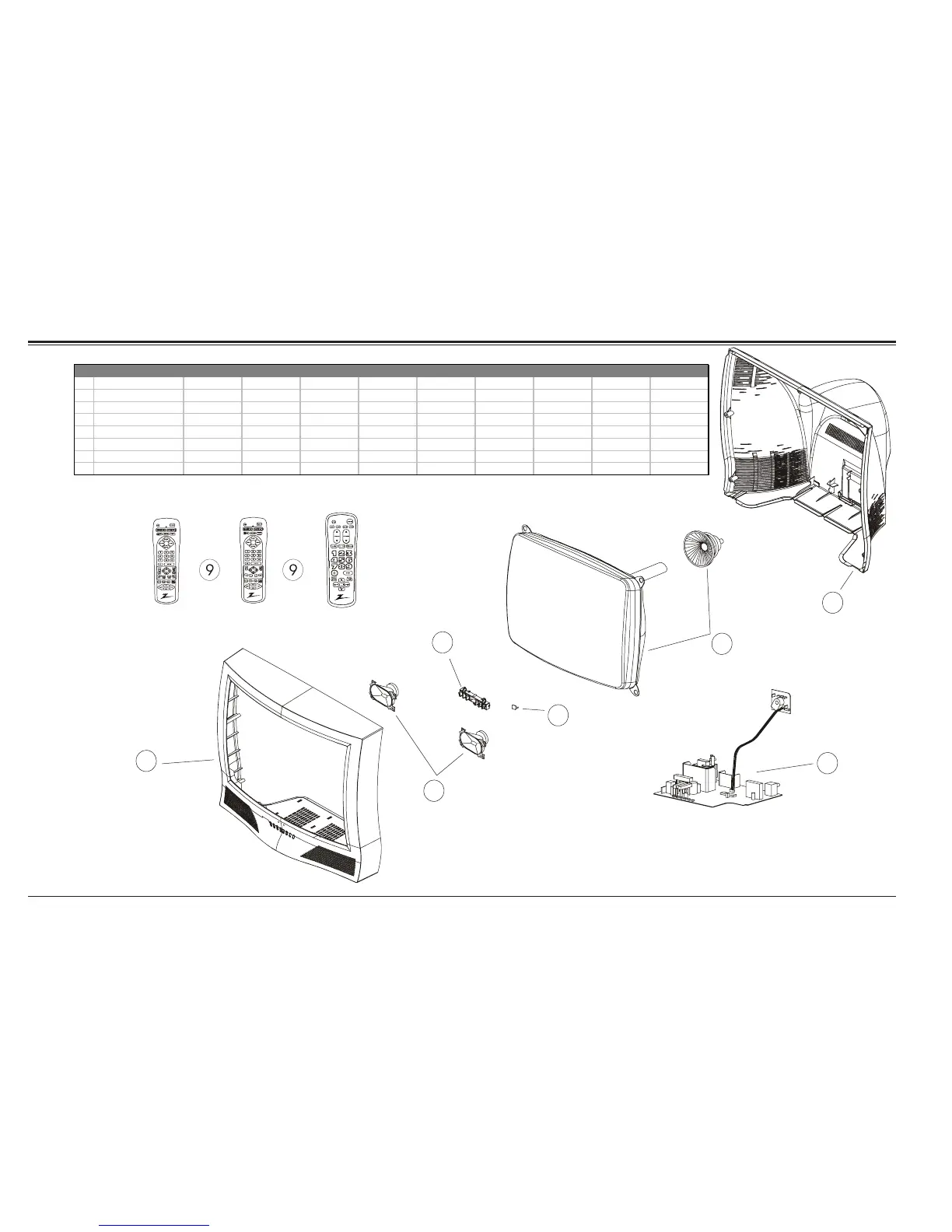

36V Table Top Set Exploded View
REF DESCRIPTION B36A24Z B36A24Z6 B36A24ZF B36A30Z B36A30Z6 B36A30ZF B36A34Z B36A34Z6 B36A34ZF
1 FRONT CABINET 014-12269-12 014-12269-12 014-12269-12 014-12269-12 014-12269-12 014-12269-12 014-12269-12 014-12269-12 014-12269-12
2 SPEAKER 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03 049-01368-03
3 KEYBOARD ASSEMBLY F-52060 F-52060 F-52060 F-52060 F-52060 F-52060 F-52060 F-52060 F-52060
4 IR LENS 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912 192-00912
5 YOKE & CRT ASSEMBLY A-18639 A-18639 A-18639 A-18639 A-18639 A-18639 A-18639 A-18639 A-18639
6 REAR CABINET 014-12270-12 014-12270-12 014-12270-12 014-12270-12 014-12270-12 014-12270-12 014-12270-12 014-12270-12 014-12270-12
7 MAIN MODULE 009-02069 009-02069-01 009-02069 009-02073 009-02073-01 009-02073 009-02076 009-02076-01 009-02076
8 REMOTE CONTROL 124-00233 124-00233 124-00233 124-00229-01 124-00229-01 124-00229-01 124-00233-01 124-00233-01 124-00233-01
3
4
2
1
7
6
5
MBR3457Z
124-00233
MBR3447Z
124-00233
MBR3346Z
124-00229-01
