CM151 5-11 CA - EXPLODED VIEWS

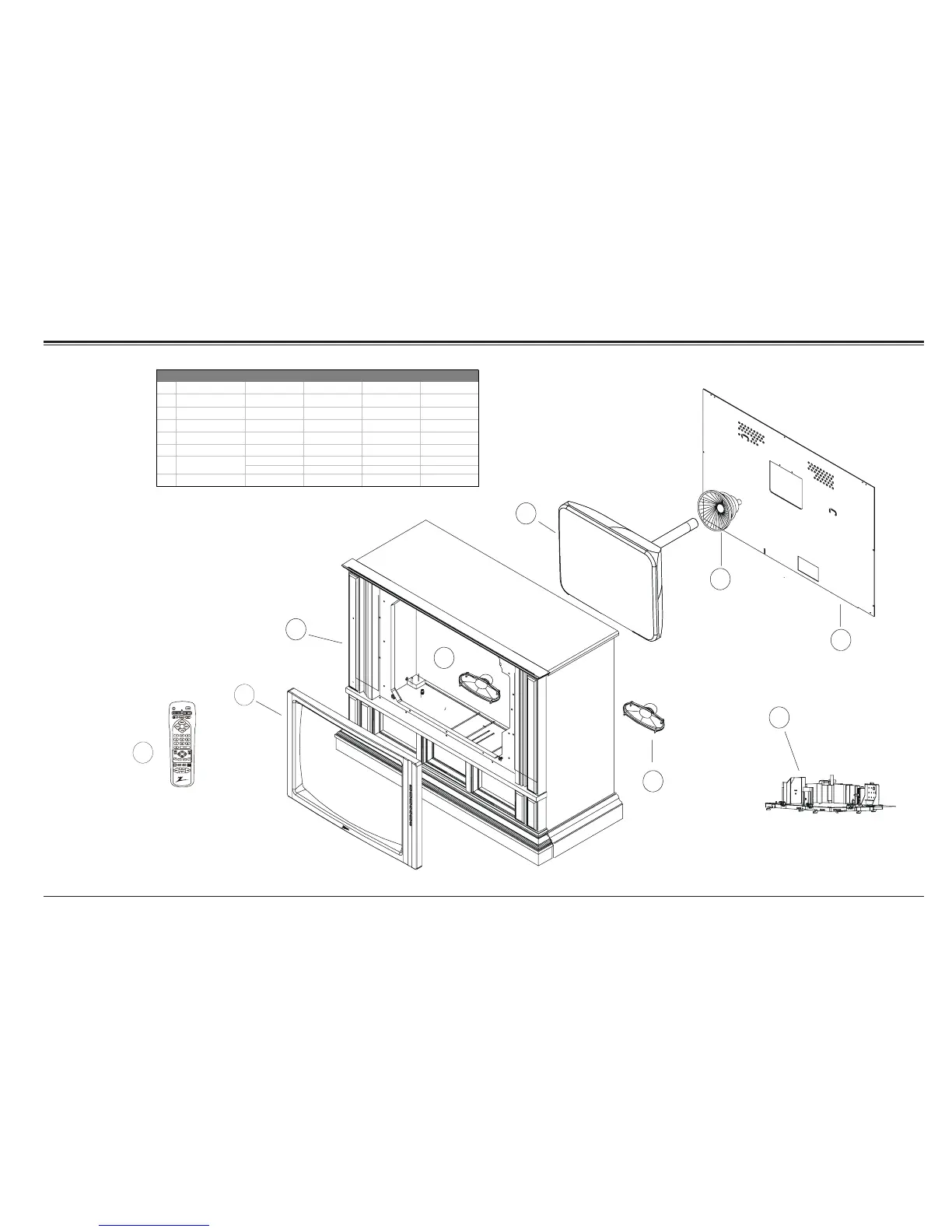

25/27V Traditional Console Set Exploded View
8
1
2
3
3
4
5
6
7
MBR3447Z
124-00233
REF DESCRIPTION B25A74R B25A74LK B27A74R B27A74R5
1 ESCUTCHEON 057-09067-09 057-09067-09 057-09067-09 057-09067-09
2 MAIN CABINET 014-12191-03 014-12191-03 014-12326 014-12326
3 SPEAKER 049-01302-03 049-01302-03 049-01334-02 049-01334-02
4 CRT A63AGDO1X A63AGDO1X A63AGDO1X A63AGDO1X
5 YOKE 095-03797-05 095-03797-05 095-03797-05 095-03797-05
6 BACK COVER 014-12297-08 014-12297-08 014-12297-08 014-12297-08
COMPONENT COMPONENT COMPONENT COMPONENT
LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR LEVEL REPAIR
8 REMOTE CONTROL 124-00233 124-00233 124-00233 124-00233
7 MAIN MODULE
