• Keep the chain properly tensioned! If the chain is
slack it is more likely to jump off and lead to
increased wear on the bar, chain and drive sprocket.
• Keep cutting equipment well lubricated and properly
maintained! A poorly lubricated chain is more likely
to break and lead to increased wear on the bar,
chain and drive sprocket.
Some terms that describe the bar and chain
To maintain the safety features of the cutting equipment,
you should replace a worn or damaged bar or chain with
a guide bar and saw chain combinations recommended
by Zenoah. See instructions under the heading
Accessories on page 34
for a list of replacement bar
and chain combinations we recommend.

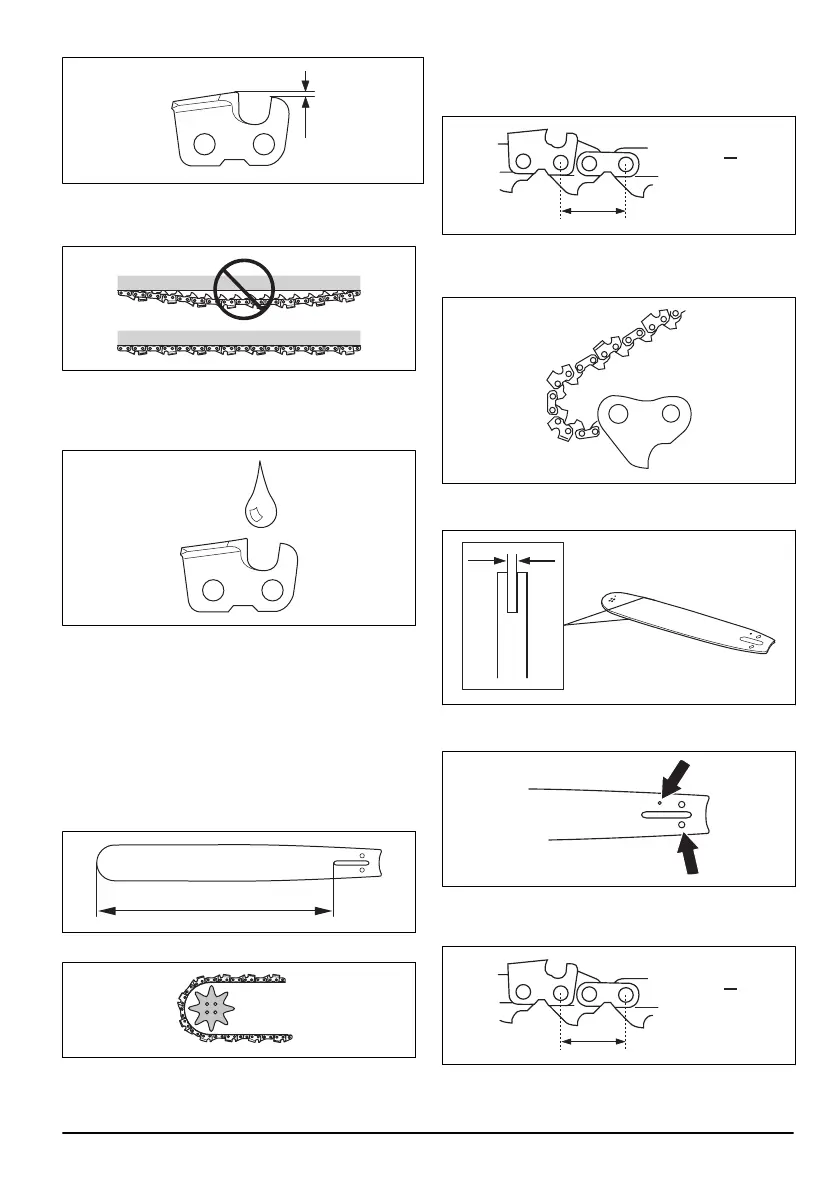

Guide bar
• Length (inches/cm)
• Number of teeth on bar tip sprocket (T).
• Chain pitch (inches). The spacing between the drive
links of the chain must match the spacing of the
teeth on the bar tip sprocket and drive sprocket.
• Number of drive links. The number of drive links is
determined by the length of the bar, the chain pitch
and the number of teeth on the bar tip sprocket.
• Bar groove width (inches/mm). The groove in the bar
must match the width of the chain drive links.
• Chain oil hole and hole for chain tensioner. The bar
must be matched to the chain saw design.
Saw chain
• Chain pitch (inches)
