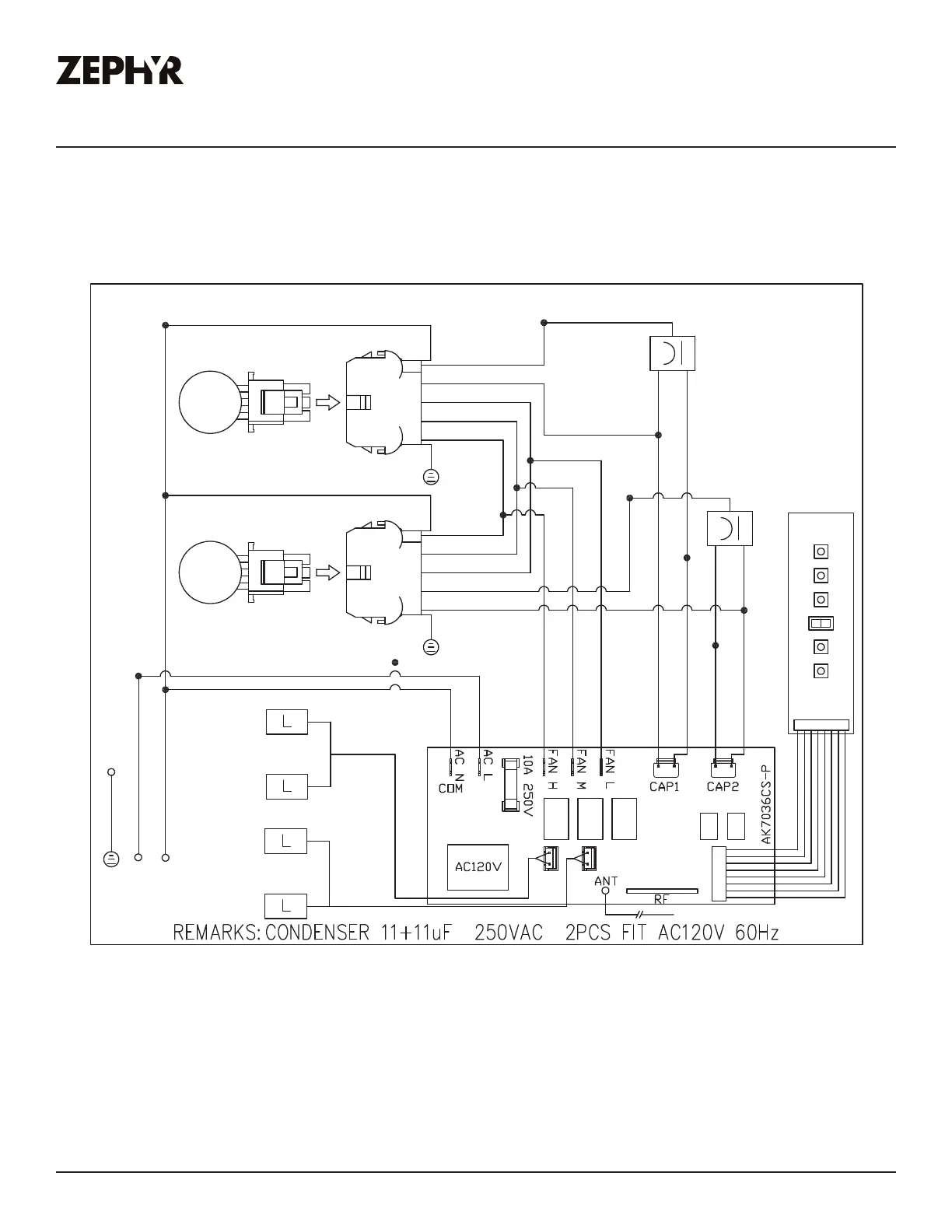

Wiring Diagram
AK9334BS, AK9340BS, AK9346BS, AK9352BS, AK9358BS CIRCUIT DIAGRAM
WHITE
RED
YELLOW
GREY
BROWN
BLUE
GREEN
BODY
WHITE
BLUE
BROWN
GREY
RED
YELLOW
GREEN
BODY
MOTOR
MOTOR
YELLOW
YELLOW
RED
YELLOW
YELLOW
RED
YELLOW
YELLOW
YELLOW
YELLOW
OPTIONAL DUAL FAN
BODY
GREEN
BLACK WHITE
TRANSFORMER
GREY BROWN
BLUE
WHITE
B/W
ACT 590 CFM - Fan Max. 556W @ 4.6A
ACT 390 CFM - Fan Max. 381W @ 3.4A
