- 22 -
INSTALLATION EXTERNAL
AND IN-LINE BLOWER
NOTE: The following instructions are for
preparing the hood for use with external or
in-line blower models CBE-1000 or PBN-
1000A. For blower installation details refer
to manual included with the blower.

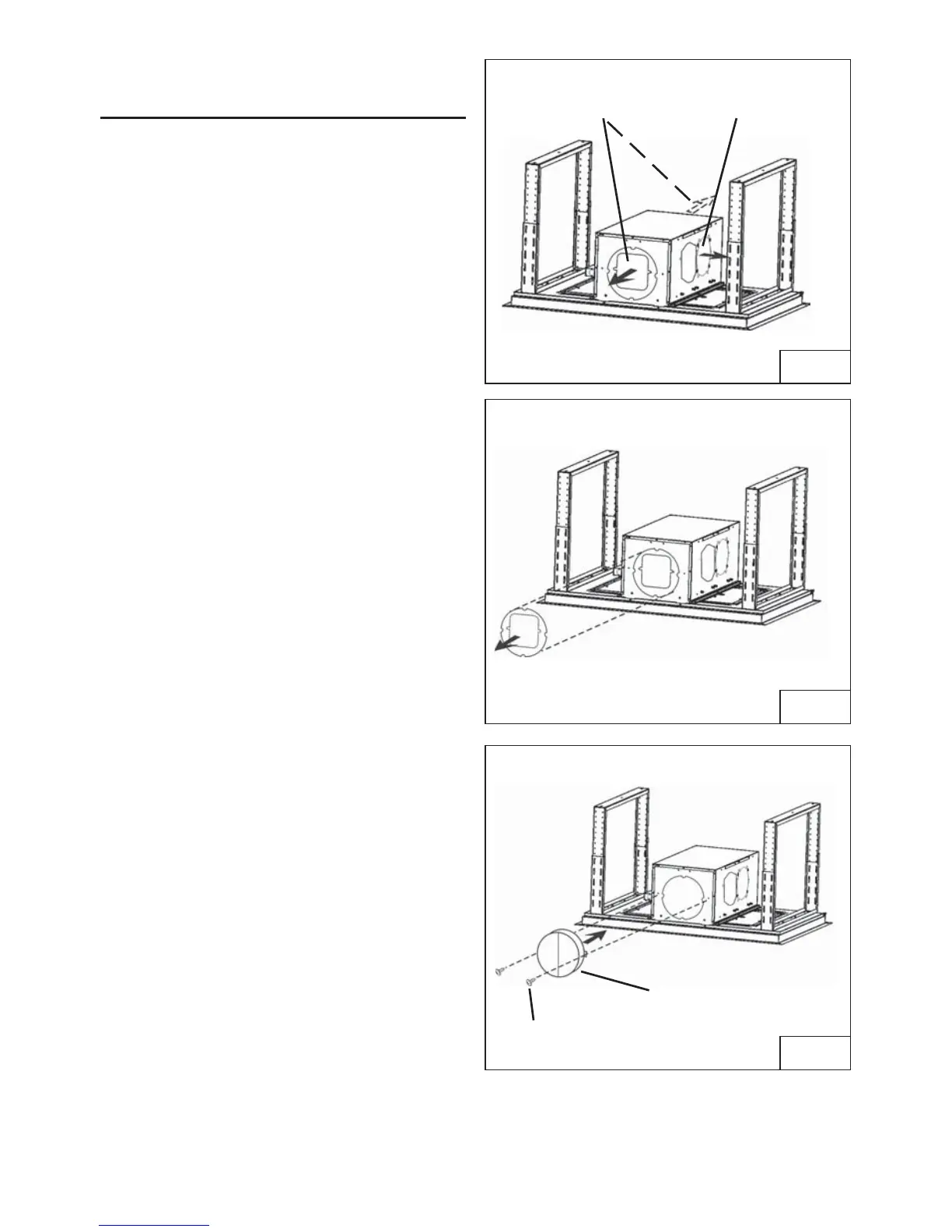

If you choose “A” air outlet (Fig.26):
1.Remove the knockout (Fig.27).
2.Install 10” round collar to the hood by means
(2) mounting screws 3.9x6mm (Fig. 28).
FIG.26
FIG.27
FIG.28
AIR OUTLET “B”
AIR OUTLET “A”
10” ROUND
COLLAR
(2) MOUNTING SCREWS
(3.9 x 6 mm Flat Head)
To Next Page
