Zephyr Typhoon AK2100

INSTALLATION
7

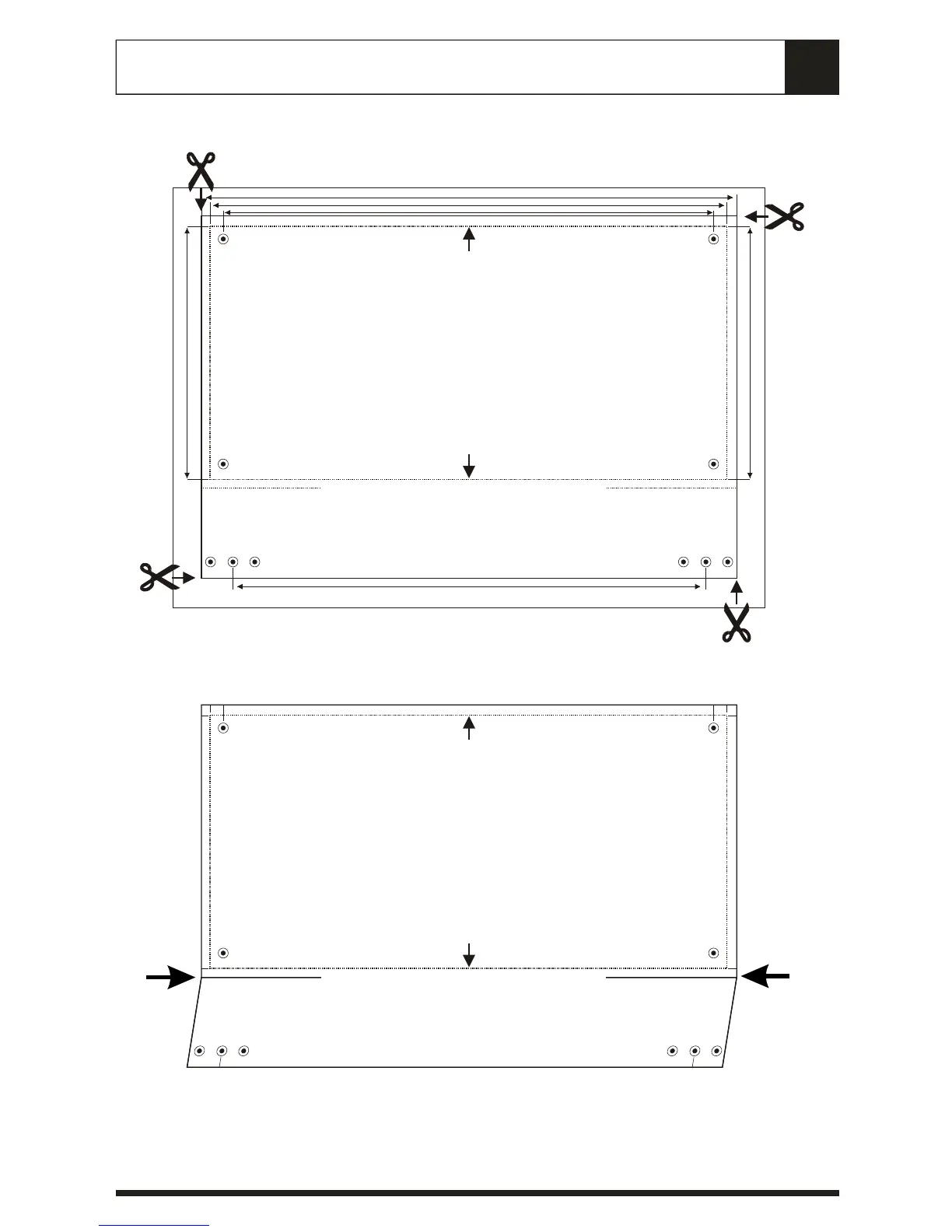

Preparing with Template
Use template provided, fold/ or cut along inside edges.
CABINET FRONT
CABINET REAR
Fold and align this edge to cabinet base and wall corner
WALL
CABINET FRONT
CABINET REAR
Fold and align this edge to cabinet base and wal lcorner
WALL
Fold along line marked “Fold and align this edge to cabinet base and wall
corner”.
**Note: Do not mistake with edge marked “Cabinet Rear”.
(A)
(B)(B)
(A)
hanging bolt
drill location
wall bracket
drill location
