6. Zepro T60 - 8 channel radio

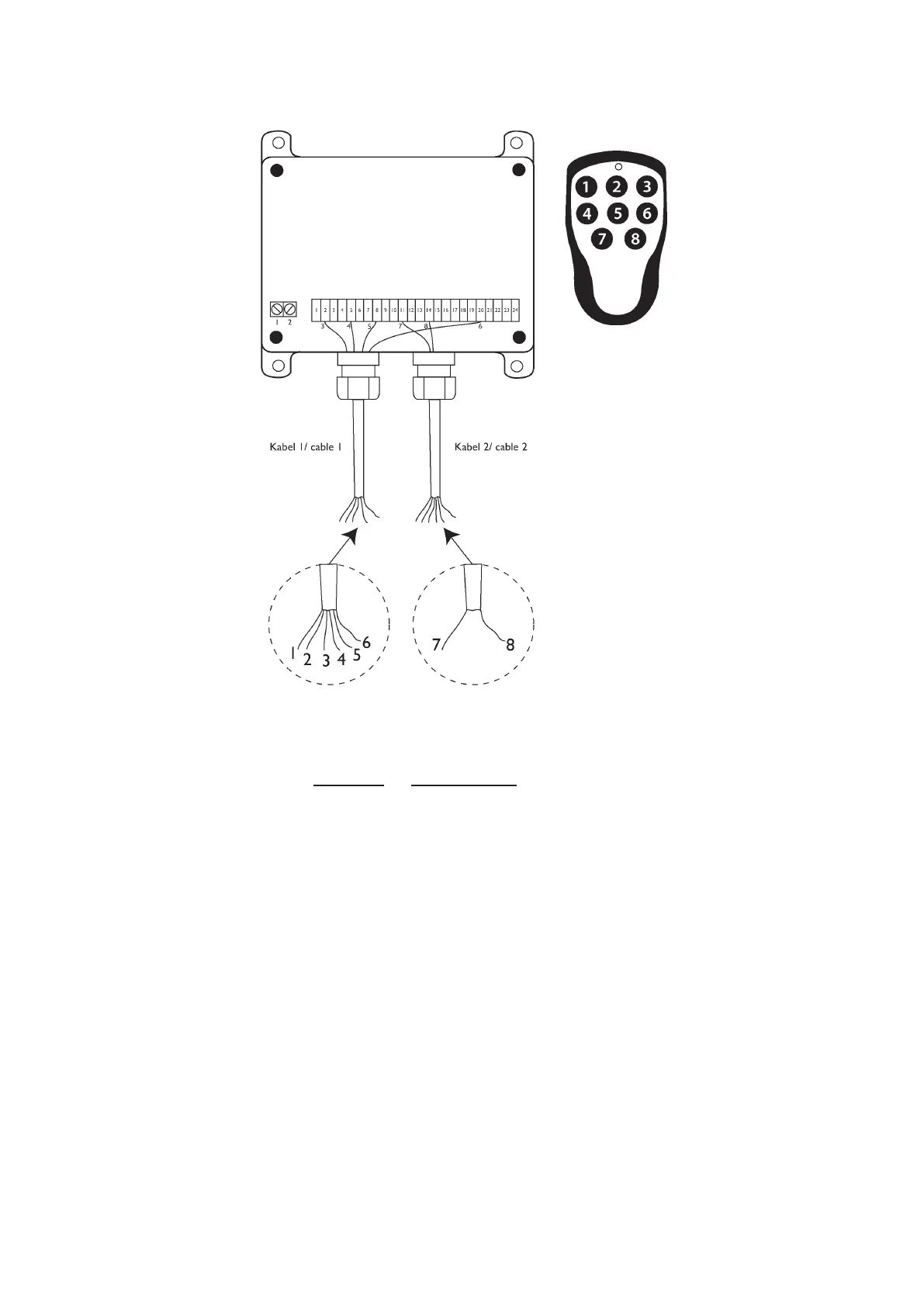

Colour of cable and function
1. White: Earth (marked with - minus)
2. Black: 12 V DC or 24 V AC/DC (marked with a plus sign)
3. Brown: UP function
4. Blue: TILT function
5. Yellow/Green: DOWN function
6. Grey: LOCK / UNLOCK-function
7. Brown: SLIDE OUT function
8. Blue: SLIDE IN function
The lock/ unlock function
Press button 7 to lock. Press button 8 to unlock.
Note! When the transmitter is locked, button 1 to 6 cannot be activated.
Applies only control system with software version 9.0 or later:
Locking is maintained if the lift loses power and then is started up again,
the number 7 is ashing on the control board display. Unlocking is done
by turning operating power Off/On using the cabin switch (CS).
