General Maintenance
6.20

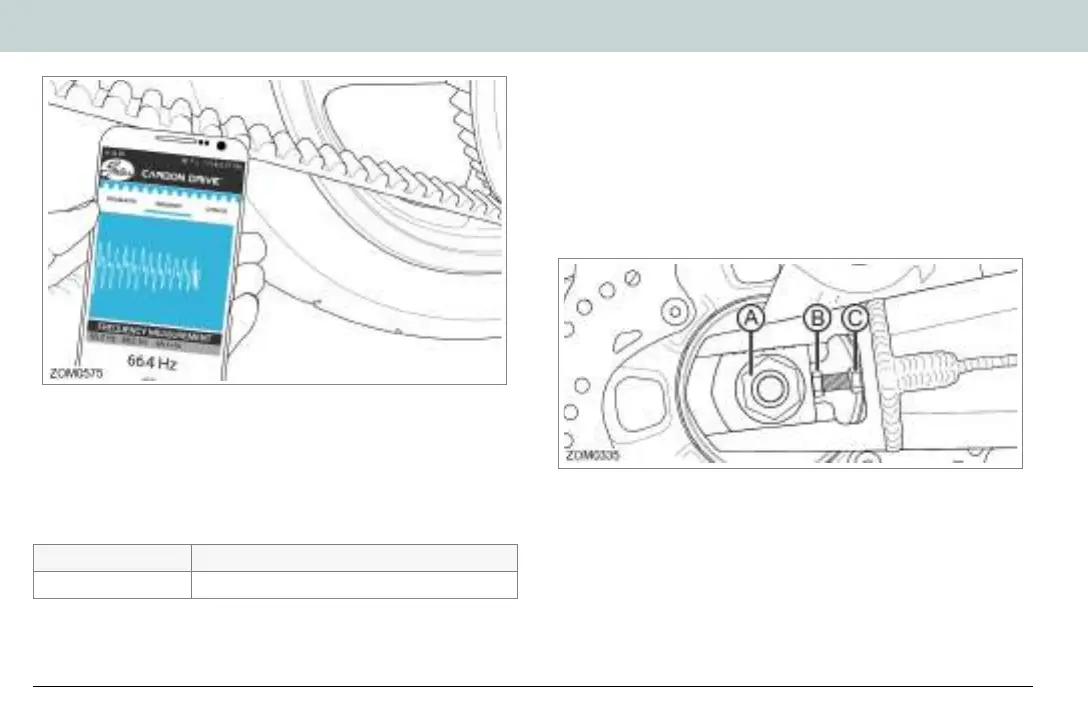

7. Rotate the rear wheel a quarter-turn and repeat the frequency
measurement.
8. Compare your belt’s frequency readings to the
recommended range values below.
9. Adjust drive belt tension if the frequency is outside the
recommended range.
Drive Belt Adjustment Procedure
Note: Adjust both sides (left and right) equally.
1. Remove key from the key switch.
2. Loosen the rear axle nut (A).
3. Loosen the (left and right) 13 mm jam nuts (C).
4. Turn the (left and right) 13 mm adjustment bolts (B) 1/4 turn
at a time until the belt adjustment is within specification.
5. Tighten left and right jam nuts (C) to secure the belt.
6. Tighten the axle nut (A).
7. Test ride the motorcycle.
8. Recheck the belt for proper adjustment after the test ride and
readjust, if necessary.
Belt Pitch Recommended Tension Range
11 mm 42.5 Hz to 73.6 Hz
