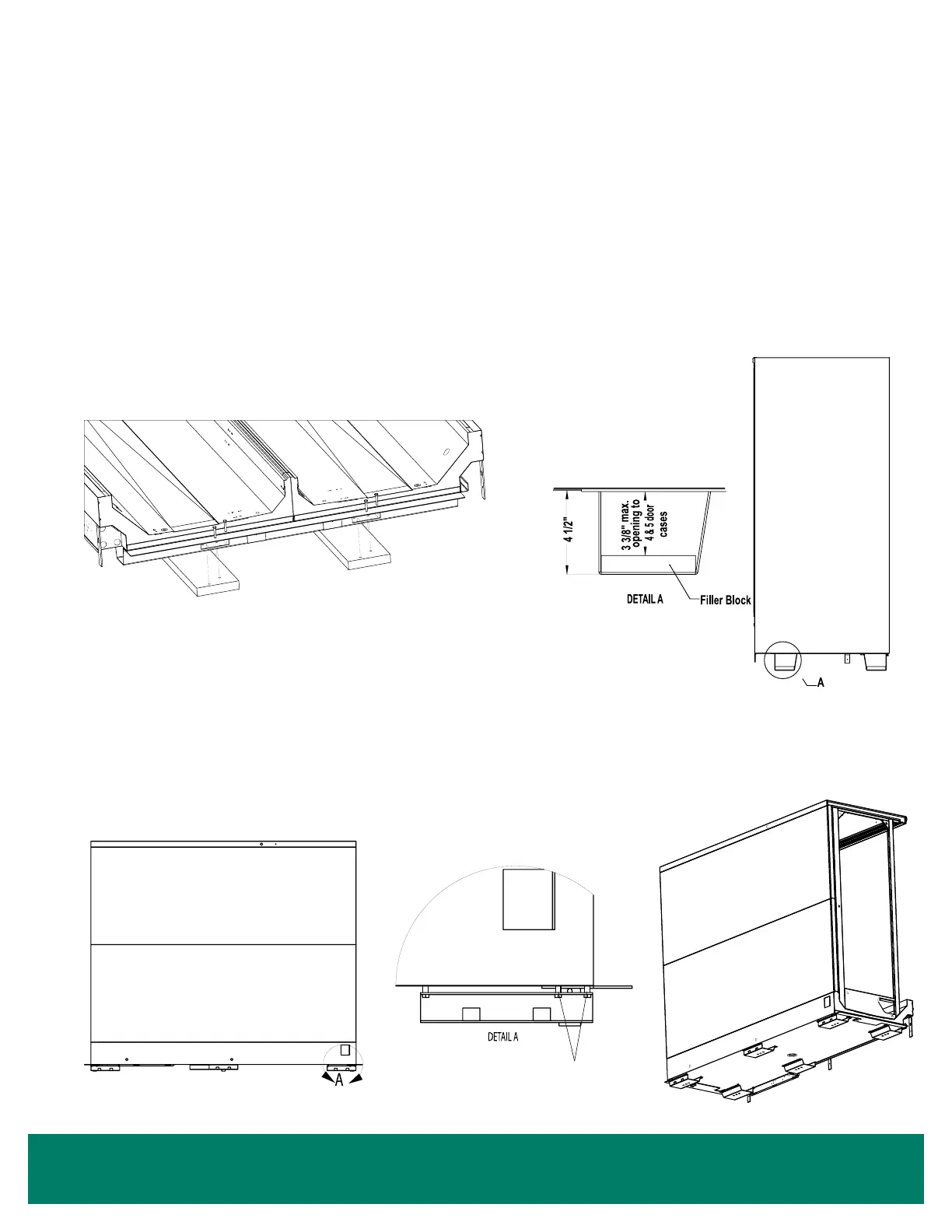

Figure 6: Removing Wood Planks
MOVING CASES
Spacer blocks are factory installed in the end bases of 4 and 5-door cases that use 4 ½" bases (Figure 7). These blocks limit the cases
forward tilt while it is being lifted and must be used when lifting 4 or 5-door cases with 4 ½" bases.
For low shipping height applications, Zero Zone has optional expandable bases. As shipped, the base is 1¾" tall. It is attached with
spacers that allow the base to slide away from the bottom of the case creating a gap that allows the use of a 1½" thick fork truck blade
(Figure 8).
Figure 7: Wood Block Inside Base
Spacers
Figure 8: Expandable Base
Moving Cases • 11
