DESCRIPTION
BOLT HEX TAP 1/4-20 x 3-1/2" HEX HD BOLT, GRD 8
NUT HEX 1/4-20 GRD 8
WASHER 9/32" ID 1-1/4" OD .093TK FNDR
SCREW #10 X 1.0" PH FLTHD SMSZP (FRAME)
ADD FOR JOINING KIT
GALV. SHIM 2" X 6" (LEVELING CASE)
QTY
(5 )
(5 )
(10 )
(4 )
(25 )
ITEM
1
2
3
4
5
SP-1097 REV C
-
+
-
+
-
+
-
+
-
+
-
+
ZZ PART NO.
64-0406
64-0308
64-0199
64-0269
ZZ PART NO. BLACK
64-0406-P1
64-0308-P1
64-0199-P1
64-0269-P1
2-1/2" INSULATED DIVIDER JOINING KIT WITH THRU BOLTING
VZ TO VC VC TO VZ VZT2 TO VCT2 OR VCT2 TO VZT2
1) CAULK CASE JOINTS FOLLOWING SP-0420 TECH BULLETIN
CASE JOINING AND SEALING NSF FIELD CAULKING.
2) ALIGN OPPOSITE ENDS OF TWO CASES TO BE JOINED.
3) THERE ARE 5 BOLTS ATTACHING THE DIVIDER TO THE
CASE. REPLACE EACH OF THESE BOLTS ONE AT A TIME.
DO NOT REMOVE DIVIDER FROM CASE.
3a) REMOVE ONE BOLT AND ONE WASHER USED TO
ATTACH 2-1/2" INSULATED DIVIDER PANEL.
3b) INSTALL ONE LONGER (ITEM 1) 1/4-20 X 3-1/2" GRADE
8 BOLT AND ONE (ITEM 3) WASHER IN THE SAME
LOCATION AND ORIENTATION OF THE ORIGINAL BOLT.
3c) TIGHTEN TO SECURE INSULATED DIVIDER. THE BOLT WILL
TIGHTEN TO THE PANEL AND THE END OF THE BOLT WILL
EXTEND THRU INTO THE NEXT CASE.
3d) REPEAT UNTIL FIVE BOLTS HAVE BEEN REPLACED.
4) HAND TIGHTEN ITEM 3) WASHERS AND (ITEM 2) GRADE 8
NUTS ON OPPOSITE CASE.
5) MAKE SURE INSULATED DIVIDER IS ALIGNED WITH CASE.
6) ALTERNATELY TIGHTEN EACH BOLT EQUALLY UNTIL THE
CASES ARE JOINED TOGETHER EVENLY FORMING A TIGHT
SEAL BETWEEN THE DIVIDER AND THE CASE. BOLTS ARE
NOT DESIGNED TO PULL CASES TOGETHER.
7) FINISH ATTACHMENT OF THE SECOND CASE FRAME WITH
FOUR (ITEM 4) SCREWS.
6.500
5.500
3
2
3
1
CASE
DIVIDER
CASE

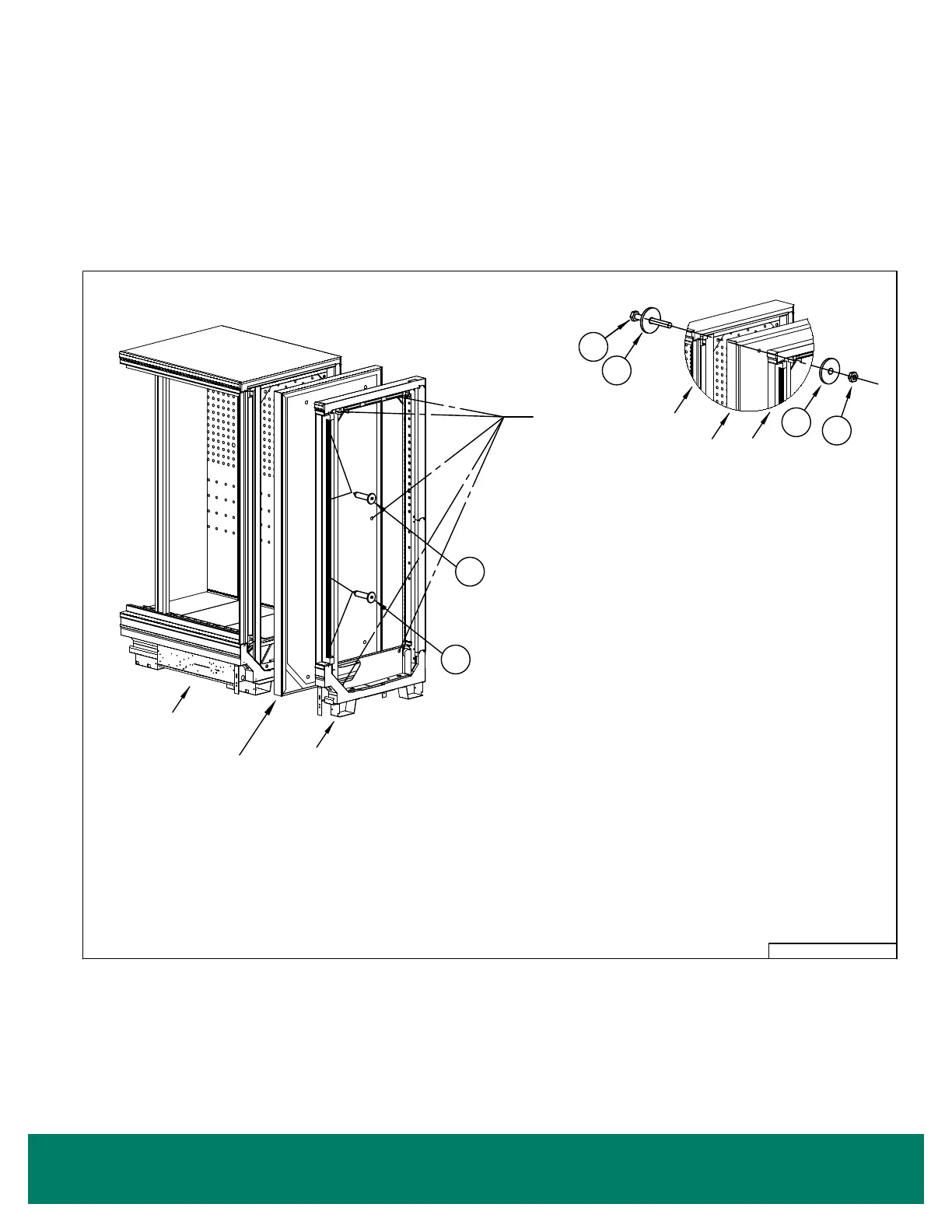

BOLT DETAIL FOR
RIGHT INSUL DVDR
LEFT OPPOSITE
2-1/2" INSULATED DIVIDER
(RIGHT SHOWN, LEFT OPPOSITE)
(FACTORY INSTALLED)
4
4
CASE
CASE
