Zerova DB Series - Installation Procedures; Concrete Base Preparation

14
STEP 1.

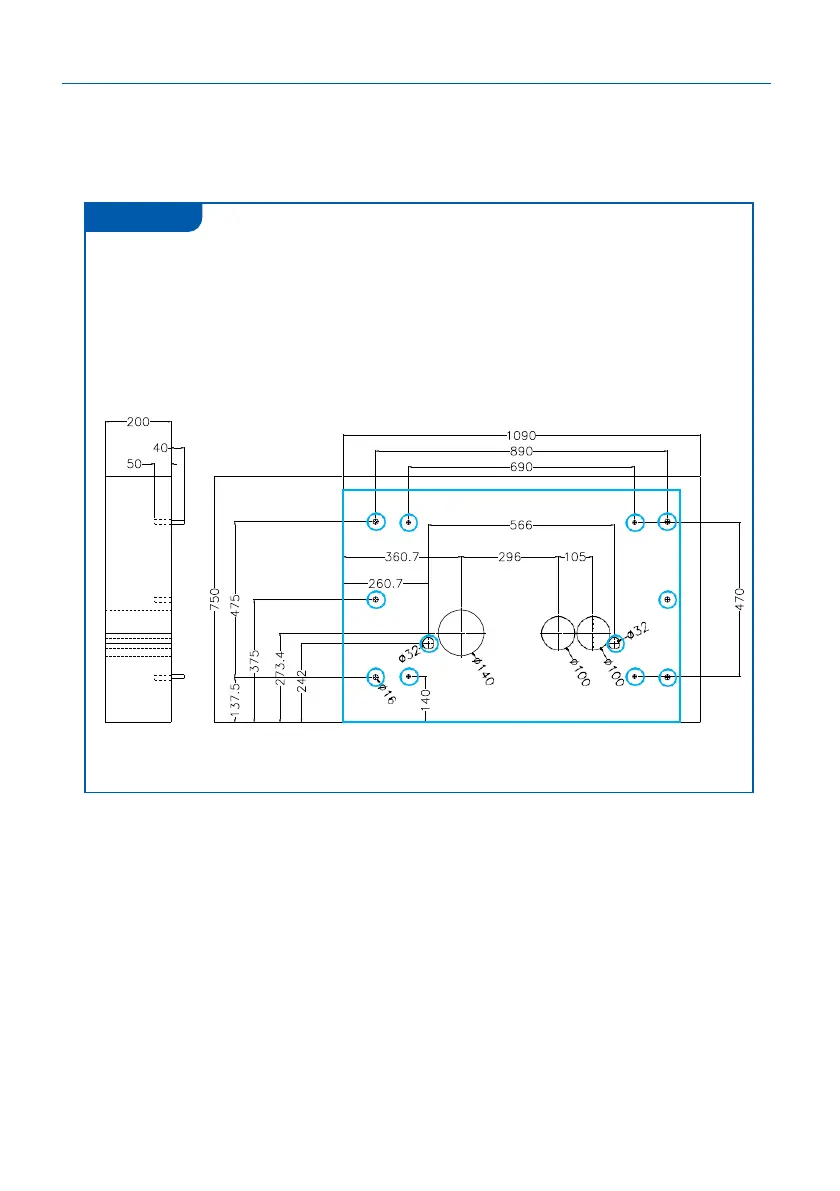

1. Build 1090mm x 750mm x 200mm concrete base in advance;
Φ
140mm
conduit for input ,
Φ
100mmx2 conduit for output DC cable,
Φ
32mm for
communication cable (Ethernet)and 1
”
drain pipe.
2. Recommend to use a prefabricated steel mould for constructing the
cement concrete base per dimensions provided below.
Front
3.5 Installation Procedure
3.5.1 Build Concrete Base
