22

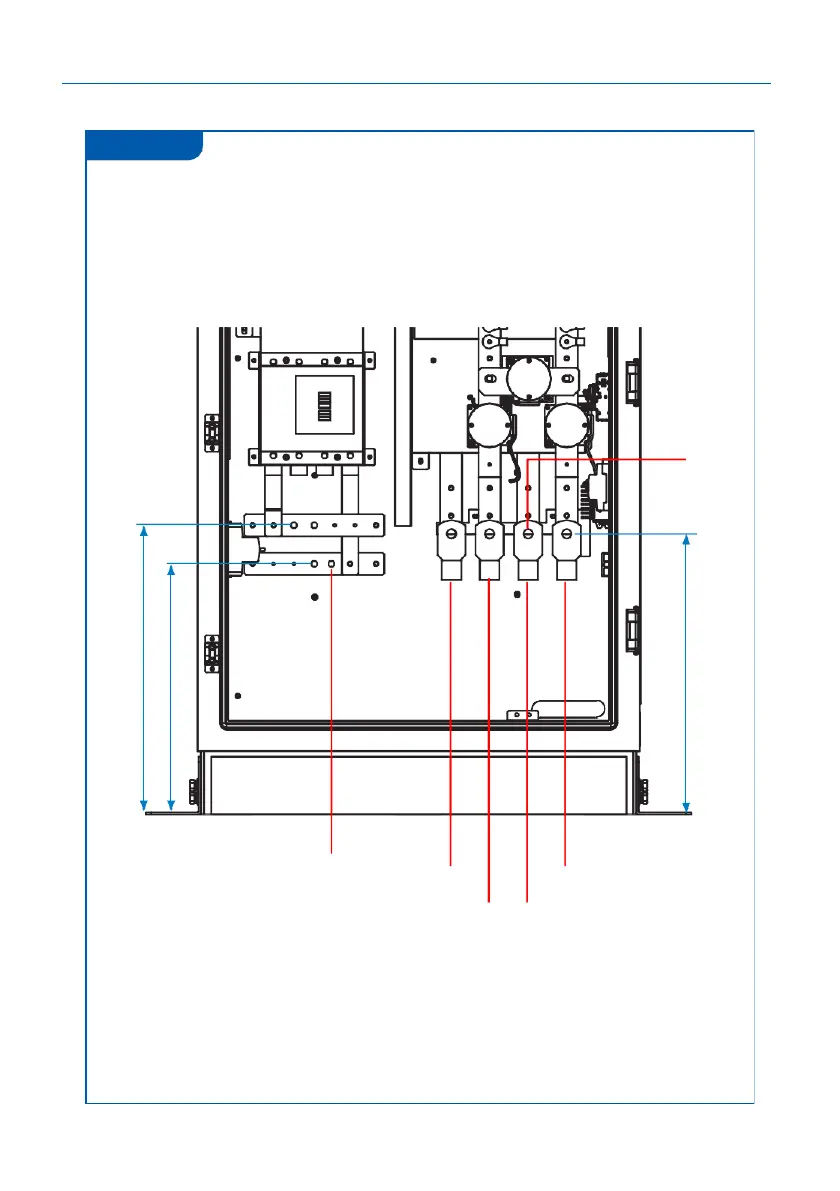

STEP 6.
3-2 Prepare the Charging cable, DC+ & DC- 2 cables with ring terminals for
M16 scr ew , PE cable with ring terminal for M6 screw.
3-3 Connect the charging cable #1~#2 from power dispenser to output
terminal socket #1~#2.
M16
M10
Gun1 DC+
Gun1 DC-
Gun1 DC-
Gun2 DC+
520mm
450mm
510mm
