STEP 5.

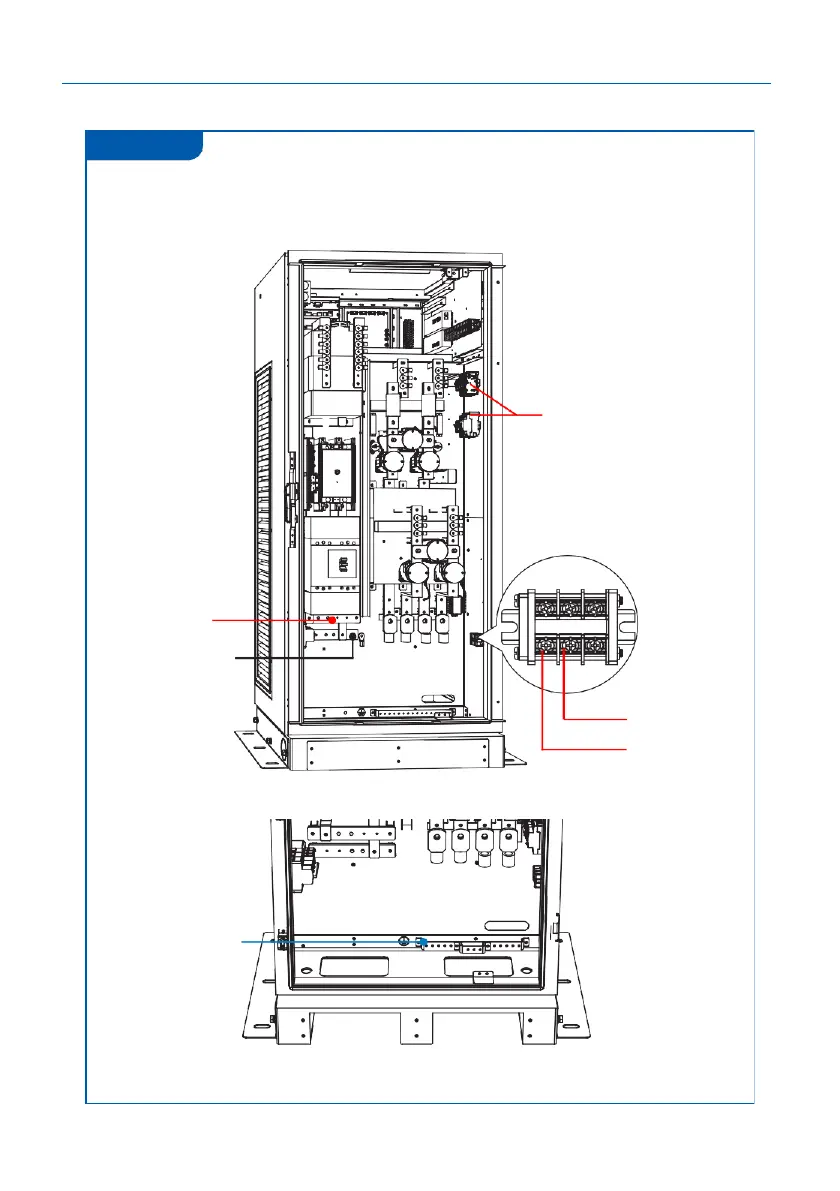

3-1 Connect the PE wire-Green with yellow to Grounding position of EVSE ;
fasten the input power wires to input terminal block of EVSE .Connect DC+ and
DC- wire.
AC Break
DC+(UP)
DC-(DOWN)
L N PE
AC IN: N
AC IN: L1
PE:Yellow/Green
