ELECTRO-HYDRAULIC SYSTEM
F_02_172
FIELD OPERATION

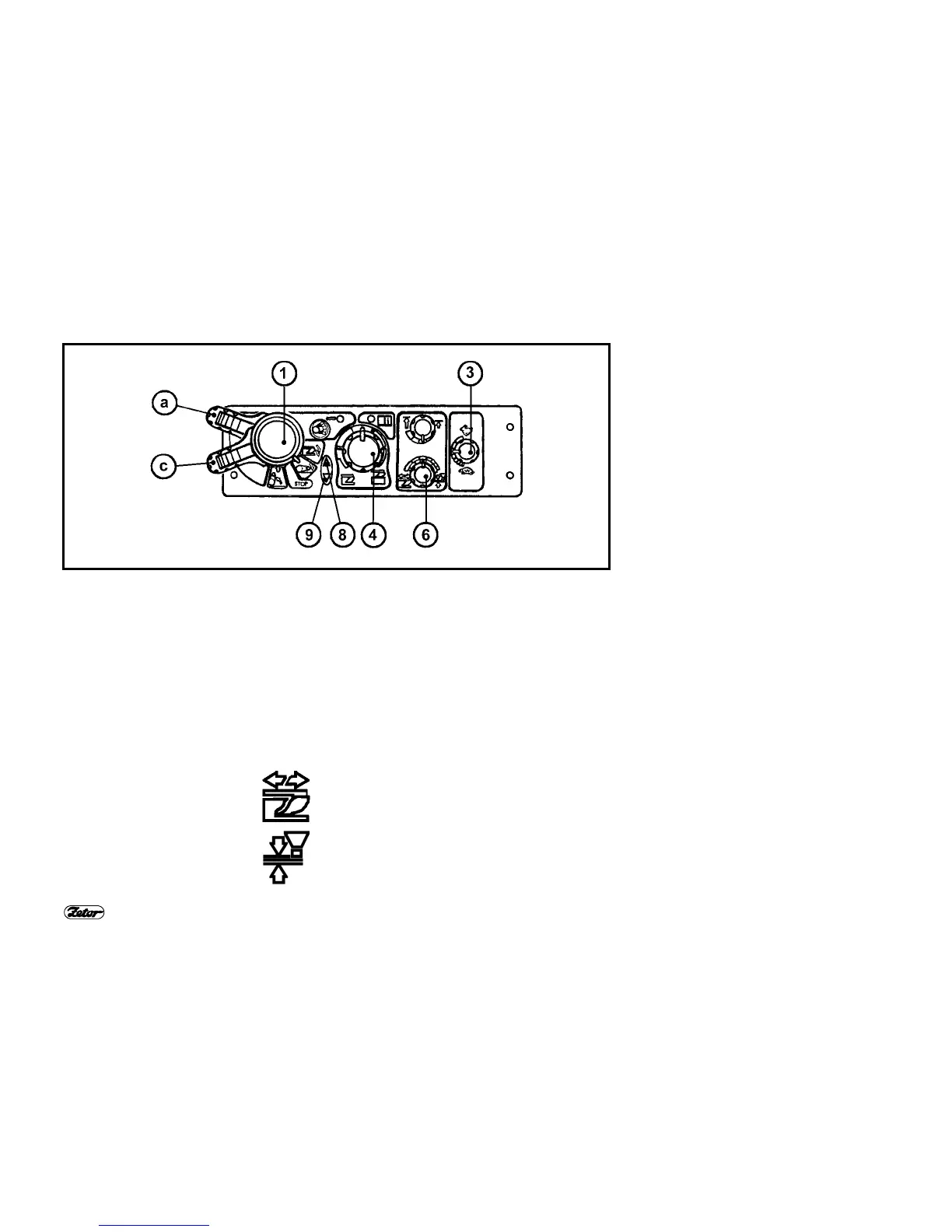

First proceed as indicated in the
”Blocking cancellation” chapter and set
up the required positions of elements in
accordance with the character of the job
to be carried out. To get the required
depth of the implements, make use of
the controller (4). For setting the re-
sponse of the system, utilize the con-
troller (6).
Symbol of dynamometric
regulation
Symbol of positional regu-
lation
The regulating operations (lifting and
lowering) can be monitored with indi-
cating diodes (8) and (9). At the head-
land shift the lever (1) to the position "a",
and after turning the tractor, shift it back
to the position "c". The regulating system
occupies the preceding working position
(plowing memory). The controller (3)
serves for setting up the required lower-
ing rate.
