90
HYDRAULIC EQUIPMENT
E417
ADDITIONAL HYDRAULIC
DISTRIBUTOR
The distributor is located on the right
side of the tractor under the cabin. It is
delivered with two sections; each section
has four positions with a floating position
and controls two pressure outlets (quick-
couplings) marked:
"3", "4" section 1
"5", "6" section 2

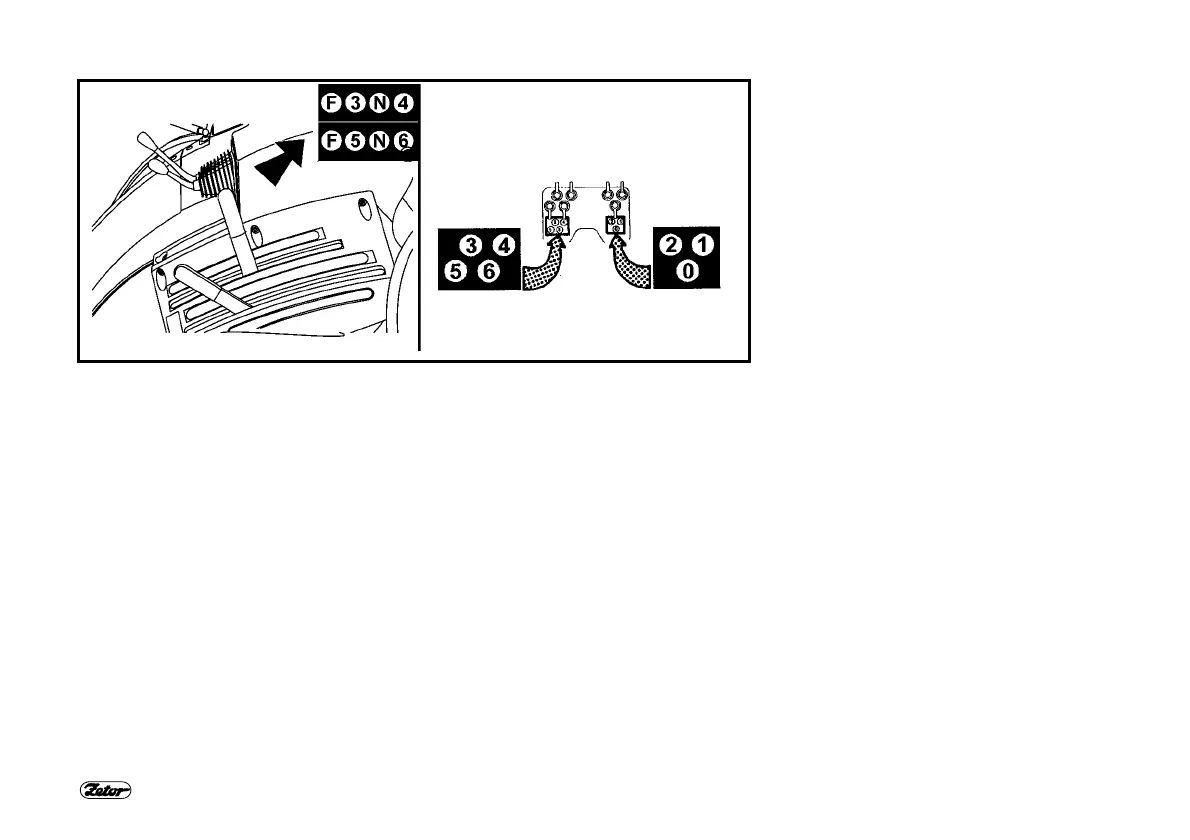

Control levers of the sections are located
in the cabin on the mudguard of the right
rear wheel.
Tin addition to the floating position, the
additional distributor section, serving
quick-couplings "3“ and "4“, is provided
with arrestments for both working (pres-
sure) positions with hydraulic protection
16
+1.5
MPa.
The outlet “4“ is also provided with a
backflow valve that is used for connec-
tion of a working branch of the mecha-
nism, where better tightness is required
to ensure minimum drop of the imple-
ment, e.g. during a transport.
