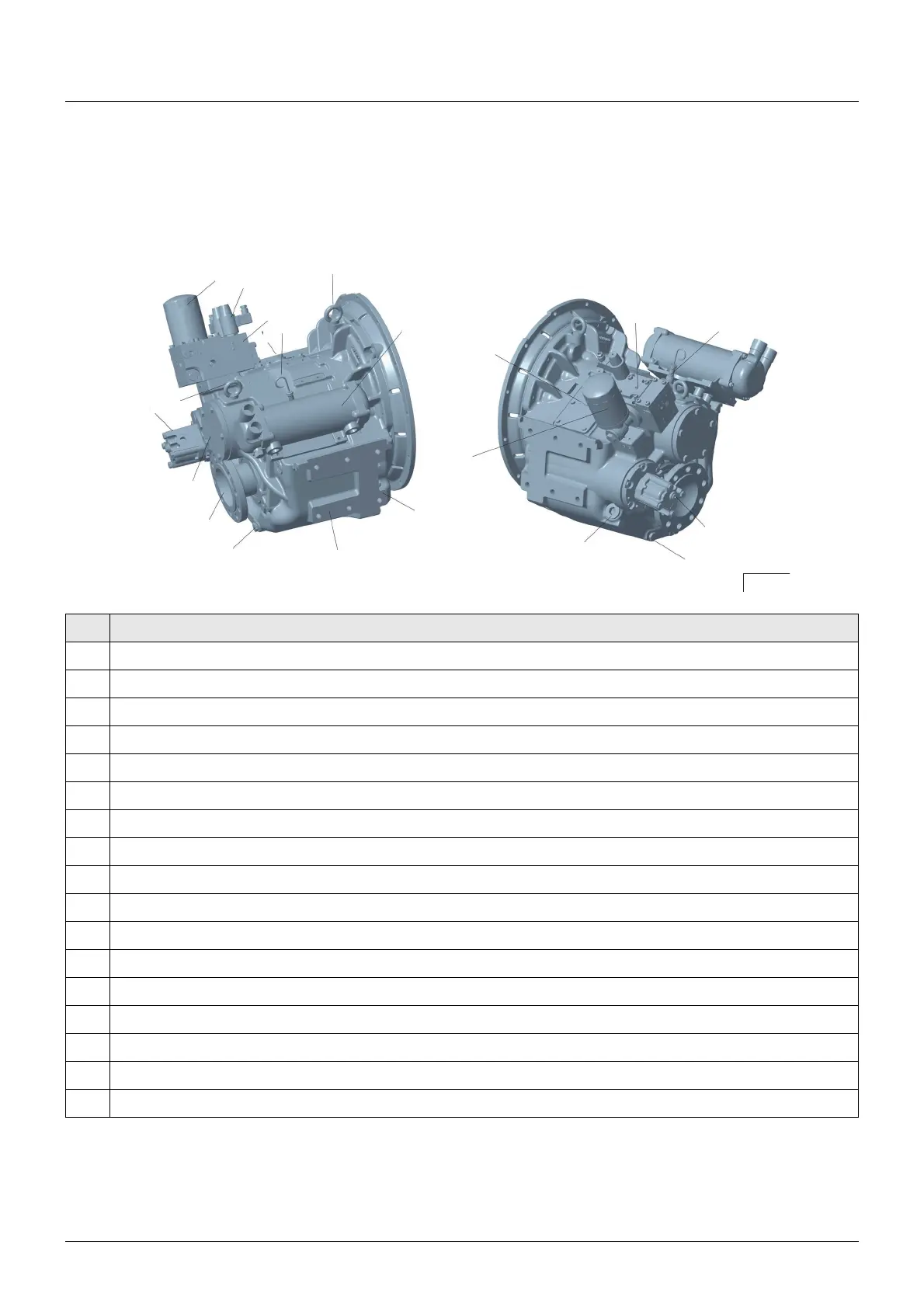

1.6 Main subgroups
1.6.1 ZF 400 A
POS. DESCRIPTION
1PTO cover
2Output shaft
3Drain plugs
4Rear half-carcass
5Front half-carcass
6 Heat exchanger
7Lifting eyebolt
8 Level rod
9 Oil control block
10 Solenoid valve
11 Oil filter
12 Oil pump
13 Mesh filter
14 Load plug
15 Pressure socket
16 Bleed
17 M14x1.5 plug
ZF 400 A
15
16
17
3
3
7
2
1
4
5
6
7
8
9
13
11
14
12
14
10
11
Fig. 4
