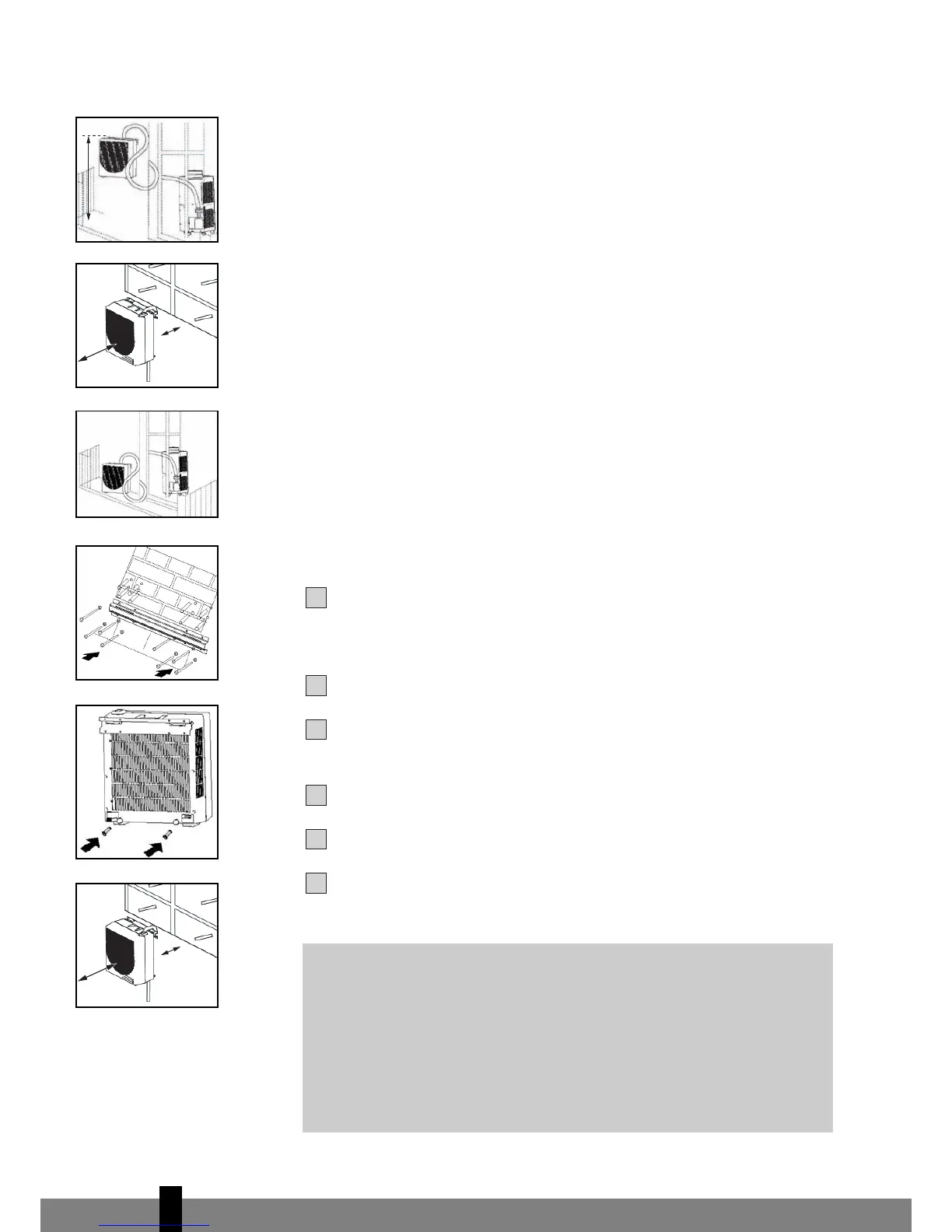

I
NSTALLATION OF THE OUTDOOR UNIT
The outdoor unit can be placed on the floor (of a balcony) or hung on a wall. The
location for the outdoor unit has to be well ventilated (to exhaust heat) and
reachable from the indoor; such as under a window, on a veranda or in a corridor.
The outdoor unit does not necessarily have to be mounted to the bracket. The
m
aximum distance from the top of the outdoor unit to the floor is 150 cm.
Please keep a distance of at least 5 cm between the outdoor unit air inlet and wall
or other objects and a distance of at least 120 cm between the outdoor unit
exhaust air outlet and wall or other objects to ensure proper air circulation. If
possible, put the outdoor unit in the shade.
Condensated water will be evaporated by the outdoor unit. Excessive humidity
can create a water flow through the outdoor unit. Take care of proper water
drainage to avoid leaking of water to inconvenient places. Ensure that the
outdoor unit is positioned upright and on a level surface.
A. Placing the outdoor unit just outside.
The outdoor unit can be set on the floor or on any other surface. Ensure that
water can be drained from the outdoor unit.
B. Hanging the outdoor unit on a wall.
Drill eight holes in the wall where the outdoor unit has to be mounted
(Note: The maximum distance from the top of the outdoor unit to the floor
is 150 cm).
Firmly screw the mounting bracket M to the wall.
Make sure that the two spacers are mounted on the lower part of the
outdoor unit keeping the unit vertically parallel to the wall.
Hang the outdoor unit.
To avoid damaging the connection tube, leave the window ajar.
Close the window or door as much as possible to prevent outside air from
entering the room.
G
WARNING
• The air must flow freely through the outdoor unit. Any blockage can
lead to damage or improper operation of the air conditioner.
• Take care to prevent any bow or bend in the connection tube.
•
The condensation water must flow fr
eely
. Blockage of the drainage
tube can result in water leakage or improper operation of the unit.
A
void leakage/flowing fr
om water to inconvenient places.
•
Be awar
e for danger caused by falling of the outdoor unit.
