5.8 Analog input “E1” for setting fan speed
The device has an analog input for setting the fan speed, connection to “E1”-“GND” (Analog In 1).
The factory setting for the input is configured for a 0...10 V speed setting signal. For a 0...20 mA signal
or a PWM signal an adaption with internal jumpers is required.
Depending on the size of the device (see type designation), observe the following options for setting
the speed.
Danger due to electric current
•
Do not replug the jumper under voltage, observe the safety instructions!
•
Make sure the signal has the correct polarity!
•
Never apply line voltage to analog inputs!

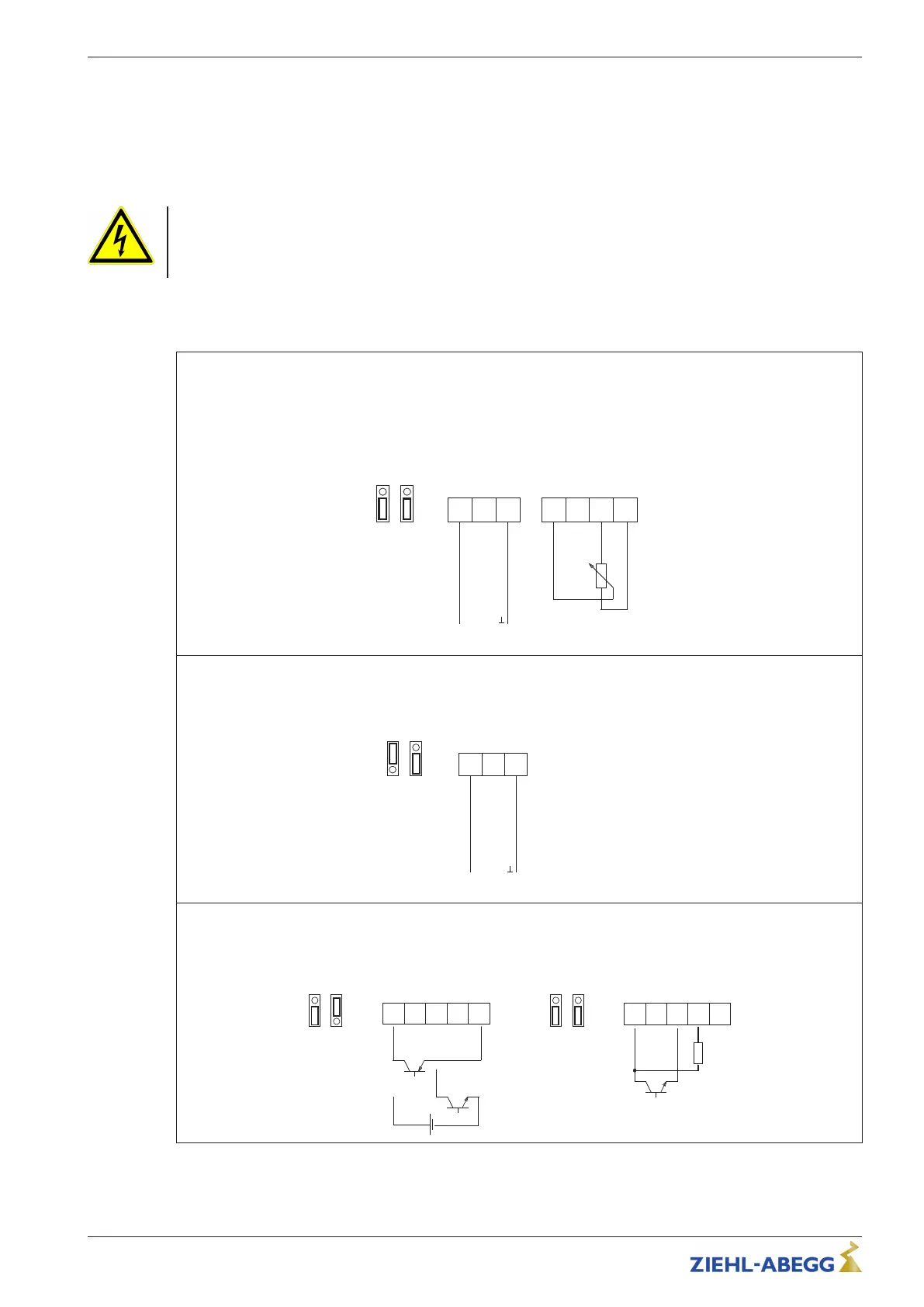

Options for speed setting for types FSDM2.5...16
0...10 V (factory setting)
Control via external setting signal 0...10 V
or
Speed setting by external potenziometer (10 kΩ) at terminals “+10 V” and “GND” pick of-off at terminal “E1”.
E1 D1 GND
0...10 V
+
Analog In 1
E1,1 E1,2
V
E1 D1 GND 10V
Analog In 1 10 V DC Out
10 kΩ
30.08.11
i_jumper_if_basic_0_10v.eps
0...20 mA
Control via external setting signal 0...20 mA
E1 D1 GND
0...20 mA
+
Analog In 1
E1,1 E1,2
mA
31.01.12
i_jumper_if_basic_0_20
0...100 % PWM
Control via external setting signal PWM
E1,1 E1,2
PWM
E1 D1 GND 10V
Analog In 1 10 V DC Out
31.01.12
i_jumper_if_basic_pwm.eps
24V
24 V DC Out
24 V
15...28 V
+
-
GND
E1
E1,1 E1,2
PWM
(10 V)
E1 D1 GND 10V
Analog In 1 10 V DC Out
24V
24 V DC Out
PWM
f = 1...10 kHz
10 kΩ
